87-50BM01 - Toro 50" Grader Blade (1978) MID-MOUNT GRADER BLADE-40 IN.(102 CM)(VEHICLE IDENTIFICATION NUMBER 87-40BM01) Parts Diagram

50" Grader Blade

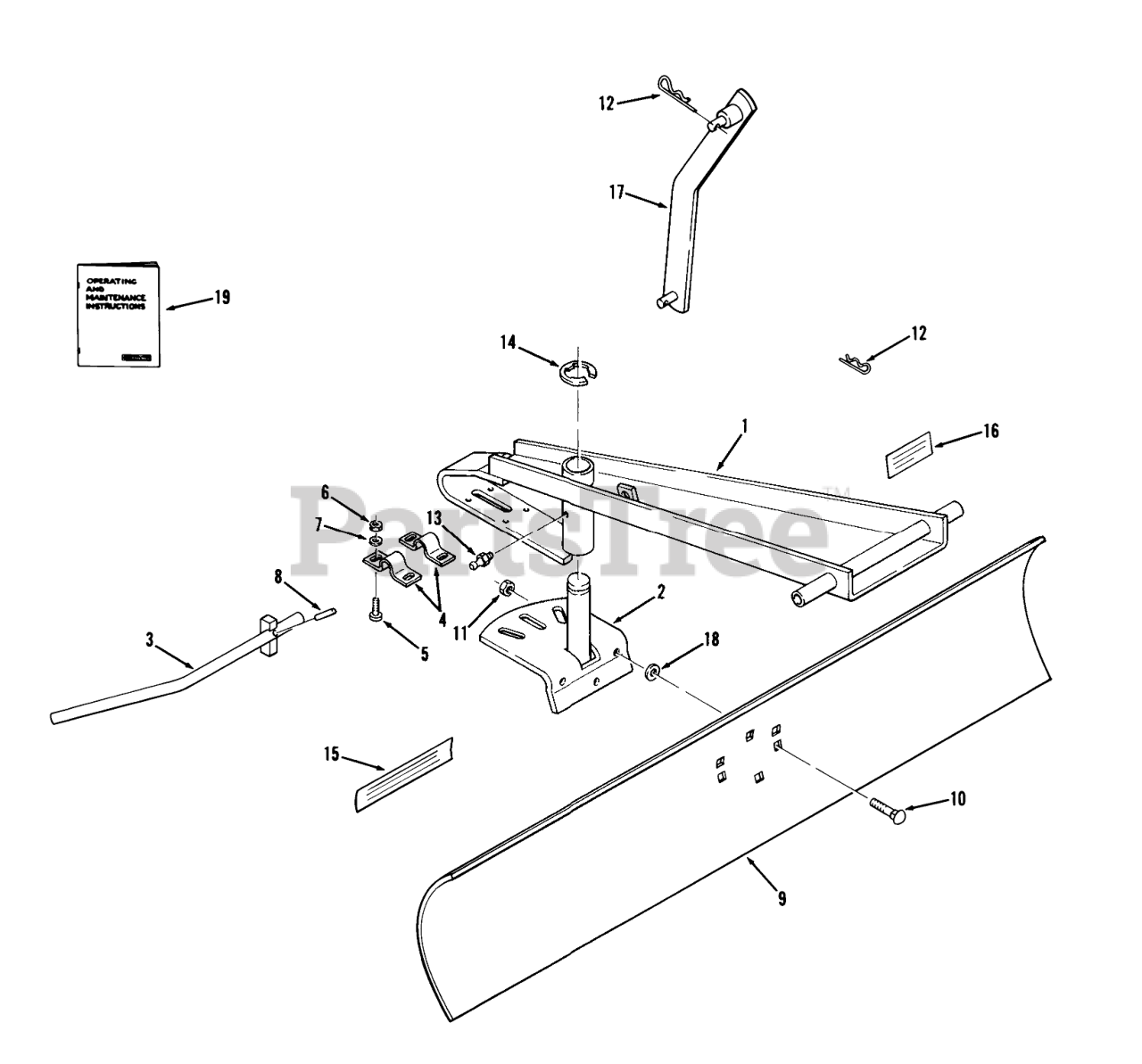

MID-MOUNT GRADER BLADE-40 IN.(102 CM)(VEHICLE IDENTIFICATION NUMBER 87-40BM01) Parts Diagram

  • Title

1

Toro 8835

Frame Assembly

$

$

Not available

2

Toro 8838

Blade Support

$

$

Not available

3

Toro 101905

Rod-Angle Adjustment

$

$

Not available

4

Toro 6532

Bracket

$

$

Not available

5

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

6

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0

7

Toro 920205

WASHER

$

$

Not available

8

Toro 933154

PIN-ROLL

$9.49

$

In Stock, only 1 left!

0

9

Toro 5680

Blade

$

$

Not available

10

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

11

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

12

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

13

Toro 1030

Zerk

$

$

Not available

14

Toro 5700

E RING

$4.49

$

Usually ships in 3-6 days

0

15

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

16

Toro 103631

Caution Decal

$

$

Not available

17

Toro 104357

Lift Link

$

$

Not available

18

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

19

Toro 803727R1

Operating and Maintenance Instructions

$

$

Currently unavailable
