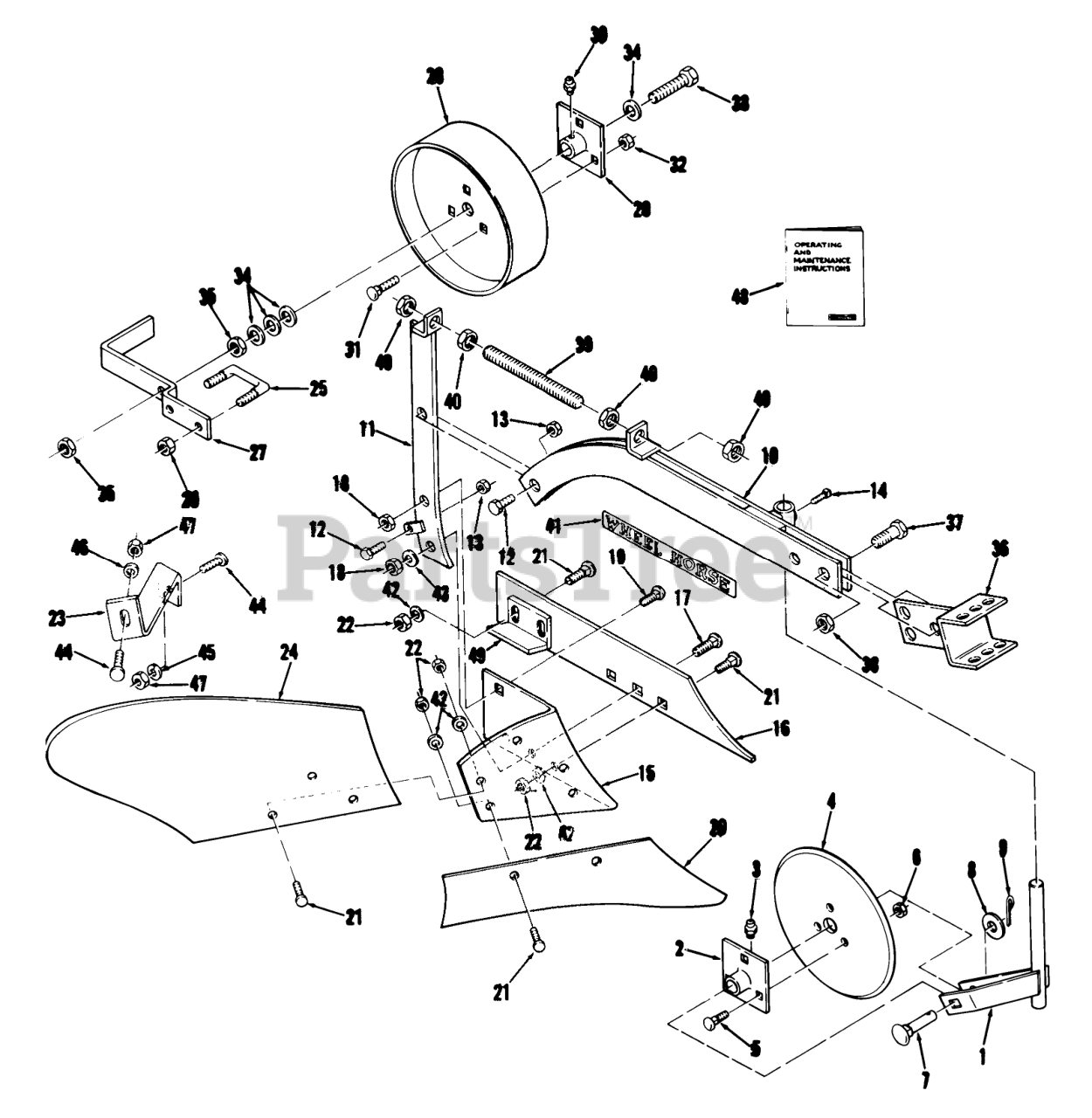

87-08PL01 - Toro 8" Plow Attachment (1978) MOLDBOARD PLOWS VEHICLE IDENTIFICATION NUMBERS 87-08PL01, 8 IN. (20.3 CM) & 87-12PL01, 12IN. (30.5 CM) Parts Diagram

8" Plow Attachment

MOLDBOARD PLOWS VEHICLE IDENTIFICATION NUMBERS 87-08PL01, 8 IN. (20.3 CM) & 87-12PL01, 12IN. (30.5 CM) Parts Diagram

  • Title

1

Toro 226092

Fork Assembly

$

$

Not available

2

Toro 226093

Hub Assembly

$

$

Not available

3

Toro 226004

Grease Fitting

$

$

Not available

4

Toro 226094

Coulter Blade

$

$

Not available

5

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

6

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

7

Toro 226095

BOLT-CARR BLANK

$

$

Not available

8

Toro 920043

Washer 5/8 U.S.

$

$

Not available

9

Toro 932009

Cotter Pin
(Superseded to 3272-9)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 226096

Beam Assembly

$

$

Not available

11

Toro 226097

Standard Assembly

$

$

Not available

12

Toro 908060

H H C S
(Superseded to 325-7)

$1.99

$

In Stock, Qty 5

0

13

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

14

Toro 909554

Screw-Set
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 13

0

15

Toro 226098

Frog

$

$

Not available

15

Toro 226100

12" Landslide

$

$

Not available

17

Toro 901656

Plow Bolt 1/2-13 x 2

$

$

Currently unavailable

18

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

19

Toro 900114

CARRIAGE BOLT -4

$

$

Not available

21

Toro 226102

12" Share

$

$

Currently unavailable

21

Toro 901644

Plow Bolt 7/16-14 x 1 1/4

$

$

Currently unavailable

22

Toro 915114

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

23

Toro 226103

Brace

$

$

Not available

23

Toro 226105

12" Mold Board

$

$

Not available

25

Toro 226106

Special "U" Bolt

$

$

Not available

26

Toro 915667

E.S. Nut 5/8-11

$

$

Not available

27

Toro 226107

Gage Wheel Brace

$

$

Not available

28

Toro 226108

Gage Wheel Assembly

$

$

Not available

29

Toro 226093

Hub Assembly

$

$

Not available

30

Toro 226004

Grease Fitting

$

$

Not available

31

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

32

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

33

Toro 908095

Hex Bolt 5/8-11 x 4 1/2

$

$

Not available

34

Toro 920043

Washer 5/8 U.S.

$

$

Not available

35

Toro 915240

Jam Nut 5/8-11

$

$

Not available

36

Toro 226109

Yoke Assembly

$

$

Currently unavailable

37

Toro 908088

Bolt
(Superseded to 327-6)

$13.99

$

In Stock, only 1 left!

0

38

Toro 915117

NUT

$6.99

$

Usually ships in 3-6 days

0

39

Toro 226110

Rod

$

$

Not available

40

Toro 915240

Jam Nut 5/8-11

$

$

Not available

41

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

42

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

43

Toro 920041

Washer
(Superseded to 3256-6)

$0.99

$

In Stock, Qty 20+

0

44

Toro 901644

Plow Bolt 7/16-14 x 1 1/4

$

$

Currently unavailable

45

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

46

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

47

Toro 915114

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

48

Toro 803719R1

Operating and Maintenance Instructions

$

$

Currently unavailable

49

Toro 226133

Bracket

$

$

Currently unavailable
