87 (0340034U) - International Harvester 28" Riding Mower (1975 & After) Mower Main Frame & Knife Unit Parts Diagram

28" Riding Mower

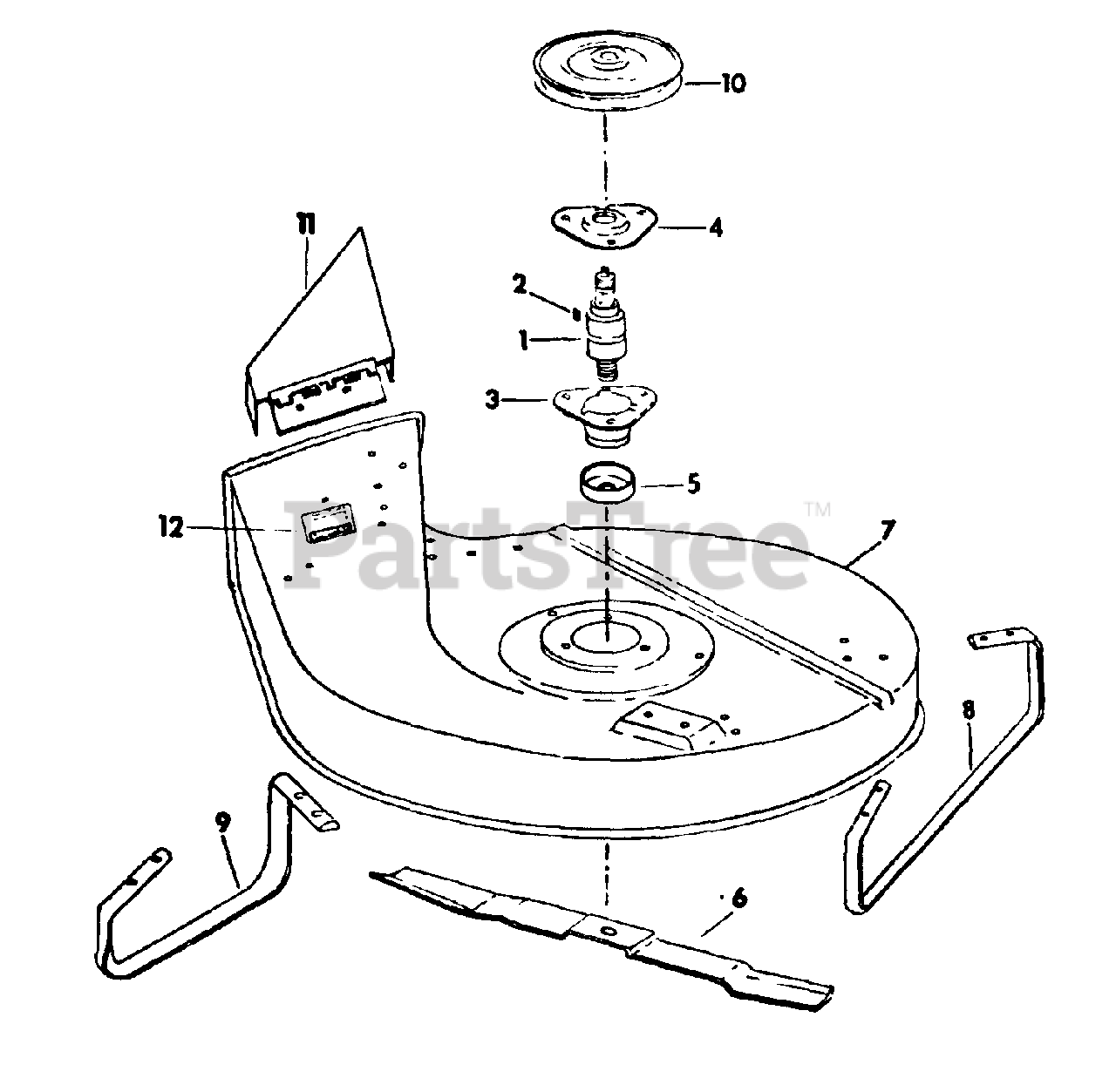

Mower Main Frame & Knife Unit Parts Diagram

  • Title
1

Cub Cadet IH-ST744

BEARING, BALL AND FAN TYPE

$

$

Not available

2

Cub Cadet IH-218211

KEY, 1/4 X 3/4 WOODRUFF 91
(Superseded to 914-0135)

$

$

Not available

3

Cub Cadet IH-492106-R1

HOUSING, SPINDLE
(Superseded to 903-0117)

$

$

Not available

4

Cub Cadet IH-492105-R1

CAP, SPINDLE HOUSING
(Superseded to 703-0115-0499)

$38.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-477796-R1

BOLT, 3/8 X 1 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120382

WASHER, 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet IH-492108-R1

CUP, SPINDLE
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

6

Cub Cadet IH-549124-R2

BLADE, 28 IN. MOWER

$

$

Not available

6

Cub Cadet IH-62452-C1

BLADE 28 IN. MOWER -COATED EDGE-

$

$

Not available

Cub Cadet IH-615168-R1

WASHER, 25/32 X 1-1/2 X 11 GA

$

$

Not available

Cub Cadet IH-219753

NUT, 3/4-16 HEX JAM
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 7

0

7

Cub Cadet IH-549119-R3

HOUSING, PRODUCT GRAPHIC, 57 801 C2, 28 IN. MOWER

$

$

Currently unavailable

8

Cub Cadet IH-549121-R1

RUNNER, LH MOWER

$

$

Not available

Cub Cadet IH-160688

SCREW, 5/16 X 3/4 ZNP P/HDCR MACH
(Superseded to 710-0323)

$4.99

$

In Stock, only 2 left!

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet IH-549122-R1

RUNNER, RH MOWER

$

$

Not available

Cub Cadet IH-160688

SCREW, 5/16 X 3/4 ZNP P/HDCR MACH
(Superseded to 710-0323)

$4.99

$

In Stock, only 2 left!

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet IH-549123-R1

PULLEY, CENTER

$

$

Not available

11

Cub Cadet IH-106475-C1

DEFLECTOR ASSY, 28 IN. MOWER

$

$

Not available

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

12

Cub Cadet IH-57801-C2

PRODUCT GRAPHIC, CAUTION

$

$

Not available
