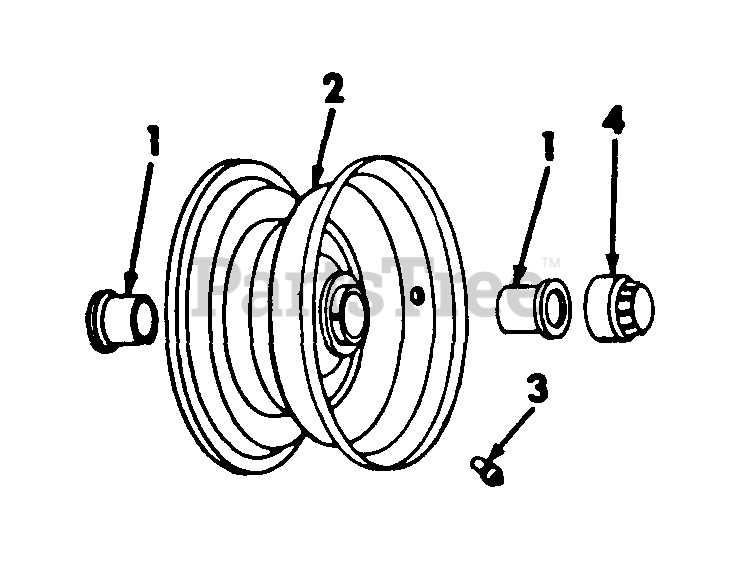

87 (0340034U) - International Harvester 28" Riding Mower (1975 & After) Front Wheels Parts Diagram

28" Riding Mower

Front Wheels Parts Diagram

  • Title

1

Cub Cadet IH-487302-R1

BUSHING, WHEEL
(Superseded to 741-3090)

$17.99

$

In Stock, Qty 5

0

2

Cub Cadet IH-490641-R1

WHEEL, FRONT

$

$

Not available

3

Cub Cadet IH-490643-R1

VALVE, TIRE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet IH-549093-R1

CAP, WHEEL HUB
(Superseded to 931-3020)

$8.99

$

In Stock, Qty 20+

0

Cub Cadet IH-490963-R1

WASHER, .765 X 1,920 X .060 -HUB CAP-

$

$

Not available

Cub Cadet IH-551658-R1

WASHER, 25/32 X 1-1/4 X 22 GA

Note: 4 OR AS REQUIRED PER WHEEL

$

$

Currently unavailable

Cub Cadet IH-121673

PIN, 7/16 X 1 COT.
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0
