87 (0340031U) - International Harvester 28" Riding Mower (1975 & After) Ignition & Starting (S/N 200600 & Above) Parts Diagram

28" Riding Mower

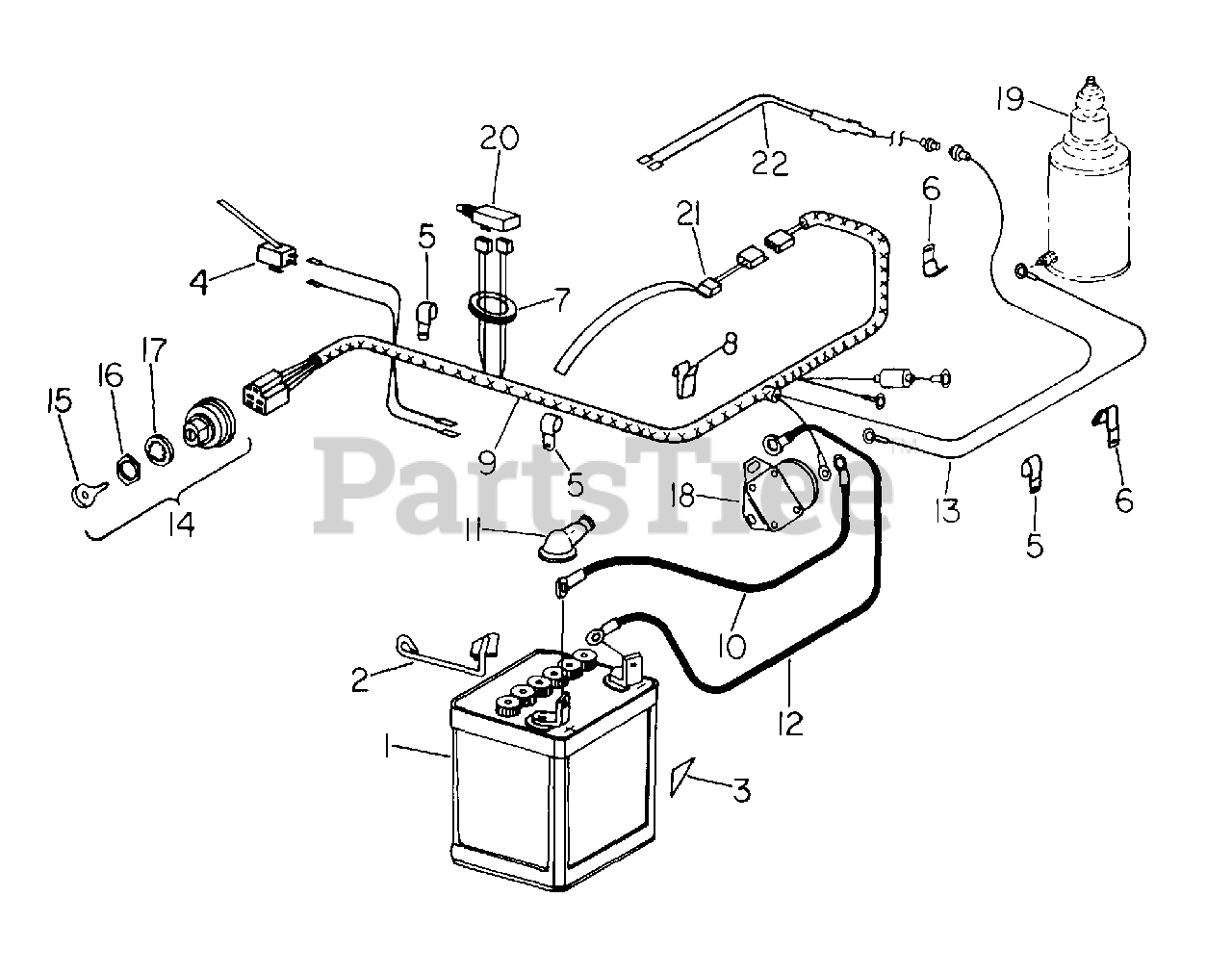

Ignition & Starting (S/N 200600 & Above) Parts Diagram

  • Title

1

Cub Cadet IH-STL-U2

BATTERY, LOW-MAINTENANCE -12 VOLT-

$

$

Currently unavailable

2

Cub Cadet IH-549092-R2

CLAMP ASSY, BATTERY

$

$

Not available

3

Cub Cadet IH-549632-R1

PAD, BATTERY

$

$

Currently unavailable

4

Cub Cadet IH-107147-C1

SWITCH, REVERSE CUT OUT
(Superseded to 925-3066)

$

$

Not available

5

Cub Cadet IH-384557-R1

CLIP, CABLE

$

$

Currently unavailable

Cub Cadet IH-180016

BOLT, 1/4 X 1/2 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-174916

WASHER, 1/4 EXT-INT TOOTH LOCK
(Superseded to 736-3006)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

6

Cub Cadet IH-395228-R1

CLIP, CABLE
(Superseded to 726-0175)

$

$

Not available

Cub Cadet IH-180016

BOLT, 1/4 X 1/2 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

7

Cub Cadet IH-376359-R1

GROMMET

$

$

Not available

8

Cub Cadet IH-395357-R1

CLIP, CABLE SPEED

$

$

Currently unavailable

9

Cub Cadet IH-83805-C1

HARNESS, CABLE

$

$

Not available

Cub Cadet IH-539399-R1

FUSE, 7.5 AMP

$

$

Not available

10

Cub Cadet IH-549634-R1

CABLE, BATTERY POSITIVE

$

$

Currently unavailable

Cub Cadet IH-16897-R1

BOLT, 5/16 X 3/4 CRG TYPE 1
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16 TYPE 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet IH-130825-C1

INSULATOR, BATTERY CABLE

$

$

Not available

12

Cub Cadet IH-549635-R1

CABLE, BATTERY GROUND

$

$

Not available

Cub Cadet IH-12653-R1

BOLT, 1/4 X 3/4 CRG TYPE 1

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

13

Cub Cadet IH-549636-R1

CABLE, SWITCH TO STARTER

$

$

Not available

14

Cub Cadet IH-107163-C92

SWITCH MAGNETO IGNITION AND STARTING
(Superseded to 925-3037)

$57.99

$

Usually ships in 3-6 days

0

15

Cub Cadet IH-62216-C1

KEY, IGNITION SWITCH
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

16

Cub Cadet IH-61791-C1

NUT, MAGNETO IGNITION KEY MOUNTING

$

$

Not available

17

Cub Cadet IH-138557

WASHER, MAGNETO IGNITION KEY MOUNTING

$

$

Currently unavailable

18

Cub Cadet IH-121613-C1

SWITCH, MAGNETIC
(Superseded to 925-3001)

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-114604

WASHER, 1/4 EXT PLN TOOTH LOCK
(Superseded to 936-0222)

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120367

NUT, 1/4-NF TYPE 5
(Superseded to 912-0138)

$

$

Not available

Cub Cadet IH-120217

WASHER, NO 10 LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, NO 10-NF MACH SCREW TYPE 1
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-453049

SCREW, 1/4 X 3/4 ZNP P/HDS MACH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

19

STARTING MOTOR

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF STARTER MOTOR

$

$

Not available

Cub Cadet IH-174916

WASHER, 1/4 EXT-INT TOOTH LOCK
(Superseded to 736-3006)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

20

Cub Cadet IH-107171-C1

SWITCH, NEUTRAL STARTING

$

$

Currently unavailable

Cub Cadet IH-120391

WASHER, .219 X .500 X .036
(Superseded to 736-0931)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-26208-R1

SCREW, NO 10NF X 3/8 H/WHD TAP

$

$

Currently unavailable

21

Cub Cadet IH-1254818-C1

SWITCH, SEAT

$

$

Not available

22

Cub Cadet IH-135461-C1

DIODE ASSY, TRI CIRCUIT

$

$

Not available
