87 (0340031U) - International Harvester 28" Riding Mower (1975 & After) Ignition & Starting (S/N 200599 & Below) Parts Diagram

28" Riding Mower

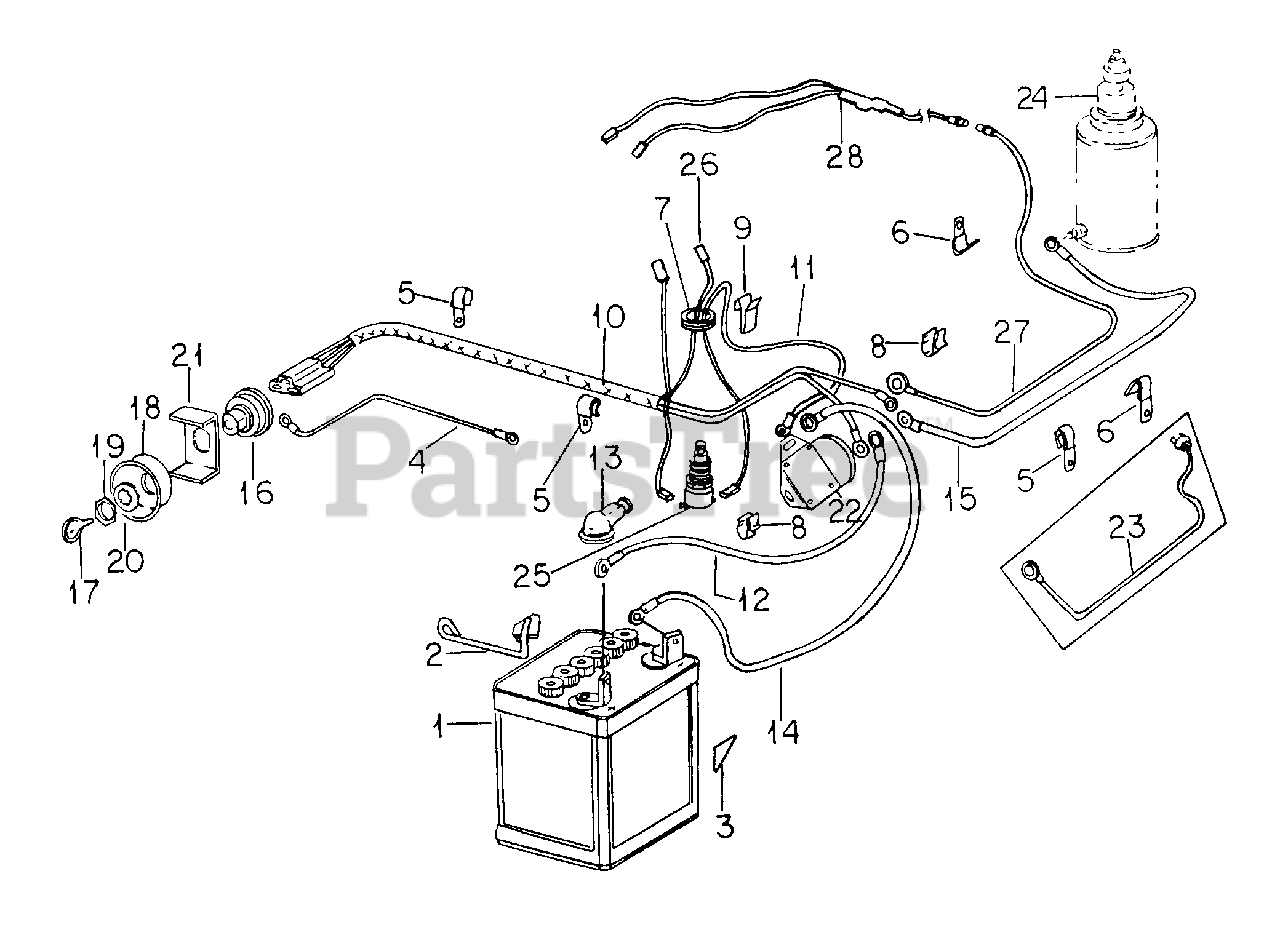

Ignition & Starting (S/N 200599 & Below) Parts Diagram

  • Title

1

Cub Cadet IH-STL-U2

BATTERY, LOW-MAINTENANCE -12 VOLT-

$

$

Currently unavailable

2

Cub Cadet IH-549092-R2

CLAMP ASSY, BATTERY

$

$

Not available

3

Cub Cadet IH-549632-R1

PAD, BATTERY

$

$

Currently unavailable

4

Cub Cadet IH-490192-R1

CABLE ASSY, SWITCH TO GROUND

Note: SERIAL NO. 48499 AND BELOW

$

$

Currently unavailable

4

Cub Cadet IH-62818-C1

CABLE ASSY, SWITCH TO GROUND

Note: SERIAL NO. 48500 AND ABOVE

$

$

Currently unavailable

5

Cub Cadet IH-384557-R1

CLIP, CABLE

$

$

Currently unavailable

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-174916

WASHER, 1/4 EXT-INT TOOTH LOCK
(Superseded to 736-3006)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

6

Cub Cadet IH-395228-R1

CLIP, CABLE
(Superseded to 726-0175)

$

$

Not available

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

7

Cub Cadet IH-376359-R1

GROMMET

$

$

Not available

8

Cub Cadet IH-491760-R1

CLIP. SPEED

Note: SERIAL NO. 48499 AND BELOW

$

$

Currently unavailable

9

Cub Cadet IH-395357-R1

CLIP, CABLE SPEED

$

$

Currently unavailable

10

Cub Cadet IH-61057-C1

HARNESS, CABLE

$

$

Not available

11

Cub Cadet IH-61058-C1

CABLE, PTO SWITCH TD MAGNETIC SWITCH

Note: SERIAL NO. & BELOW

$

$

Not available

12

Cub Cadet IH-549634-R1

CABLE, BATTERY POSITIVE

$

$

Currently unavailable

Cub Cadet IH-16897-R1

BOLT, 5/16 X 3/4 ZND SHORT SQ-NK CRG
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet IH-130825-C1

INSULATOR, BATTERY CABLE

$

$

Not available

14

Cub Cadet IH-549635-R1

CABLE, BATTERY GROUND

$

$

Not available

Cub Cadet IH-12653-R1

SCREW, 1/4-20 X 3/4 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

15

Cub Cadet IH-549636-R1

CABLE, SWITCH TO STARTER

$

$

Not available

16

Cub Cadet IH-488509-R1

SWITCH MAGNETO IGNITION AND STARTING

Note: SERIAL NO. 48499 AND BELOW

$

$

Not available

16

Cub Cadet IH-107163-C92

SWITCH MAGNETO IGNITION AND STARTING
(Superseded to 925-3037)

Note: SERIAL NO. 48500 AND ABOVE

$57.99

$

Usually ships in 3-6 days

0

17

Cub Cadet IH-131313-C1

KEY, IGNITION SWITCH
(Superseded to IH-131313-C2)

Note: SERIAL NO. 48499 AND BELOW

$12.99

$

In Stock, only 2 left!

0

17

Cub Cadet IH-62216-C1

KEY, IGNITION SWITCH
(Superseded to 925-0201)

Note: SERIAL NO. 48500 AND ABOVE

$9.49

$

In Stock, only 1 left!

0

18

Cub Cadet IH-402238-R1

SOCKET, IGNITION SWITCH

Note: SERIAL NO. 48499 AND BELOW

$

$

Currently unavailable

19

Cub Cadet IH-365502-R1

NUT, MAGNETO IGNITION KEY MOUNTING

Note: SERIAL NO. 48499 AND BELOW

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet IH-61791-C1

NUT, MAGNETO IGNITION KEY MOUNTING

Note: SERIAL NO. 48500 AND ABOVE

$

$

Not available

20

Cub Cadet IH-138557

WASHER, MAGNETO IGNITION KEY MOUNTING

$

$

Currently unavailable

21

Cub Cadet IH-491539-R1

RETAINER, IGNITION SWITCH

Note: SERIAL NO. 48499 AND BELOW

$

$

Not available

22

Cub Cadet IH-121613-C1

SWITCH, MAGNETIC
(Superseded to 925-3001)

Note: REPLACES IH-545756-R2

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-114604

WASHER, 1/4 EXT TOOTH LOCK
(Superseded to 936-0222)

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120367

NUT, 5/16-18 ZND HEX.
(Superseded to 912-0138)

$

$

Not available

Cub Cadet IH-120217

WASHER, NO. 10 ZND SPRING LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, 10-32 ZND HEX.
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-453049

SCREW, 1/4-20 X 3/4 ZND SLT-PAN HD MACH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

23

Cub Cadet IH-55292-C1

CABLE, SWITCH TO FUSE -16 IN. LONG-

Note: SERIAL NO. 65106 AND BELOW

$

$

Not available

24

STARTING MOTOR

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF STARTER MOTOR

$

$

Not available

Cub Cadet IH-174916

WASHER, 1/4 EXT-INT TOOTH LOCK
(Superseded to 736-3006)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120375

NUT, 1/4 TYPE 5
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

25

Cub Cadet IH-121629-C2

SWITCH ASSY, NEUTRAL STARTING
(Superseded to 925-3038)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120391

WASHER, .219 X 500 X .049 ZND
(Superseded to 736-0931)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-26208-R1

SCREW, NO. 10NF X 3/8 H/WHD TAP

$

$

Currently unavailable

26

Cub Cadet IH-549637-R1

CABLE, SWITCH TO TRANSMISSION

$

$

Currently unavailable

27

Cub Cadet IH-144407-C1

CABLE, SWITCH TO ALTERNATOR

Note: SERIAL NO. 65107 AND ABOVE

$

$

Not available

28

Cub Cadet IH-135461-C1

DIODE ASSY, TRI CIRCUIT

Note: SERIAL NO. 65107 AND ABOVE

$

$

Not available
