8690-0 - Generac 4,250 Watt Portable Generator Engine Parts (8 HP) Parts Diagram

4,250 Watt Portable Generator

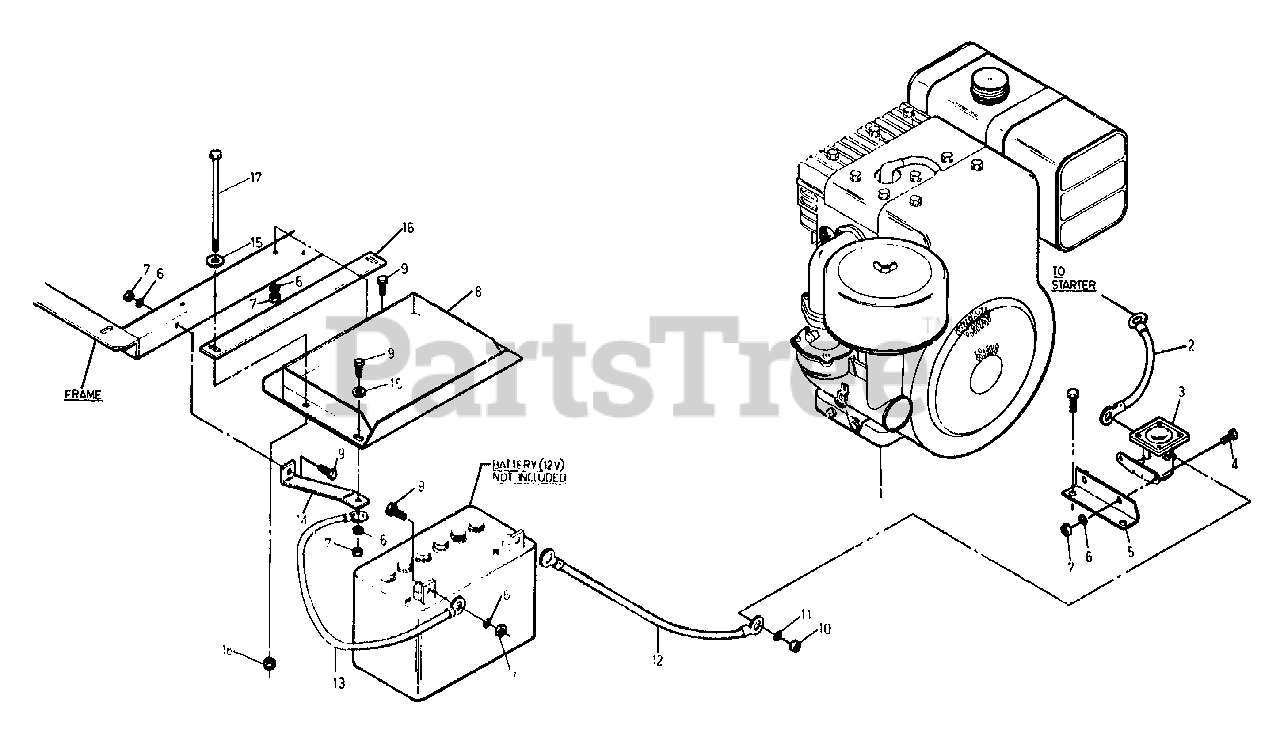

Engine Parts (8 HP) Parts Diagram

  • Title

1

Briggs & Stratton 42409

Engine (8 HP)

$

$

Currently unavailable

2

Briggs & Stratton 3518395

Wire Assembly

$

$

Currently unavailable

3

Briggs & Stratton 24492

Starter Solenoid

$

$

Currently unavailable

4

Briggs & Stratton 22507

No. 1/4-20 x .50 Lg. Hex Head Capscrew

$

$

Not available

5

Briggs & Stratton 45001

Solenoid Support Bracket

$

$

Currently unavailable

6

Briggs & Stratton 22097

1/4 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22127

1/4-20 Hex. Nut

$

$

Not available

8

Briggs & Stratton 44949

Battery Tray
(Superseded to 5044949)

$57.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22287

1/4-20 x .75 Lg. Hex Head Capscrew
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 24114

5/16-24 Hex. Nut

$

$

Not available

11

Briggs & Stratton 22129

5/16 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 3807868

Wire Assembly

$

$

Currently unavailable

13

Briggs & Stratton 3807866

Wire Assembly

$

$

Currently unavailable

14

Briggs & Stratton 44952

Battery Tray Support (Not used with Cradle)

$

$

Currently unavailable

15

Briggs & Stratton 22145

1/4 Flat Washer

$

$

Not available

16

Briggs & Stratton 44951

Battery Tie-Down Bracket

$

$

Currently unavailable

17

Briggs & Stratton 45000

1/4-20 x 7" Lg. Hex Head Capscrew
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0
