8674 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) Handle And Rear Bagger Group Parts Diagram

Walk-Behind Mower

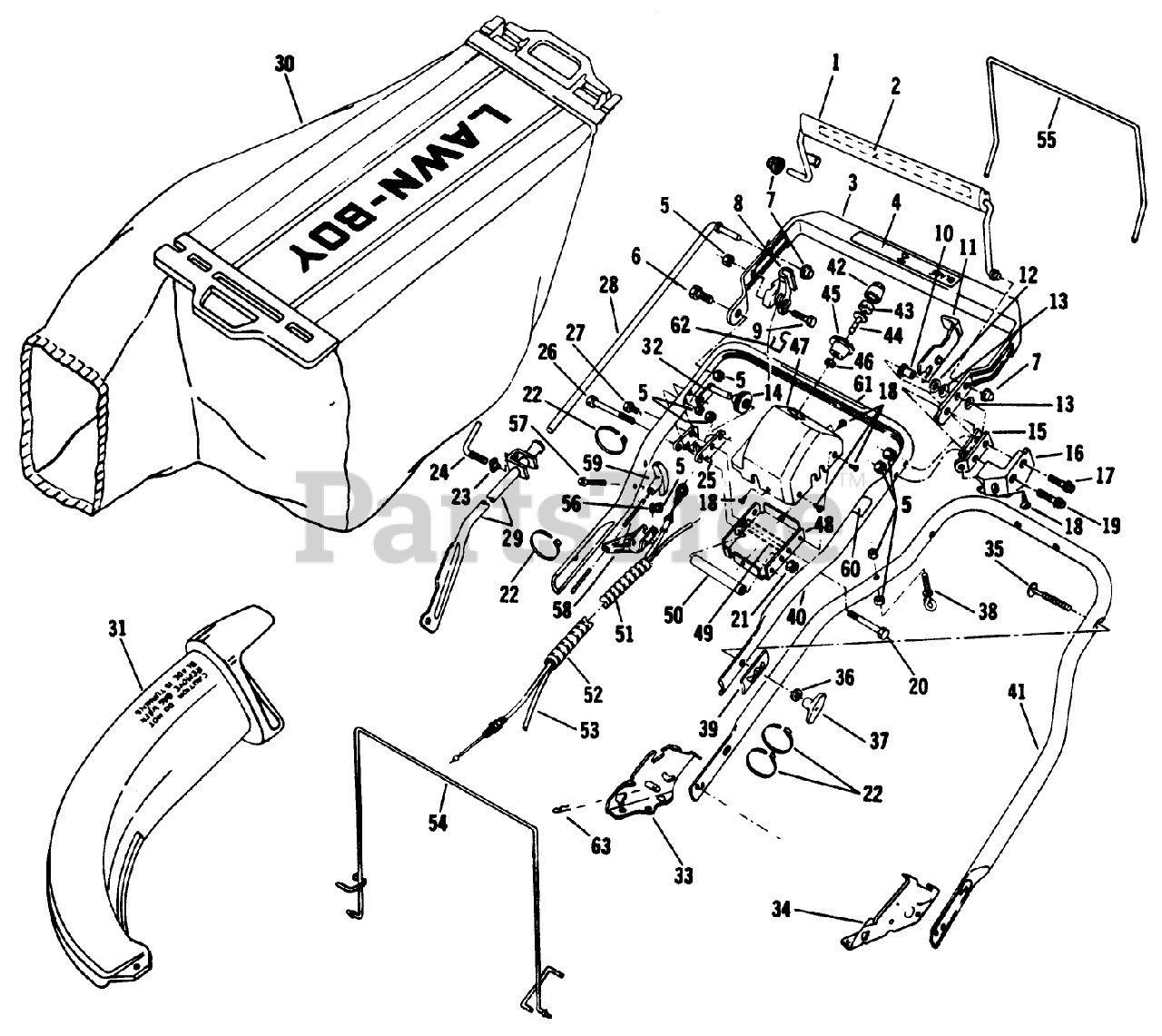

Handle And Rear Bagger Group Parts Diagram

  • Title

1

Lawn-Boy 682686

See Supercession: 683728
(Superseded to 683728)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611244

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682680

See Supercession: 682681
(Superseded to 682681)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$237.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611237

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 611202

BOLT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 611204

See Supercession: 683430
(Superseded to 683430)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 611222

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611203

SPACER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$42.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611219

DISCONTINUED
(Superseded to 612657)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 306359

WASHER M

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 303254

See Supercession: 121-4605
(Superseded to 121-4605)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 611195

See Supercession: 612564
(Superseded to 612564)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 611221

DOWN STOP

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611218

LOCKOUT GUARD

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611220

BOLT SHOU

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 606537

SCREW F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

19

Lawn-Boy 611217

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 611246

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 611245

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

23

Lawn-Boy 602992

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 603699

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611196

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 611228

BOLT-CONSOLE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 611229

CONTROL ROD

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$81.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 682687

See Supercession: 683812
(Superseded to 683812)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 681960

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 681969

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 611194

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 681779

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 681778

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 611184

BOLT QUALITY

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$8.49

$

In Stock, only 1 left!

0

36

Lawn-Boy 609739

WASHER-CURVED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 8

0

37

Lawn-Boy 607544

NUT-WING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

38

Lawn-Boy 611571

EYE BOLT WAS MFG

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 609692

BRACKET R/B 613462

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 611193

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 611576

DISCONTINUED
(Superseded to 612787)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 611072

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 611114

FILTER S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 607311

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 611242

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 608027

LOCKNUT S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

47

Lawn-Boy 611299

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611226

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 611223

SPACER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 611225

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 611460

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 609857

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 611452

DISCONTINUED
(Superseded to 611231)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 692765

Hanger Assembly Front

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Currently unavailable

55

Lawn-Boy 609691

HANGER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 602945

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 611233

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 682684

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611340

HANDLE,STARTER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 611236

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 611335

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 611748

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 605803

HAIR PIN

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available
