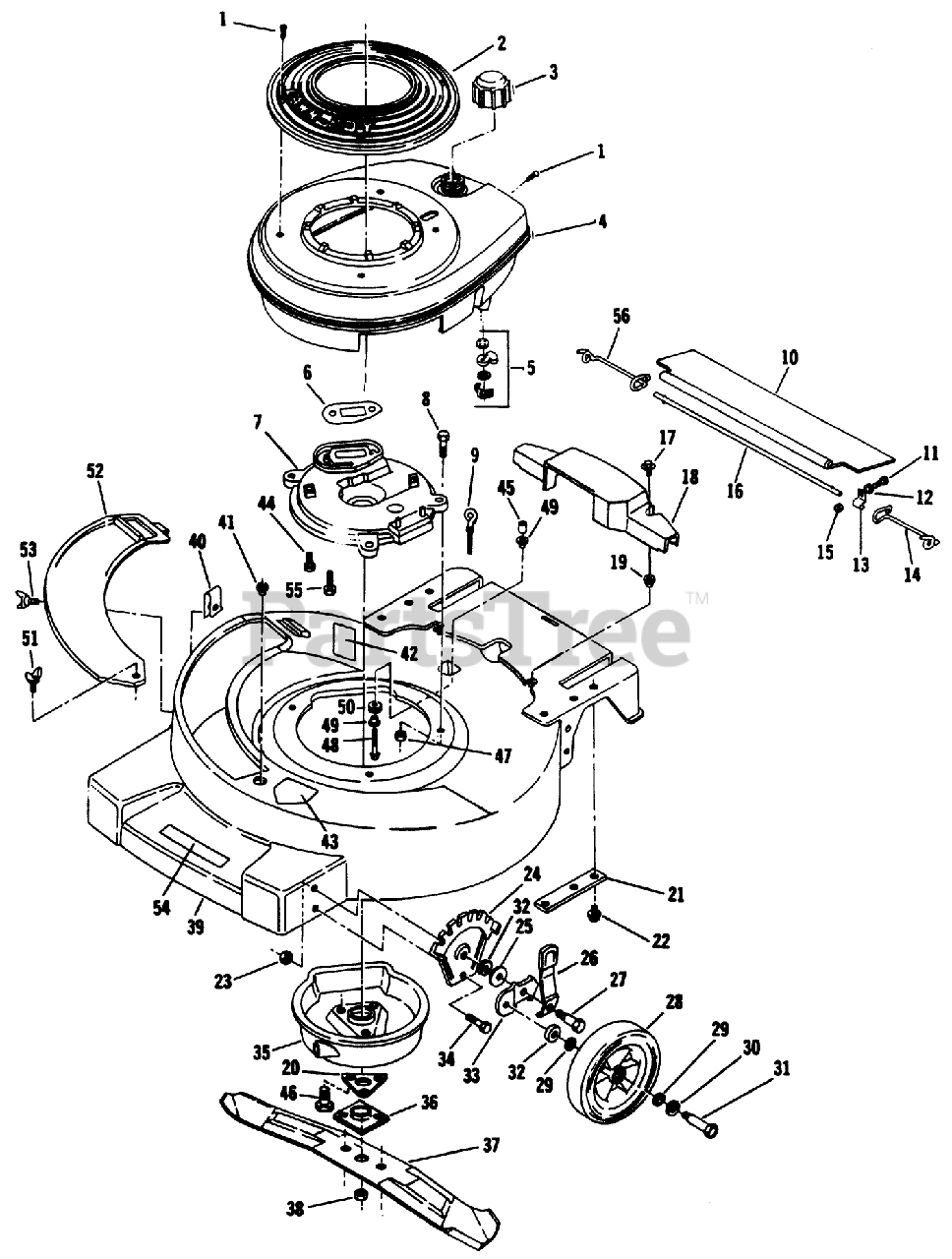

8674 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) Deck And Shroud Group Parts Diagram

Walk-Behind Mower

Deck And Shroud Group Parts Diagram

  • Title

1

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 611382

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

FUEL CAP & INSERT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 682802

See Supercession: 16-5539
(Superseded to 16-5539)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 681818

SHUT OFF VALVE KIT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 610367

See Supercession: 613755
(Superseded to 613755)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 609989

PLATE,MUFFLER F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$161.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 611774

SCREW-HH

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

9

Lawn-Boy 611571

EYE BOLT WAS MFG

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611015

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 610566

WASHER F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 608161

CLAMP ROD KMC

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 608160

ROD T/SHIELD ADV WIRE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611297

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 13

0

20

Lawn-Boy 609980

SUPPORT F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 610150

See Supercession: 611306
(Superseded to 611306)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 610142

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 682277

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 610646

BOLT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 682974

See Supercession: 131-4520
(Superseded to 131-4520)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

29

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 610039

See Supercession: 323-4
(Superseded to 323-4)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

35

Lawn-Boy 682873

See Supercession: 682873-03
(Superseded to 682873-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 682915

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

37

Lawn-Boy 682915

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

38

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 682795

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 610044

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 13

0

42

Lawn-Boy 609992

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

44

Lawn-Boy 609994

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 609588

SPACER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

46

Lawn-Boy 609471

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

47

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

48

Lawn-Boy 611595

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 607605

SPACER ECK PRES

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 610145

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 606733

WING SCREW LAWRE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

52

Lawn-Boy 609987

PLATE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$58.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 610043

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 611579

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

56

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available
