8673 AE - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) DECK AND SHROUD GROUP MODELS: 8673AE Parts Diagram

Walk-Behind Mower

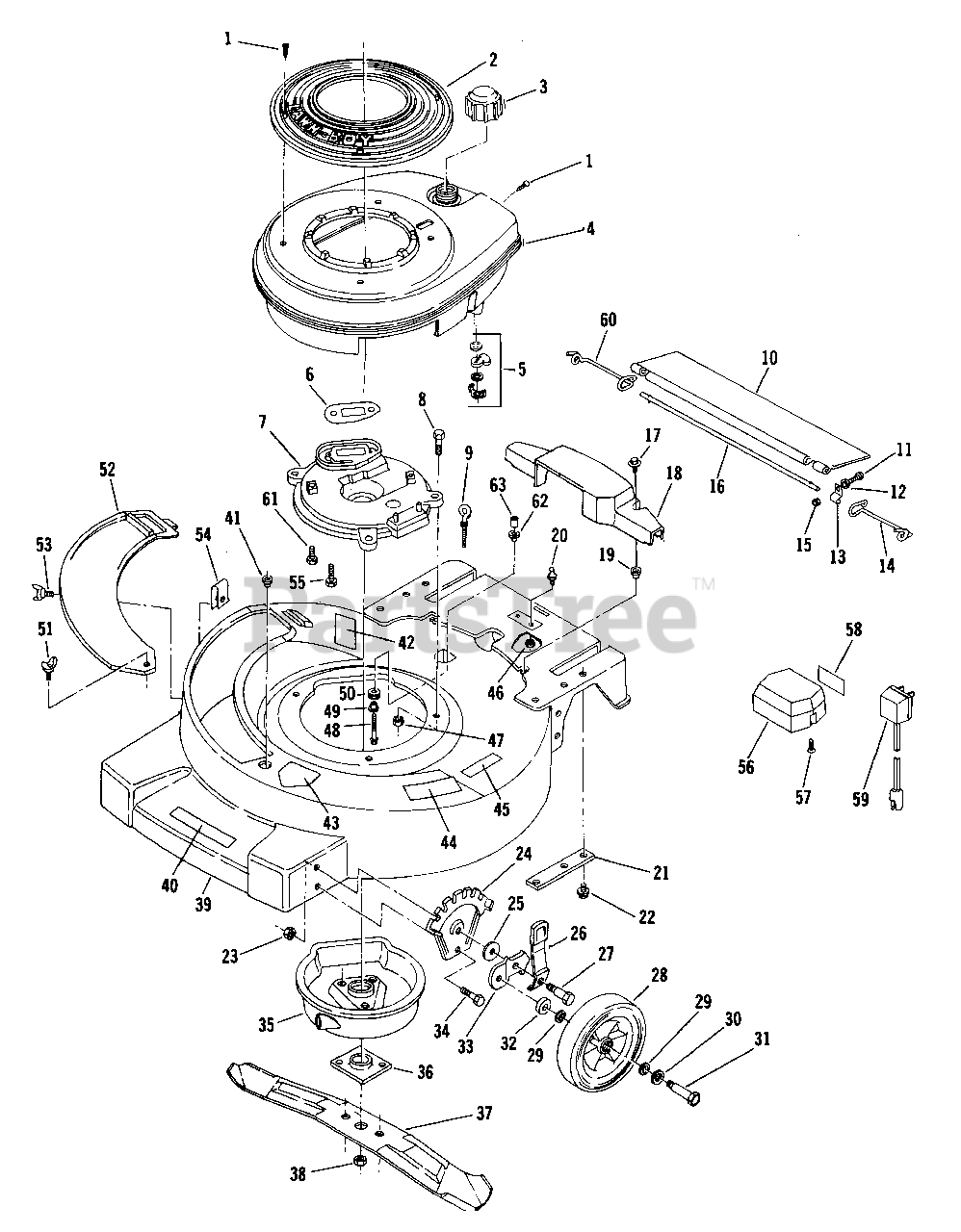

DECK AND SHROUD GROUP MODELS: 8673AE Parts Diagram

  • Title

1

Lawn-Boy 611395

Screw
(Superseded to 611543)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

2

Lawn-Boy 611382

Cover-Shroud

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 682802

Shroud-Engine
(Superseded to 16-5539)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 681818

Fuel Shut-Off Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 610367

Gasket-Exhaust
(Superseded to 613755)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 609989

Plate-Muffler

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors. Model 8673 Only

$161.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 611305

Plate-Muffler

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 604862

Screw-Muff. Plt. to Hsg.

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 611571

Eye Bolt

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors. Model 8673 Only

$14.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 608870

Shield-Trailing

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 610566

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 608161

Clamp

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 608498

Spring-L.H.

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 602315

Nut

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 610143

Rod-Trailing Shield

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 606452

Screw-Axle Cover Mounting

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 609614

Cover-Drive Axle
(Superseded to 611297)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 13

0

20

Lawn-Boy 609034

Ball Stud-Batt. Mounting

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 610150

Plate-Handle Brkt. Support
(Superseded to 611306)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 607188

Screw-Handle Bracket to Housing

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

23

Lawn-Boy 603773

Nut

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 610142

Plate-Height Adjust

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 608834

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 682277

Knob and Spring Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 608835

Bolt-Shoulder
(Superseded to 610646)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 682217

Wheel-Front
(Superseded to 131-4520)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 1 left!

0

29

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 605256

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 603441

Bolt-Wheel-Front

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 603620

Washer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 608833

Bracket-Wheel Height Adjustment
(Superseded to 608833-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 610039

Screw-Hgt. Adj. Plate
(Superseded to 323-4)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

35

Lawn-Boy 682873

Muffler Cover Assembly
(Superseded to 682873-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 682915

Collar and Plate Assembly
(Superseded to 612543-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$29.99

$

In Stock, only 3 left!

0

37

Lawn-Boy 682915

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$29.99

$

In Stock, only 3 left!

0

38

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 682795

Housing Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors. Model 8673 Only

$

$

Not available

39

Lawn-Boy 682795

Housing Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 609991

Decal-Caution

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 13

0

42

Lawn-Boy 609992

Decal-Discharge Area

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

44

Lawn-Boy 609961

Pad-Starting

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 609993

Decal-Starting Pad

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 311505

Nut-Ball Stud

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 608311

Nut-Muff. Plt. to Housing

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 306832

Screw-Transmission to Hsg.

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 607605

Spacer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 610145

Grommet

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 606733

Wing Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$8.99

$

In Stock, Qty 6

0

52

Lawn-Boy 609987

Cover Plate

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$51.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 610043

Thumb Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 610044

Speed Nut-Cover Plate Mounting

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 607601

Screw-Muff. Plt. to Block

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

56

Lawn-Boy 682869

Battery Box and Battery
(Superseded to 94-1614)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 609022

Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 608649

Decal

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 681369

Battery Charger Assembly
(Superseded to 131-0848)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$67.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 608497

Spring-R.H.

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 609994

Screw-Muffler Plate to Block

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 607605

Spacer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 609588

Spacer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0
