86717 - Toro Mower Lift (1978) PARTS LIST FOR TRANSPORT LIFT FACTORY ORDER NUMBER 8-6717 Parts Diagram

Mower Lift

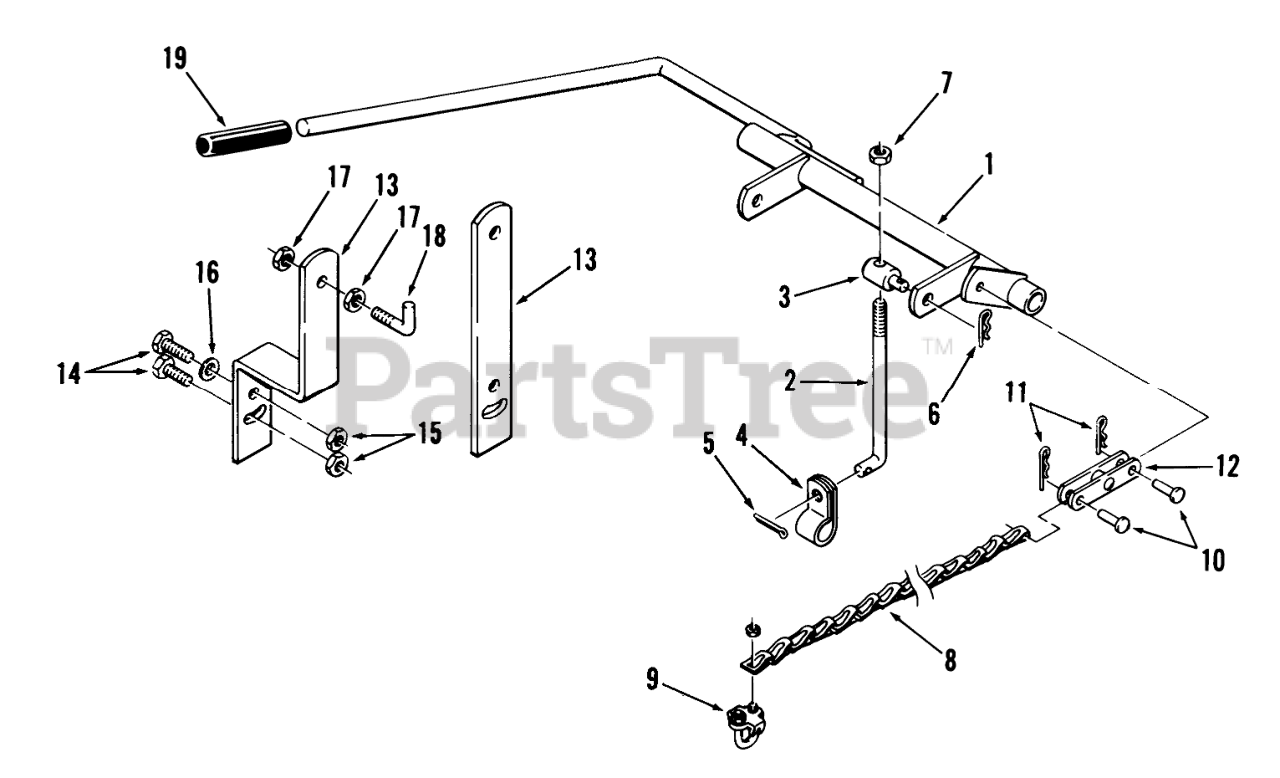

PARTS LIST FOR TRANSPORT LIFT FACTORY ORDER NUMBER 8-6717 Parts Diagram

  • Title

1

Toro 107351

Lift Lever Assy.

$

$

Not available

2

Toro 107356

Lift Rod

$

$

Not available

3

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

4

Toro 107357

Clamp

$

$

Not available

5

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

6

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

8

Toro 107361

Chain

$

$

Not available

9

Toro 107362

Cable Clamp

$

$

Not available

10

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

11

Toro 933503

USE 933503P PIN

$5.99

$

Usually ships in 3-6 days

0

12

Toro 8292

ASSEMBLY CLEVIS

$

$

Not available

13

Toro 107358

Bracket-36 in. (92 cm) Mower

$

$

Not available

13

Toro 107359

Bracket-42 in. (107 cm) Mower

$

$

Not available

14

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

15

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

16

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

17

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

18

Toro 107360

Hook

$

$

Not available

19

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0
