8671 AE - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) CARBURETOR GROUP FOR F101-F141-F142AE ENGINES Parts Diagram

Walk-Behind Mower

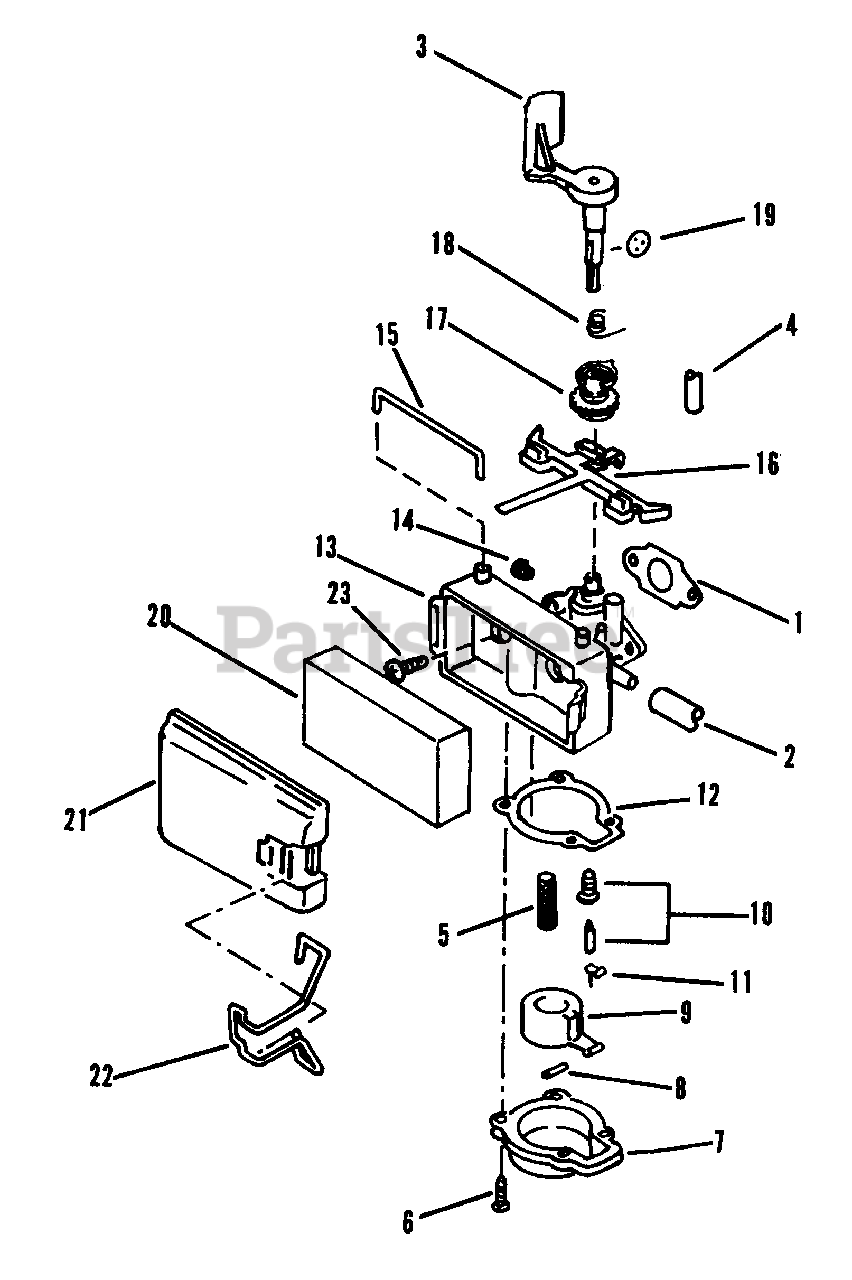

CARBURETOR GROUP FOR F101-F141-F142AE ENGINES Parts Diagram

  • Title

1

Lawn-Boy 609476

Gasket-Carburetor to Crankcase Cover

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 609639

Fuel Line

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

Lawn-Boy 682425

Carburetor & Air Vane Assembly
(Superseded to 682568)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 610831

Air Vane & Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$18.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 609640

Tube-Primer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$14.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 610176

Filter-Carburetor

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 608850

Screw-Float Chamber

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

In Stock, only 3 left!

0

7

Lawn-Boy 610416

Float Chamber
(Superseded to 92-6374)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 300096

Pin-Float
(Superseded to 92-6389)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 678113

Float

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 681741

Float Valve & Seat Assembly
(Superseded to 92-9697)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$27.99

$

In Stock, Qty 9

0

11

Lawn-Boy 603145

Clip
(Superseded to 92-9697)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$27.99

$

In Stock, Qty 9

0

12

Lawn-Boy 602850

Gasket
(Superseded to 98-1362)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 682429

Carburetor Body
(Superseded to 682568)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 609686

Screw-Altitude Adjustment

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$11.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 610165

Retainer-Speed Control Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

In Stock, Qty 15

0

16

Lawn-Boy 610832

Speed Control Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 610834

Collar

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 610833

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 609632

Disk-Throttle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.49

$

In Stock, only 1 left!

0

20

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

0

21

Lawn-Boy 610384

Cover-Air Filter
(Superseded to 93-1231)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 610383

Retainer-Filter Cover

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$9.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 609482

Screw-Carburetor Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.99

$

In Stock, Qty 8

0
