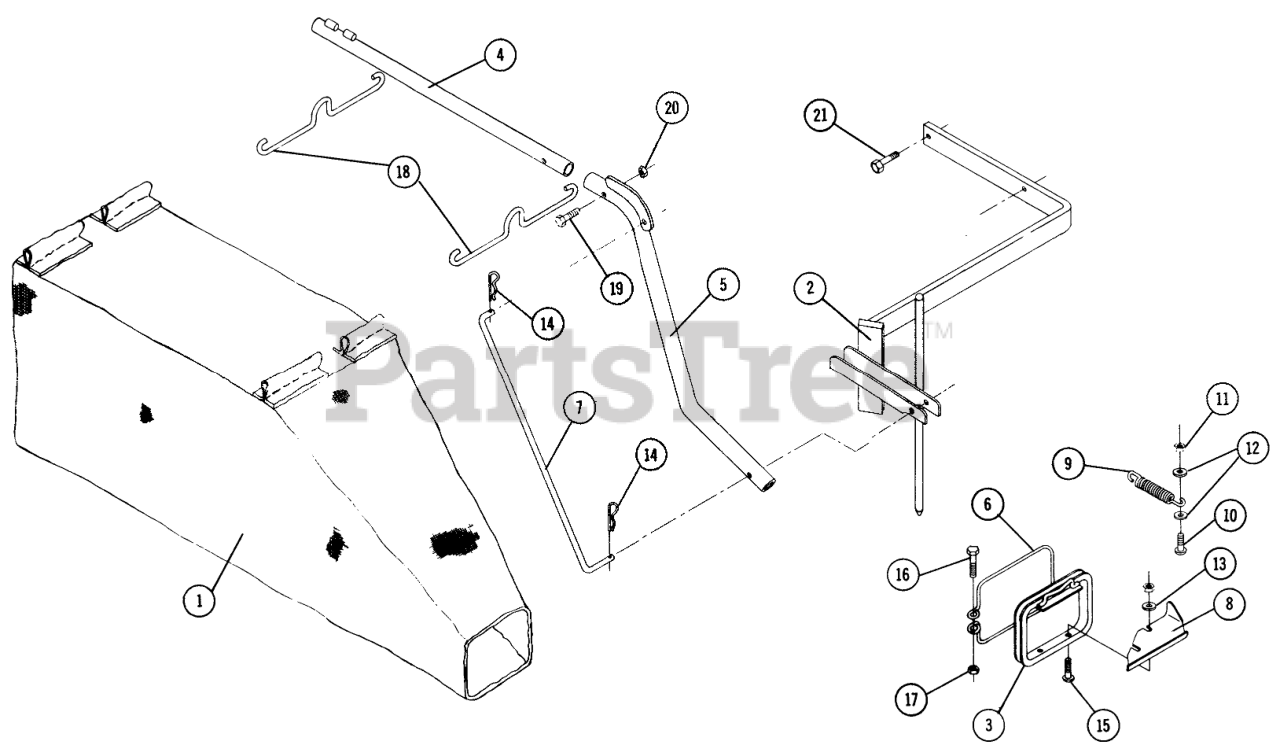

86650 - Toro Grass Bag (1975) PARTS LIST FOR GRASS CATCHER (FACTORY ORDER NUMBER 8-6650) Parts Diagram

Grass Bag

PARTS LIST FOR GRASS CATCHER (FACTORY ORDER NUMBER 8-6650) Parts Diagram

  • Title

1

Toro 102319

Bag

$

$

Not available

2

Toro 104840

Mounting Bracket

$

$

Currently unavailable

3

Toro 103813

Bag Opening Frame

$

$

Not available

4

Toro 9969

Upper Tube

$

$

Currently unavailable

5

Toro 9970

Lower Tube

$

$

Currently unavailable

6

Toro 104893

Hoop-Wire

$

$

Not available

7

Toro 9967

Link

$

$

Not available

8

Toro 100509

Bottom Plate

$

$

Not available

9

Toro 6651

SPRING R

$24.99

$

In Stock, only 1 left!

0

10

Toro 910893

PAN HEAD SCREW-4

$

$

Not available

11

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

12

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

13

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

14

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

15

Toro 910836

MACH. SCREW

$

$

Not available

16

Toro 908009

Bolt 1/4-20 x 2
(Superseded to 321-11)

$0.99

$

In Stock, Qty 20+

0

17

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

18

Toro 9185

Hook

$

$

Not available

19

Toro 908020

Bolt
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

20

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

21

Toro 926718

Bolt, 3/8-16 x 1 1/4 Swage

$

$

Currently unavailable

Toro 908016

Bolt
(Superseded to 322-2)

Note: NOT SHOWN

$2.99

$

In Stock, Qty 17

0
