86612 - Toro Grass Bag (1975) PARTS LIST-GRASS CATCHER FACTORY ORDER NUMBER 8-6612 Parts Diagram

Grass Bag

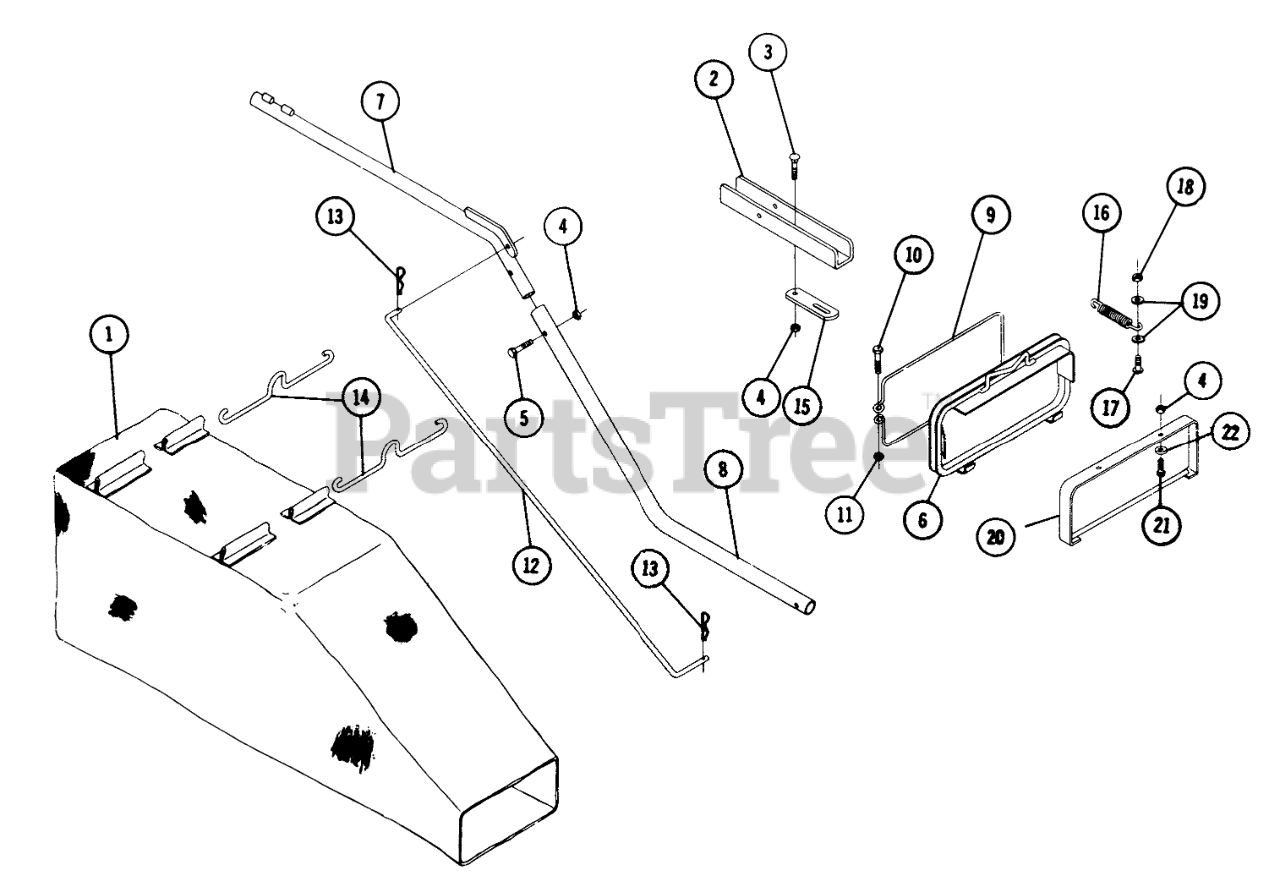

PARTS LIST-GRASS CATCHER FACTORY ORDER NUMBER 8-6612 Parts Diagram

  • Title

1

Toro 103318

Bag

$

$

Not available

2

Toro 9271

Channel

$

$

Not available

3

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

Usually ships in 3-6 days

0

4

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 16

0

5

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

6

Toro 9612

Frame

$

$

Not available

7

Toro 9178

Upper Arm

$

$

Not available

8

Toro 9190

Arm-lower

$

$

Not available

9

Toro 104813

Wire

$

$

Not available

10

Toro 908006

Bolt
(Superseded to 321-8)

$3.99

$

In Stock, Qty 10

0

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

12

Toro 9348

Link

$

$

Not available

13

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

14

Toro 9185

Hook

$

$

Not available

15

Toro 8449

Link

$

$

Not available

16

Toro 6651

SPRING R

$21.99

$

In Stock, only 1 left!

0

17

Toro 910893

PAN HEAD SCREW-4

$

$

Not available

18

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

19

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

20

Toro 103344

Strap Assembly

$

$

Currently unavailable

21

Toro 910865

Screw
(Superseded to 32122-14)

$2.49

$

In Stock, Qty 16

0

22

Toro 8569

Spacer

$

$

Not available
