866091-A - Briggs & Stratton 50cc Brush Cutter (2016) Engine Service Parts - Recoil (TR01783A) Parts Diagram

50cc Brush Cutter

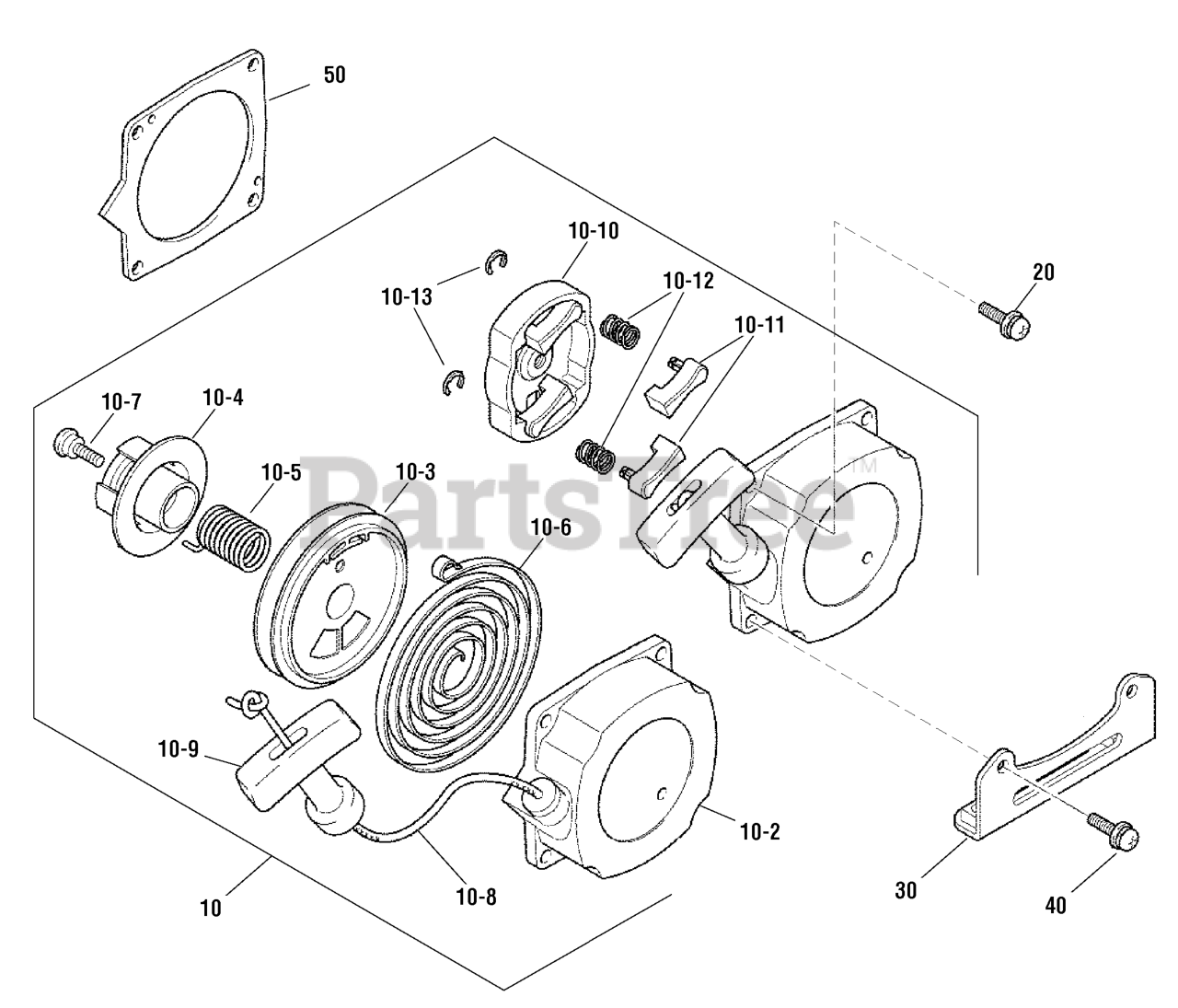

Engine Service Parts - Recoil (TR01783A) Parts Diagram

  • Title

10

Murray 709641

RECOIL STARTER ASSEMBLY

Note: (Includes Ref. Nos. 10-2, 10-3, 10-4, 10-5, 10-6, 10-7, 10-8, 10-9, 10-10, 10-11, 10-12 & 10-13)

$199.99

$

Usually ships in 2-12 days

0

10-2

CASE, Starter

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-3

REEL

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-4

CAM

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-5

SPRING

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-6

SPRING, Spiral

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-7

SCREW

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-8

ROPE, Starter

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-9

KNOB, Starter

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-10

Murray 709642

PULLEY, Starter

$31.99

$

Usually ships in 2-12 days

0

10-11

RATCHET

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-12

SPRING, Return

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-13

SNAP RING

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

20

SCREW & WASHER

$

$

Not available

30

Murray 709643

BRACKET, Tank

$22.99

$

Usually ships in 2-12 days

0

40

SCREW & WASHER

$

$

Not available

50

PLATE

$

$

Not available
