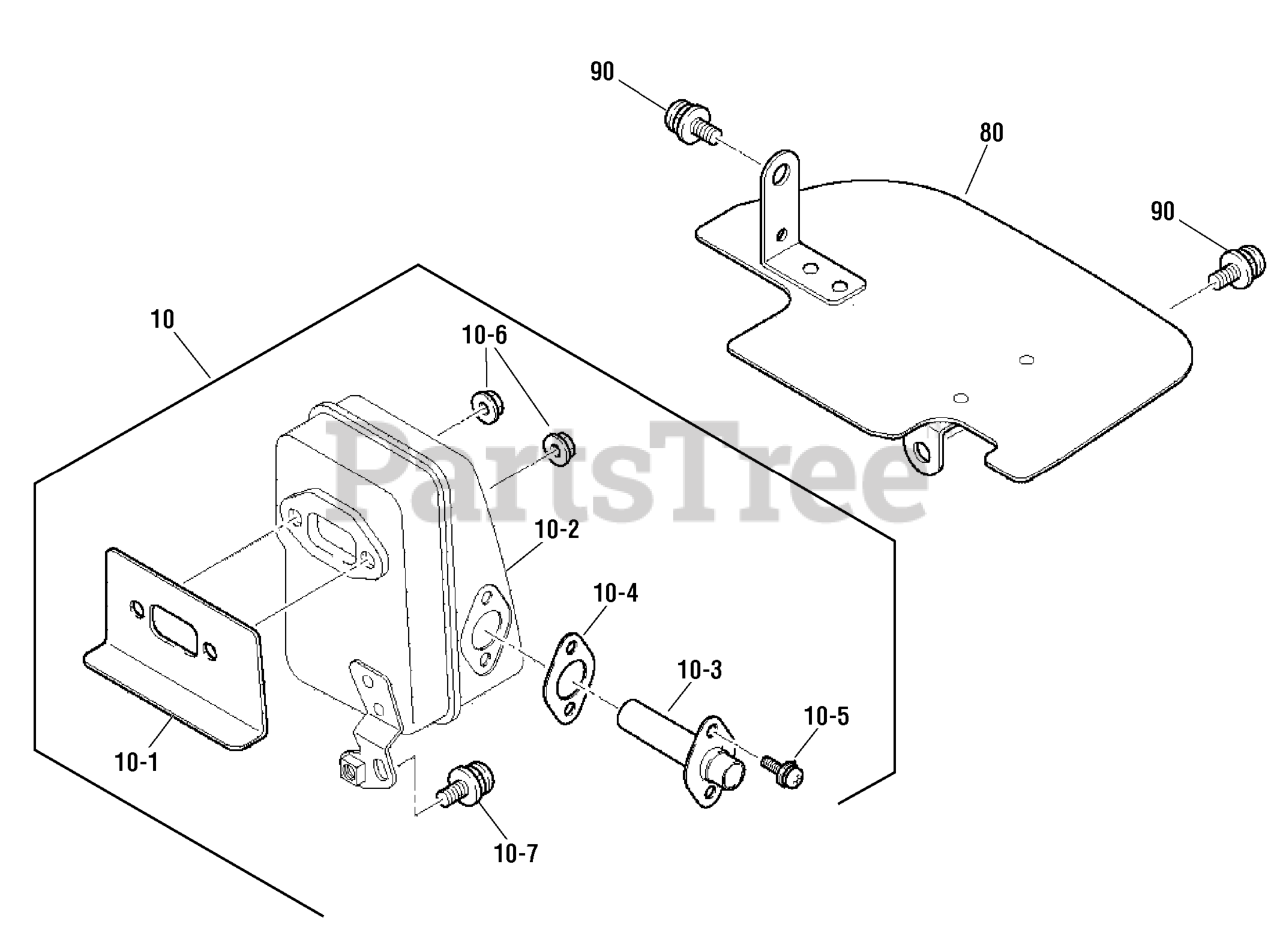

866090-A - Briggs & Stratton 43cc Brush Cutter (2016) Engine Service Parts - Muffler (TR01782A) Parts Diagram

43cc Brush Cutter

Engine Service Parts - Muffler (TR01782A) Parts Diagram

  • Title
10

Murray 709620

MUFFLER & GASKET KIT

Note: (Includes Ref. Nos. 10-1, 10-2, 10-3, 10-4, 10-5, 10-6 & 10-7)

$153.99

$

Usually ships in 2-12 days

0

10-1

GASKET, Muffler

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-2

MUFFLER

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-3

TAIL PIPE

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-4

GASKET

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-5

SCREW & WASHER

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-6

NUT, Flange

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-7

SCREW & WASHER

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

80

GASKET

$

$

Not available

90

SCREW & WASHER

$

$

Not available
