866090-A - Briggs & Stratton 43cc Brush Cutter (2016) Engine Service Parts - Fuel Tank (TR01782A) Parts Diagram

43cc Brush Cutter

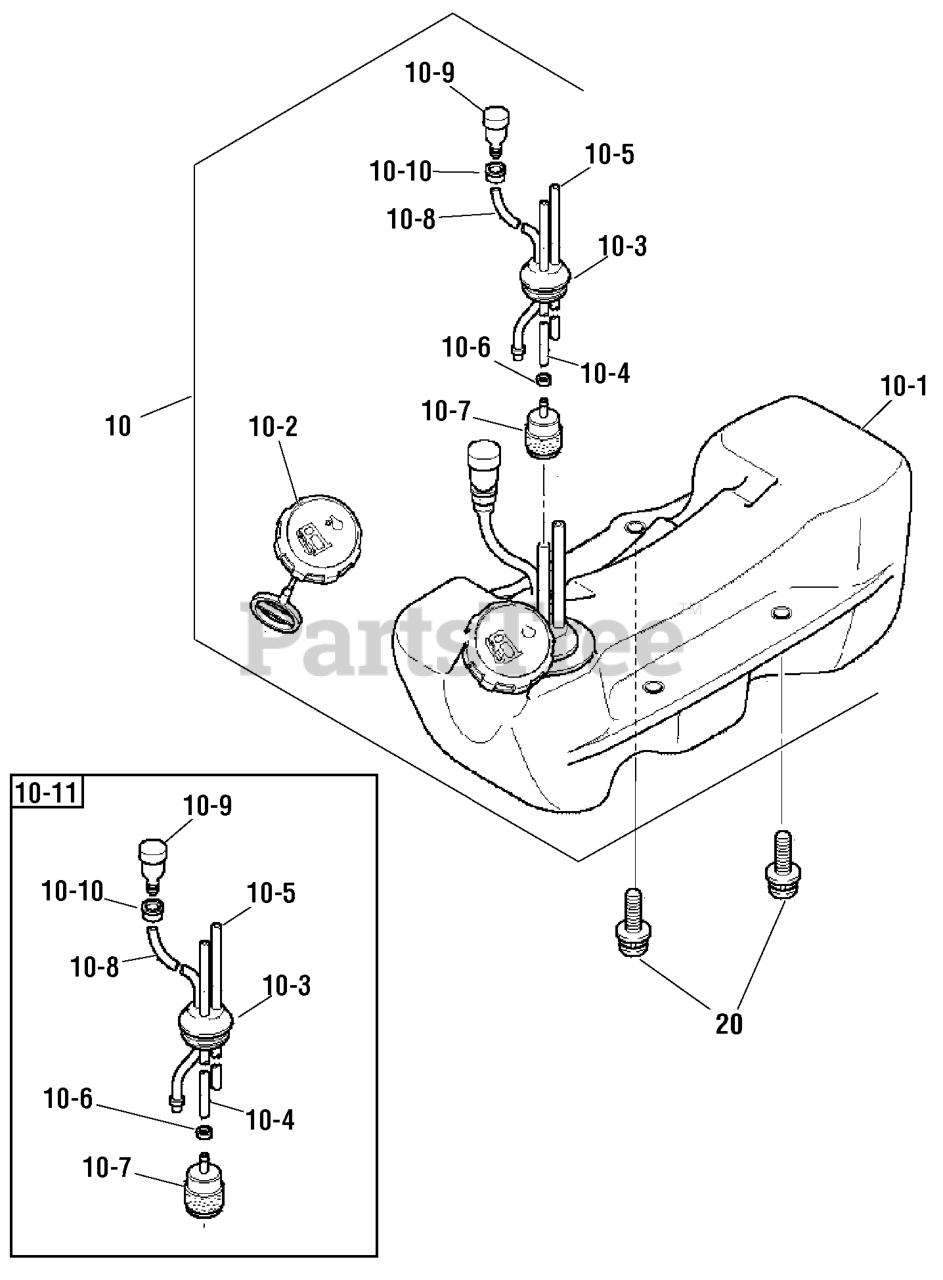

Engine Service Parts - Fuel Tank (TR01782A) Parts Diagram

  • Title

10

Murray 709624

FUEL TANK ASSEMBLY

Note: (Includes Ref. Nos. 10-1, 10-2, 10-3, 10-4, 10-5, 10-6, 10-7, 10-8, 10-9 & 10-10)

$148.99

$

Usually ships in 2-12 days

0

10-1

FUEL TANK

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-2

Murray 709596

FUEL CAP

Note: (Not a serviceable part. Order Ref. No. 10)

$26.99

$

Usually ships in 2-12 days

0

10-3

GROMMET

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-4

TUBE, Fuel

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-5

TUBE, Fuel

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-6

BUSH

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-7

FILTER, Fuel

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-8

HOSE, Fuel

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-9

VALVE, Breather

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-10

CLIP

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-11

Murray 709626

FUEL LINE ASSEMBLY

Note: (Includes Ref. Nos. 10-3, 10-4, 10-5, 10-6, 10-7, 10-8, 10-9 & 10-10)

$54.99

$

Usually ships in 2-12 days

0

20

SCREW & WASHER

$

$

Not available
