866088-A - Briggs & Stratton 26cc Brush Cutter (2016) Engine Service Parts - Recoil Starter (TR01792A) Parts Diagram

26cc Brush Cutter

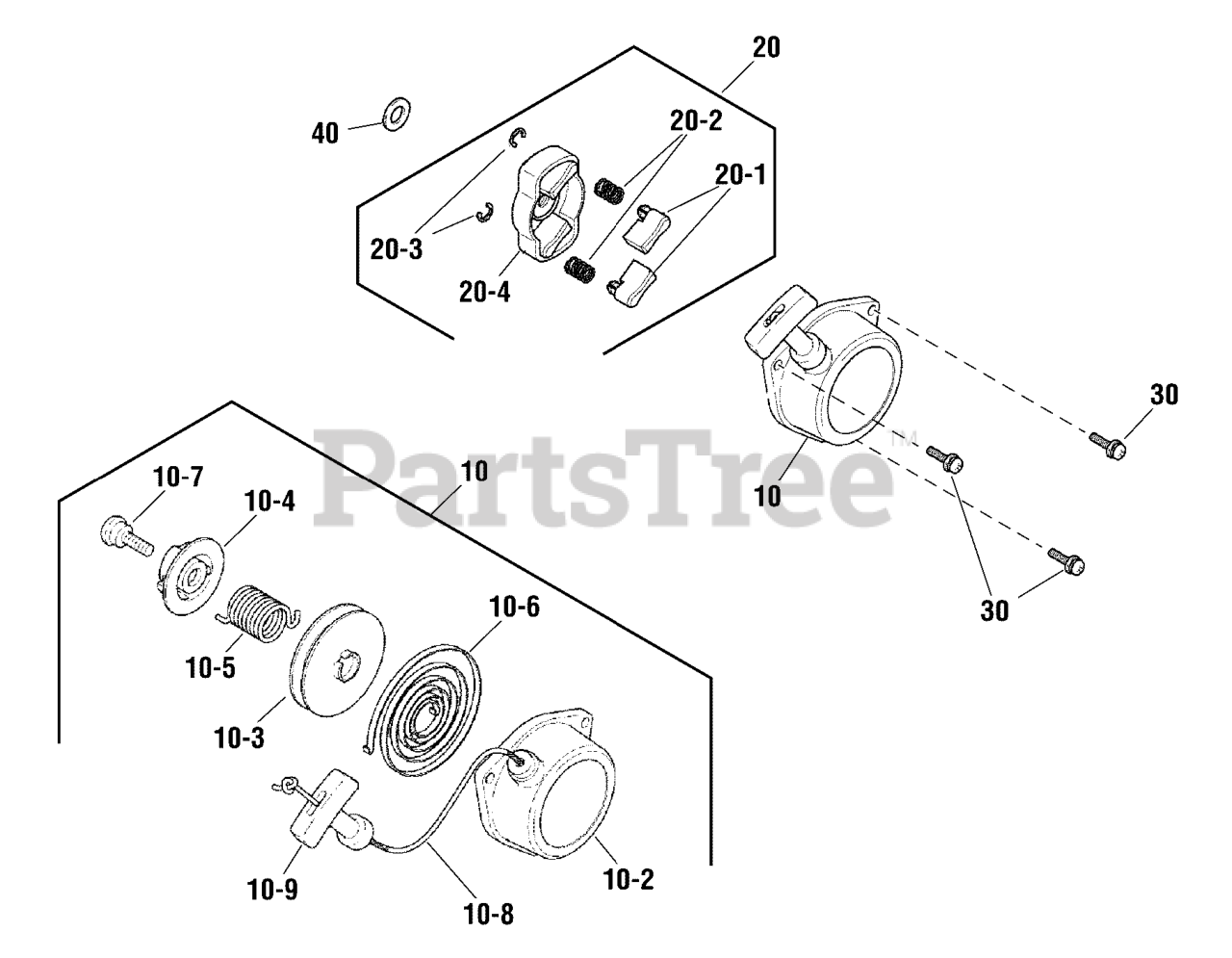

Engine Service Parts - Recoil Starter (TR01792A) Parts Diagram

  • Title

10

Murray 709562

RECOIL STARTER

Note: (Includes Ref. Nos. 10-1, 10-2, 10-3, 10-4, 10-5, 10-6, 10-7, 10-8 & 10-9)

$216.99

$

Usually ships in 2-12 days

0

10-2

CASE, Starter

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-3

REEL

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-4

CAM

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-5

SPRING

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-6

SPRING

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-7

SCREW

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-8

ROPE, Starter

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-9

KNOB, Starter

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

20

Murray 709563

PULLEY, Starter

Note: (Includes Ref. Nos. 20-1, 20-2 ,20-3 & 20-4)

$22.99

$

Usually ships in 2-12 days

0

20-1

RATCHET

Note: (Not a serviceable part. Order Ref. No. 20)

$

$

Not available

20-2

SPRING, Return

Note: (Not a serviceable part. Order Ref. No. 20)

$

$

Not available

20-3

SNAP RING

Note: (Not a serviceable part. Order Ref. No. 20)

$

$

Not available

20-4

STOPPER

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

30

SCREW & WASHER

$

$

Not available

40

WASHER

$

$

Not available
