8655 R - Troy-Bilt 22" Mulching Walk-Behind Mower (SN: B440300101 - B440399999) ENGINE AND GEAR CASE Parts Diagram

22" Mulching Walk-Behind Mower

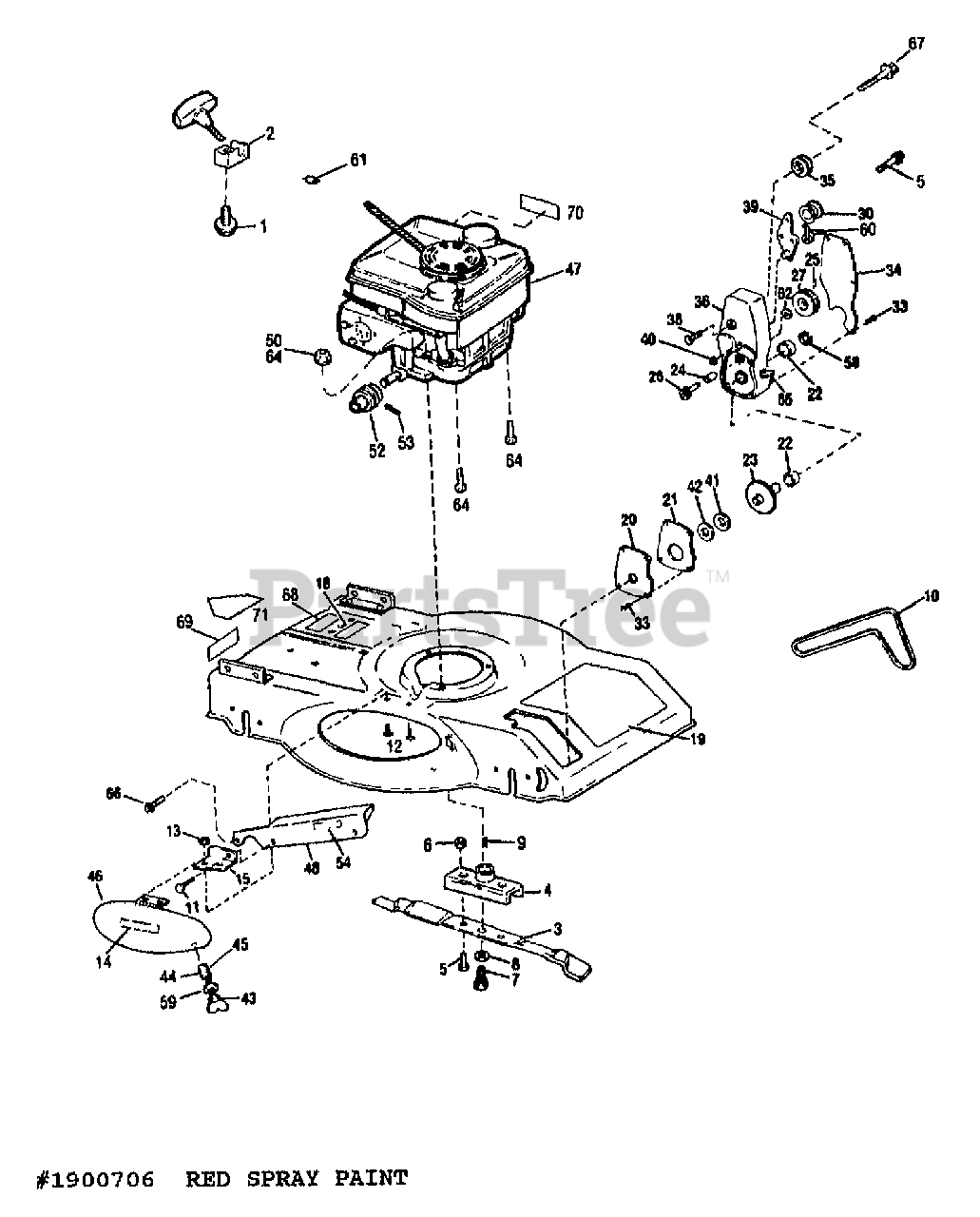

ENGINE AND GEAR CASE Parts Diagram

  • Title

1

MTD 1763187

SCR-HFLK 1/4-20X1.0 THFRM {NOT 8656R/RS}

$

$

Not available

2

MTD 1761764

GUIDE-ROPE {NOT 8656R/RS}

$

$

Not available

3

Troy-Bilt 1755990

BLADE-22" MULCHER
(Superseded to 1755990-0637)

$40.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 1763039

ASSM-BLADE COUPLING

$

$

Currently unavailable

5

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

7

MTD 1894062

SCR-SHOULDER

$

$

Not available

8

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

9

MTD 1185885

KEY-WOODRUFF

$

$

Not available

10

Troy-Bilt 1755565

BELT-DRIVE

$21.99

$

Usually ships in 3-6 days

0

11

MTD 1756544

SCR-SHOULDER

$

$

Not available

12

MTD 1186068

SCR-CARR 1/4-20X.375

$

$

Not available

13

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

14

MTD 1755985

DECAL-CAUTION

$

$

Not available

15

MTD 1755558001

BRKT-SUPPORT

$

$

Not available

18

MTD 1758094

DECAL-CUTTING HEIGHT

$

$

Not available

19

MTD 1758098

DECAL-LOGO

$

$

Not available

20

MTD 1894230001

COVER-GEAR CASE BOTTOM

$

$

Not available

21

MTD 1894231

GASKET-GEAR CASE

$

$

Not available

22

MTD 1185319

BEARING-BRONZE

$

$

Not available

23

MTD 1761969

ASSM-GEAR SHAFT

$

$

Not available

24

MTD 1758230

BEARING-BRONZE

$

$

Not available

25

MTD 1185271

PIN-DRIVE .218X1.12

$

$

Not available

26

Troy-Bilt 1761901

ASSM-STEEL PINION SHAFT
(Superseded to 1758050)

$

$

Not available

27

MTD 1758229

SHEAVE

$

$

Not available

30

MTD 1752988

IDLER-FLAT

$

$

Not available

33

Troy-Bilt 1186009

SCR-HW M10-24X.5 STH ZP

$

$

Not available

34

MTD 1722468001

COVER-GEAR CASE TOP

$

$

Not available

35

MTD 1761754

SHEAVE

$

$

Not available

36

MTD 1761625001

ASSM-GEAR CASE

$

$

Not available

38

MTD 1894301

SCR-SHOULDER

$

$

Not available

39

MTD 1757745

ASSM-IDLER ARM

$

$

Not available

40

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

41

Troy-Bilt 1708012

WASHER-1.5X.755X.062
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 1894232

WASHER-FELT

$

$

Currently unavailable

43

MTD 1894076

PIN-CHUTE LOCK

$

$

Not available

44

MTD 1894318

SPRING-COMPRESSION

$

$

Not available

45

MTD 1185479

PIN-ROLL .093 DIAX.62

$

$

Not available

46

Troy-Bilt 1762064

COVER-DISCHARGE W/DECAL (INCL. 14)

$

$

Currently unavailable

47

0

B & S ENG, 4.0 HP, #122782 RCL STR (8654R/RS)

$

$

Not available

47

0

B & S ENG, 5.0 HP, #124782 RCL STR (8655R/RS)

$

$

Not available

47

0

B & S ENG, 5.0 HP #124787 ELEC STR (8656R/RS)

$

$

Not available

48

MTD 1764438001

ASSM-BELT COVER

$

$

Not available

?49

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

50

UNKNOWN

$

$

Not available

52

MTD 1756806

SHEAVE

$

$

Not available

53

Troy-Bilt 1185232

PIN-ROLL
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

54

Troy-Bilt 1763874

DECAL-FRONT WHEEL DRIVE

$

$

Currently unavailable

58

MTD 1725197

RING-GRIP EXT .5 ID

$

$

Not available

59

Troy-Bilt 1100254

WASHER-.75X.312X.065 ZP
(Superseded to 936-0159)

$

$

Not available

60

MTD 1757640

SPRING-TORSION

$

$

Not available

61

Troy-Bilt 1746425

STOP-STARTER ROPE {NOT 8656R/RS}

$

$

Not available

62

Troy-Bilt 1185831

WASHER-SHIM

$

$

Not available

64

MTD 1762042

SCR-HH 3/8-16X1.0 THDFM

$

$

Not available

?65

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

66

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

67

Troy-Bilt 1100078

SCR-HH 5/16-18X.875 G5 ZP
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

68

MTD 1900333

DECAL-U.S.A.

$

$

Not available

69

MTD 1762325

DECAL-SOUND LEVEL

$

$

Not available

70

Troy-Bilt 1759089

DECAL-ENGINE (SEARS) {RS}

$

$

Currently unavailable

71

Troy-Bilt 1739787

GUARD-ASC {NOT 8656R/RS}

$

$

Currently unavailable

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
