8654 R - Troy-Bilt 22" Mulching Walk-Behind Mower (SN: B310100101 - B310299999) HANDLEBAR AND CONTROLS Parts Diagram

22" Mulching Walk-Behind Mower

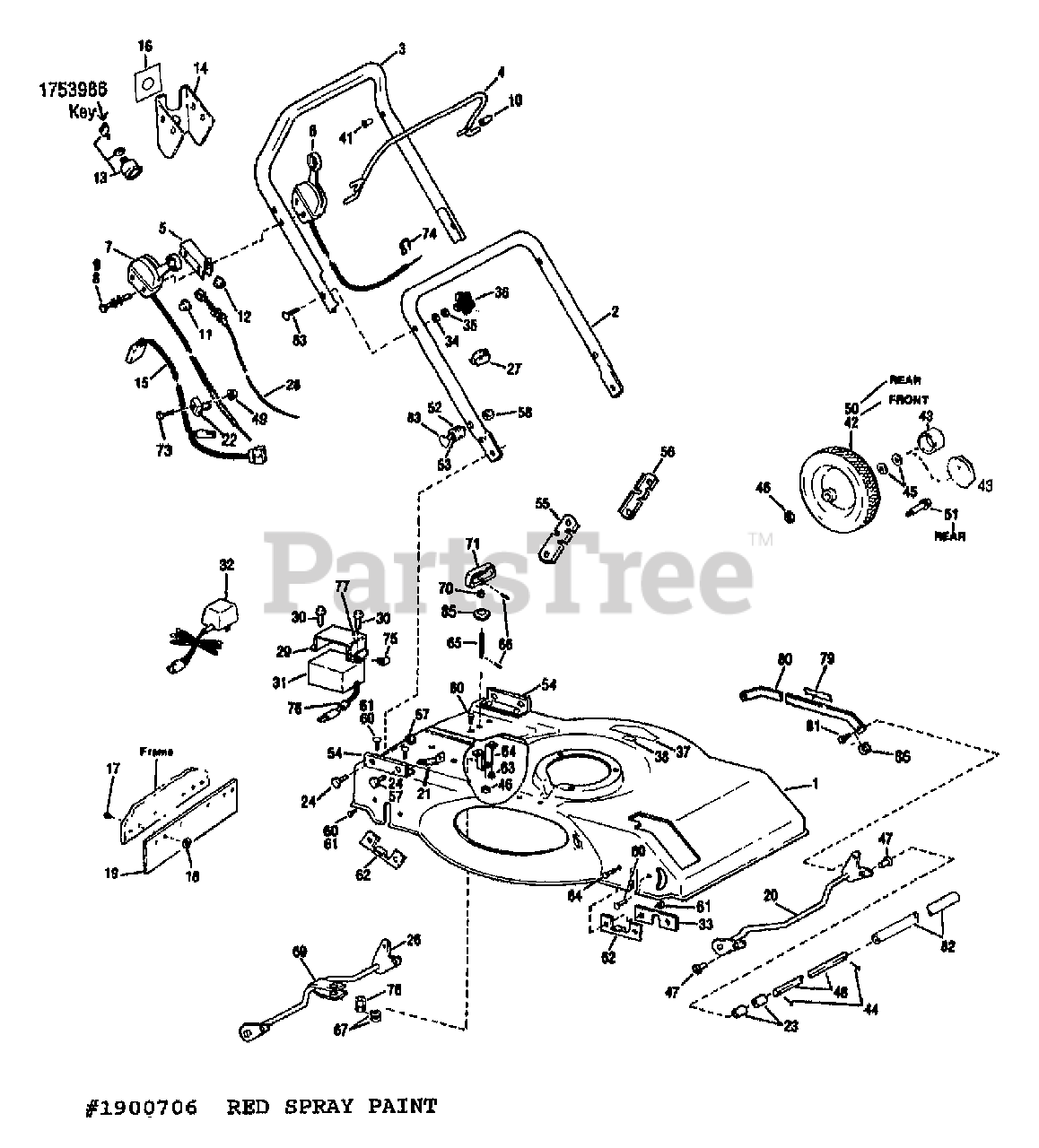

HANDLEBAR AND CONTROLS Parts Diagram

  • Title

1

Troy-Bilt 1762065

ASSM-BASE W/DECAL MULCHER

$

$

Currently unavailable

2

Troy-Bilt 1761103001

HANDLE-LOWER BLACK

$

$

Not available

2

Troy-Bilt 1755415

HANDLE-LOWER CHROME

$

$

Currently unavailable

3

MTD 1761100001

HANDLE-UPPER BLACK

$

$

Not available

3

Troy-Bilt 1755416

HANDLE-UPPER CHROME

$

$

Currently unavailable

4

MTD 1761104001

ASSM-BAIL ENGINE CONTROL BLACK

$

$

Not available

4

MTD 1755419

ASSM-BAIL ENGINE CONTROL CHROME

$

$

Not available

5

MTD 1756147001

SUPPORT-CONTROL

$

$

Not available

6

MTD 1761099

CONTROL-THROTTLE

$

$

Not available

6

Troy-Bilt 1758815

CONTROL-THROTTLE

$

$

Currently unavailable

7

Troy-Bilt 1761098

CLUTCH-CONTROL
(Superseded to 1769342P)

$

$

Not available

7

MTD 1755599

CLUTCH-CONTROL

$

$

Not available

8

MTD 1756148

SCR-HH SEMS

$

$

Not available

8

MTD 1756179

SCR-HHS {8656}

$

$

Not available

9

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

10

MTD 1751526

GRIP-HANDLE

$

$

Not available

11

Troy-Bilt 1727342

CAP-PUSH ON .312 DIA
(Superseded to 726-0135)

$6.99

$

In Stock, only 1 left!

0

12

MTD 1747236

RING-GRIP EXT .312 ID

$

$

Not available

13

Troy-Bilt 1723798

SWITCH-EL IGNITION {8656}
(Superseded to 1900455P)

$

$

Not available

13

MTD 1753986

KEY-IGNITION

$

$

Not available

14

MTD 1756178001

SUPPORT-SWITCH {8656}

$

$

Not available

15

0

WIRING HARNESS (8656 MODELS)

$

$

Not available

15

MTD 1761634

HARNESS-WIRE {8656}

$

$

Not available

16

MTD 1756233

DECAL-ELEC START {8656}

$

$

Not available

17

MTD 1739918

RIVET-POP

$

$

Not available

18

Troy-Bilt 1736359

WASHER-.88X.2X.059

$

$

Not available

19

MTD 1755562

SHIELD-DEFLECTOR

$

$

Not available

20

Troy-Bilt 1755530010

ASSM-FRONT AXLE

$

$

Currently unavailable

21

MTD 1756662010

BRKT

$

$

Not available

22

MTD 1759076

CLAMP-POWDEN WIRE

$

$

Not available

23

MTD 1745883

BUSHING-NYLON

$

$

Not available

24

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

25

0

NOT USED

$

$

Not available

26

Troy-Bilt 1755525010

ASSM-AXLE REAR

$

$

Currently unavailable

27

MTD 1729721

CLIP-WIRE {8656}

$

$

Not available

27

0

CONTROL WIRE CLIP (8654, 8655 MODELS)

$

$

Not available

28

MTD 1761097

CABLE-ENGINE BRAKE

$

$

Not available

28

0

ENGINE BRAKE CABLE

$

$

Not available

28

Troy-Bilt 1758160

CABLE-ENGINE BRKT {8654RS}

$

$

Currently unavailable

29

MTD 1756551010

CLAMP-BATTERY {8656}

$

$

Not available

30

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

31

MTD 1756550

KIT-BATTERY REPLACE {8656}
(Superseded to 1903686)

$

$

Not available

32

Troy-Bilt 1733251

CHARGER-ELEC BATTERY {8656}

$

$

Currently unavailable

33

MTD 1756597

DOUBLER-PLATE

$

$

Not available

34

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

36

MTD 1731030

KNOB

$

$

Not available

37

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

38

0

INDICATOR ARROW DECAL

$

$

Not available

38

MTD 1758097

DECAL-INDICATOR ARROW (A)

$

$

Not available

38

MTD 1761553

DECAL-HT INDICATOR (B)

$

$

Not available

39

0

NOT USED

$

$

Not available

40

0

NOT USED

$

$

Not available

41

MTD 1747499

BEARING-FLANGED

$

$

Not available

42

0

FRONT WHEEL AND TIRE ASSEMBLY

$

$

Not available

42

Troy-Bilt 1758332

ASSM-FRT TIRE&WHEEL (A)

$

$

Not available

42

MTD 1762021

TIRE/WHEEL FRONT F/TB MULCH MW (B)

$

$

Not available

43

0

HUB CAP

$

$

Not available

43

MTD 1752046

CAP-HUB 1.3/8" DIA. (A)
(Superseded to 1761762)

$

$

Not available

43

Troy-Bilt 1762241

CAP-HUB T/B MULCHERS 3.00" DIA. (B)

$

$

Currently unavailable

44

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

45

Troy-Bilt 1752069

WASHER-1.375X.523X.059
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

46

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

47

MTD 1760842

BEARING-AXLE

$

$

Not available

48

MTD 1755524

AXLE-DRIVE

$

$

Not available

49

Troy-Bilt 1186387

NUT-HFLK 10-24

$

$

Not available

50

0

REAR WHEEL AND TIRE ASSEMBLY

$

$

Not available

50

Troy-Bilt 1759081

ASSM-REAR TIRE & WHEEL (A)

$

$

Currently unavailable

50

MTD 1761981

ASSM-TIRE & WHEEL (B)

$

$

Not available

51

0

SHOULDER SCREW

$

$

Not available

51

MTD 1747102

BOLT

$

$

Not available

51

Troy-Bilt 1762019

SCR-SHLDR 3/8-16 (B)
(Superseded to 1763219)

$10.99

$

In Stock, only 2 left!

0

52

MTD 1755406

SPRING-COMPRESSION

$

$

Not available

53

MTD 1755407

SPACER

$

$

Not available

54

Troy-Bilt 1755402001

BRKT-HANDLEBAR

$

$

Not available

55

MTD 1755403001

SUPPORT-HANDLE RH

$

$

Not available

56

MTD 1755404001

SUPPORT-HANDLE LH

$

$

Not available

57

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

58

Troy-Bilt 1744708

NUT-HFT/LK

$

$

Not available

59

0

NOT USED

$

$

Not available

60

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

62

MTD 1743277

BRACKET-AXLE

$

$

Not available

63

0

NOT USED

$

$

Not available

64

Troy-Bilt 1743265

BRKT-HGT ADJ

$

$

Currently unavailable

65

Troy-Bilt 1743266

SCR-HGT ADJ

$

$

Currently unavailable

66

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

67

MTD 1185425

RING-RET "E" .668 ID

$

$

Not available

68

0

NOT USED

$

$

Not available

69

Troy-Bilt 1759497

CHANNEL-ADJUST SCR

$

$

Currently unavailable

70

Troy-Bilt 1753347

SPACER

$

$

Currently unavailable

71

MTD 1754149

HANDLE-HEIGHT ADJ

$

$

Not available

72

0

NOT USED

$

$

Not available

73

Troy-Bilt 1752461

SCR-HW M10-24X.88 EXTTOOTH

$4.99

$

In Stock, Qty 13

0

74

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK {8656}
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

75

MTD 1740012

CLAMP-WIRE {8656}

$

$

Not available

76

MTD 1756582

DECAL-CHARGING INST {8656}

$

$

Not available

77

MTD 1756549

PAD-BATTERY {8656}

$

$

Not available

78

Troy-Bilt 1745780

NUT-HGT ADJUSTMENT

$

$

Currently unavailable

79

0

INDICAATOR SCALE DECAL

$

$

Not available

79

MTD 1758096

DECAL-INDICATOR SCALE (A)

$

$

Not available

80

Troy-Bilt 1761932

KIT-HEIGHT ADJ LINK

$

$

Currently unavailable

81

0

SHOULDER BOLT

$

$

Not available

81

MTD 1743278

BOLT-SHOULDER GR. 5 (A)

$

$

Not available

81

MTD 1760971

SCR-SHOULDER (B)

$

$

Not available

82

Troy-Bilt 1736069

TUBING-PLASTIC

$

$

Currently unavailable

83

Troy-Bilt 1731025

SCR-CURVED HD 5/16-18X2.0
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

84

MTD 1185872

SCR-TRUSS HD 5/16-18X.62

$

$

Not available

85

Troy-Bilt 1708850

WASHER-RUBBER

$

$

Not available

86

0

NYLINER BEARING (B)

$

$

Not available

86

MTD 1761046

BEARING-NYLINER

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days
