865 (865314) - Cub Cadet 26" Snow Thrower (1984) Brake Linkage & Drive Idler Bracket Assemblies Parts Diagram

26" Snow Thrower

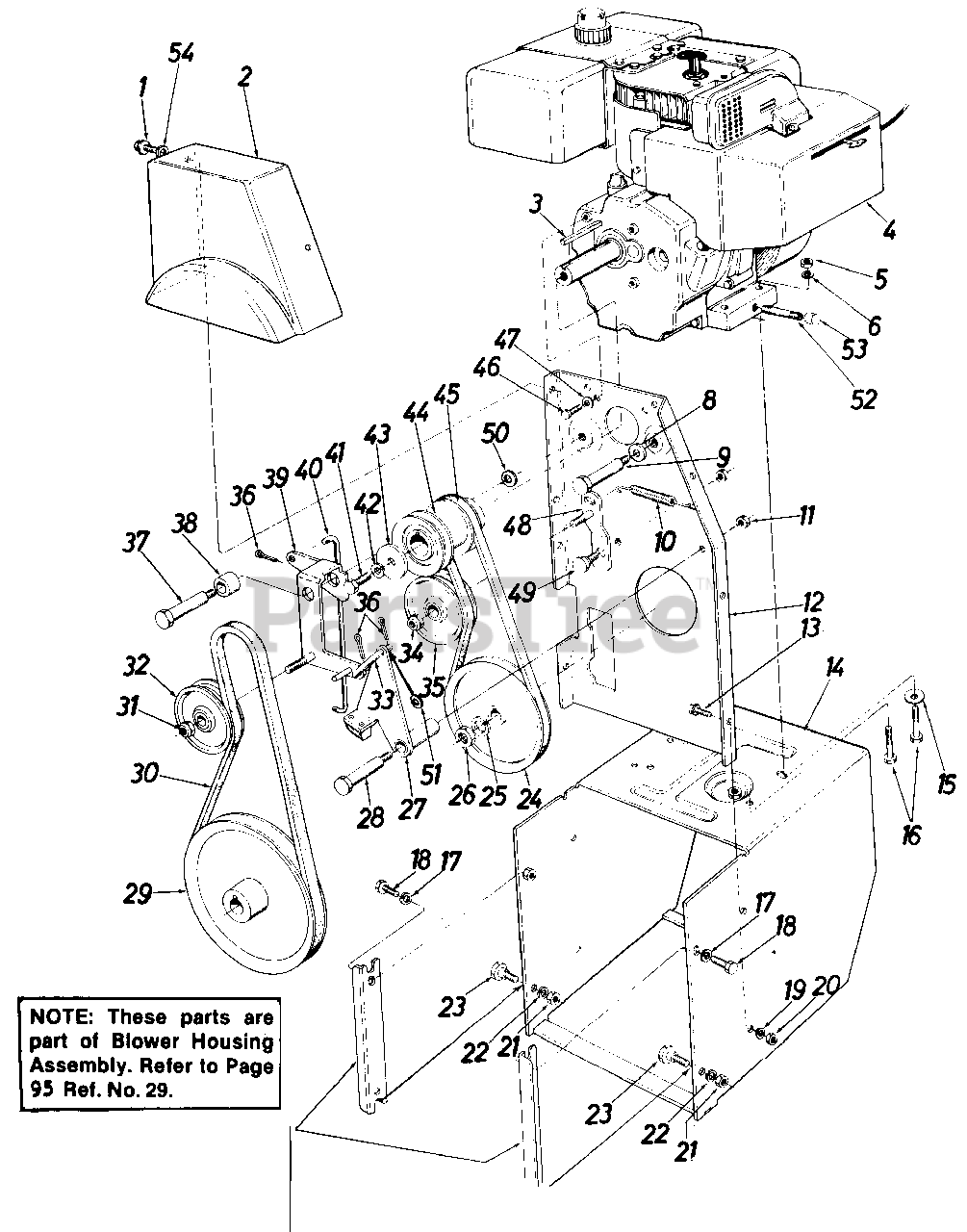

Brake Linkage & Drive Idler Bracket Assemblies Parts Diagram

  • Title

1

Cub Cadet 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-0321

Belt Cover
(Superseded to 931-2531)

$51.99

$

In Stock, only 1 left!

0

3

Cub Cadet 714-0118

Sq. Key 1/4" x 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

4

Engine

$

$

Not available

5

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0105

Bell-Wash. .40 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 738-0215

Shld. Scr. .498" Dia. x 3.00" Lg.
(Superseded to 738-0215A)

$9.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-0303

Ext. Spring .38 O.D. x 3.18" Lg.
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 11

0

11

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet 05491

Engine Brkt. Ass'y.

Note: Color Code - 452

$

$

Not available

13

Cub Cadet 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

14

Cub Cadet 05806

Frame Ass'y.

Note: Color Code - 452

$

$

Currently unavailable

15

Cub Cadet 736-0264

Fl-Wash. .345 I.D. x .75 O.D. x .060

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-0380

Hex Scr. 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0217

L-Wash. 3/8" Scr. H.D.

$4.49

$

In Stock, Qty 6

0

18

Cub Cadet 710-0555

Pilot Scr. 3/8-16 x,88" Lg.
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

19

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 736-0217

L-Wash. 3/8" Scr. H.D.

$4.49

$

In Stock, Qty 6

0

23

Cub Cadet 738-0143

Shld. Scr. .498" Dia. x .340" Lg.

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 756-0344

V-Pulley .628 I.D. x 7.50 O.D.

$81.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0158

L-Wash. for 5/8" Scr.

$4.49

$

In Stock, Qty 11

0

26

Cub Cadet 712-0221

Hex Ins. Jam L-Nut 5/8-18 Thd.

$

$

Not available

27

Cub Cadet 05510

Brake Brkt. Ass'y.
(Superseded to 05510A)

$

$

Not available

28

Cub Cadet 738-0129

Shld. Scr. .498" Dia. x 2.00" Lg.

$11.99

$

In Stock, only 1 left!

0

29

Cub Cadet 756-0243

V-Pulley .875 I.D. x 10.12 O.D.

$94.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 754-0194

"V"-Belt 1/2" x 45.0" Lg.
(Superseded to 954-0194)

$29.99

$

In Stock, Qty 5

0

31

Cub Cadet 712-0116

Hex Ins. Jam Nut L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

32

Cub Cadet 756-0240

Fl-Idler w/Flanges 3.0 O.D.

$

$

Not available

33

Cub Cadet 05531

Brake Linkage Ass'y.

$

$

Not available

34

Cub Cadet 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

35

Cub Cadet 756-0240

3.0" O.D. Fl-Idler w/Flanges

$

$

Not available

36

Cub Cadet 714-0104

Int. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0282

Shld. Scr. .625 Dia. x 2.750" Lg.

$

$

Not available

38

Cub Cadet 750-0227

Spacer .63 I.D. x .75 O.D. x 1.00" Lg.

$

$

Currently unavailable

39

Cub Cadet 05493

Blower Idler Brkt. Ass'y.

Variations

Cub Cadet 05493-0637

BRACKET ASSEMBLY-BLOWER IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

$

$

Currently unavailable

41

Cub Cadet 710-0191

Hex Scr. 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

42

Cub Cadet 736-0217

L-Wash. 3/8" Scr. H.D.

$4.49

$

In Stock, Qty 6

0

43

Cub Cadet 07386

Fl-Wash.

$

$

Not available

44

Cub Cadet 756-0241

Engine Pulley - Double Groove
(Superseded to 756-0241B)

$99.99

$

In Stock, only 4 left!

0

45

Cub Cadet 754-0131

"V"-Belt 3/8 x 35.5" Lg.
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 7

0

46

Cub Cadet 710-0627

Hex L-Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 05495

Drive Idler Brkt. Ass'y.

$

$

Currently unavailable

49

Cub Cadet 738-0281

Shld. Scr. - .625" Dia. x .170" Lg.

$10.99

$

In Stock, only 2 left!

0

50

Cub Cadet 736-0219

Bell-Wash. .40 I.D. x 1.12 O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-0264

Fl-Wash. .34 I.D. x .750 O.D. x .05

$6.99

$

In Stock, only 2 left!

0

52

Cub Cadet 737-0147

Pipe Nipple - 3/8" Pipe Thd. x 3.00" Lg.

$

$

Not available

53

Cub Cadet 737-0143

Hex Scr. 1/4-18 Pipe Thd.

$

$

Not available

54

Cub Cadet 736-0159

Fl-Wash. .340 I.D. x .88 O.D. x .62

$4.49

$

In Stock, Qty 20+

0
