865 (865314) - Cub Cadet 26" Snow Thrower (1984) Blower Housing, Spiral And Chute Assemblies Parts Diagram

26" Snow Thrower

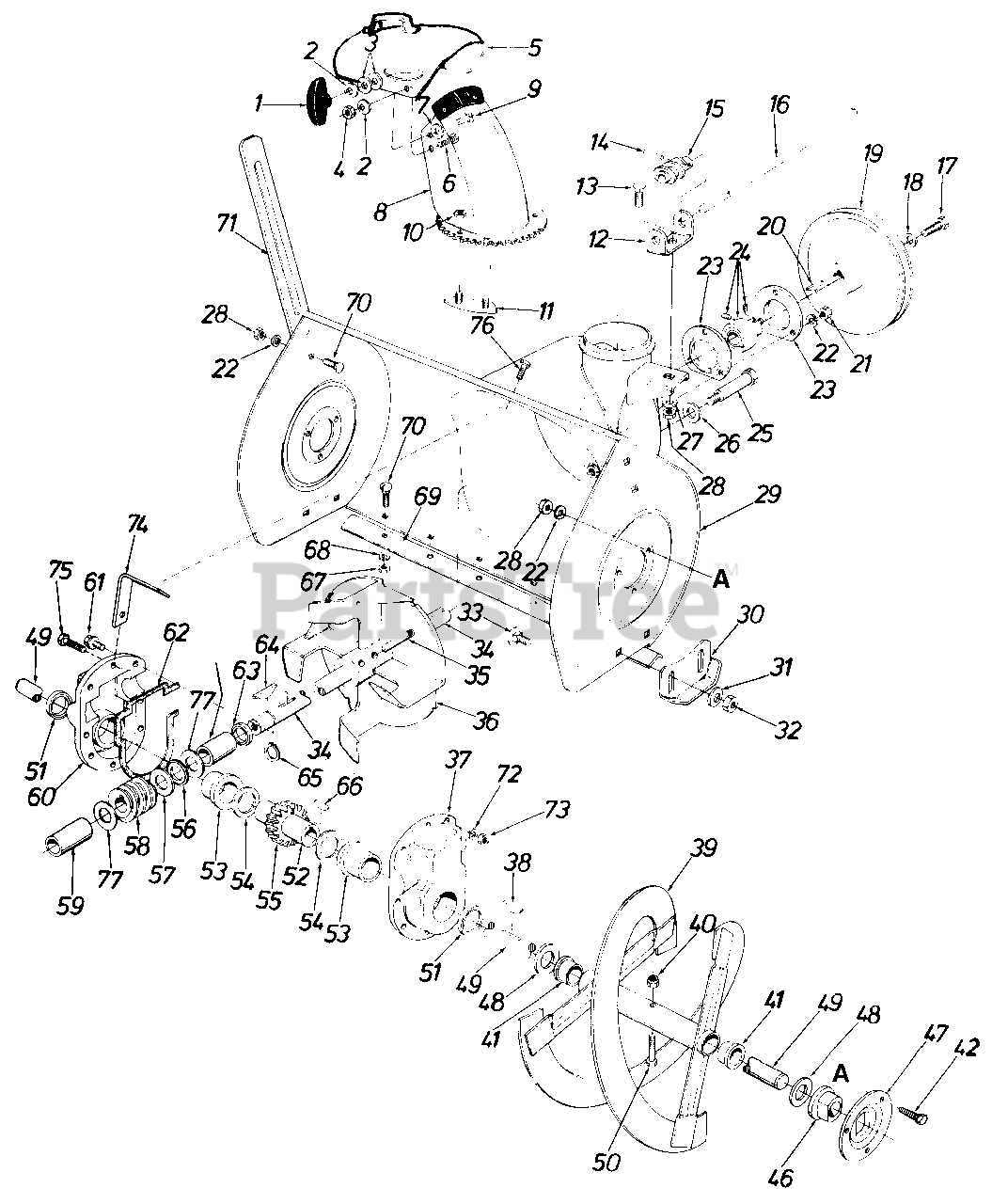

Blower Housing, Spiral And Chute Assemblies Parts Diagram

  • Title

1

Cub Cadet 09966

Hand Knob Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0231

Fl-Wash. .312 I.D. x 1.125 O.D. x .125

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

5

Cub Cadet 05225

Top Chute Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

6

Cub Cadet 710-0260

Carr. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0179

Fl-Wash. .53 I.D. x 1.25 O.D. x .100

$4.99

$

In Stock, only 2 left!

0

8

Cub Cadet 05848

Chute Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

9

Cub Cadet 710-0276

Carr. Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0107

Hex Cent. L-Nut 1/2-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

Cub Cadet 05783

Chute Flange Keeper Ass'y.

$

$

Not available

12

Cub Cadet 05515

Chute Brkt.

$

$

Currently unavailable

13

Cub Cadet 710-0260

Carr. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 715-0103

Spring Pin Roll 1/8" Dia. x .75" Lg.

$

$

Not available

15

Cub Cadet 717-0301

Worm - R.H. w/Three Threads

$

$

Currently unavailable

16

Cub Cadet 747-0153

Chute Crank .38" Dia. x 41.0" Lg.

$

$

Currently unavailable

17

Cub Cadet 710-0371

Hex L-Scr. 5/16-18 x .88" Lg.
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

18

Cub Cadet 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 756-0243

V-Pulley .875 I.D. x 10.12 O.D.

$94.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 12

0

21

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 05244

Bearing Hsg. - Self Aligning Brg.
(Superseded to 05244B)

$23.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-0185

Self Aligning Brg. .875 I.D.
(Superseded to 941-0185)

$66.99

$

In Stock, only 1 left!

0

25

Cub Cadet 711-0640

Stud 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 05473

Blower Hsg. Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

30

Cub Cadet 05571

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

In Stock, only 2 left!

0

31

Cub Cadet 736-0105

Bell-Wash. .400 I.D. x .88 OD x.060

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

33

Cub Cadet 710-0389

Carr. Bolt 3/8-16 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 738-0276

Blower Axle

$102.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

36

Cub Cadet 05812

Blower Fan Ass'y.

Note: Color Code - 499

Variations

Cub Cadet 05812-0637

FAN ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 717-0297

Complete Gear Hsg. Half - L.H.
(Superseded to 753-0889)

$

$

Not available

38

Cub Cadet 714-0135

#91 Woodruff Key 1/4" x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

39

Cub Cadet 05463

Spiral Ass'y.- L.H.

Note: Color Code - 498

Variations

Cub Cadet 05463-0637

SPIRAL ASSEMBLY (LH)-26I - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 05464

Spiral Ass'y.- R.H.

Note: Color Code - 498

Variations

Cub Cadet 05464-0637

SPIRAL ASSEMBLY (RH)-26I - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 05136

Plastic Bushing

$

$

Not available

42

Cub Cadet 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

46

Cub Cadet 741-0244

Flange Brg. w/Flats 1.00" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

47

Cub Cadet 05845

Bearing Hsg.- Spiral Hsg.
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 1 left!

0

48

Cub Cadet 736-0250

Fl-Wash. 1.06 I.D. x 1.75" O.D.x .100

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 738-0490

Spiral Axle - 26"

$

$

Not available

50

Cub Cadet 710-0380

Hex Scr. 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

51

Cub Cadet 721-0146

Oil Seal 1.50" I.D.
(Superseded to 921-0146)

$12.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 741-0182

Flange Brg. 1.503 I.D.

$

$

Not available

54

Cub Cadet 736-0266

Fl-Wash. 1.50 I.D. x 2.00 O.D. x .030
(Superseded to 936-0266)

$

$

Not available

55

Cub Cadet 717-0300

Double Threaded Worm Gear
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

56

Cub Cadet 741-0184

Thrust Brg. .88 I.D. x 1.44 O.D x .078

$16.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 736-0291

Fl-Wash. .88 I.D. x 1.40 O.D. x .150

$11.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 717-0299

Double Threaded Worm - L.H.
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

59

Cub Cadet 741-0217

Sleeve Brg .875 I.D.
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 7

0

60

Cub Cadet 717-0298

Complete Gear Hsg. Half - R.H.
(Superseded to 753-0889)

$

$

Not available

61

Cub Cadet 710-0376

Hex Scr. 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

62

Cub Cadet 721-0144

Gasket
(Superseded to 921-0144)

$11.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 721-0145

Oil Seal .875" I.D.
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 12

0

65

Cub Cadet 716-0111

Snap Ring for .875" Dia. Shaft

$6.99

$

In Stock, only 4 left!

0

66

Cub Cadet 714-0135

#91 Woodruff Key 1/4 x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

67

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

69

Cub Cadet 05000

Shave Plate
(Superseded to 05000-0637)

Variations

Cub Cadet 05000-0637

Shave Plate - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

70

Cub Cadet 710-0260

Carr. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 05139

Drift Cutter
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 736-0271

Wave Wash. 5/16" Scr.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

73

Cub Cadet 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 05760

Gear Hsg. Support Brkt.

$

$

Currently unavailable

75

Cub Cadet 710-0528

Hex Scr. 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 19

0

76

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 736-0291

Fl-Wash. .88 I.D. x 1.40 O.D. x .150

$11.99

$

Usually ships in 3-6 days
