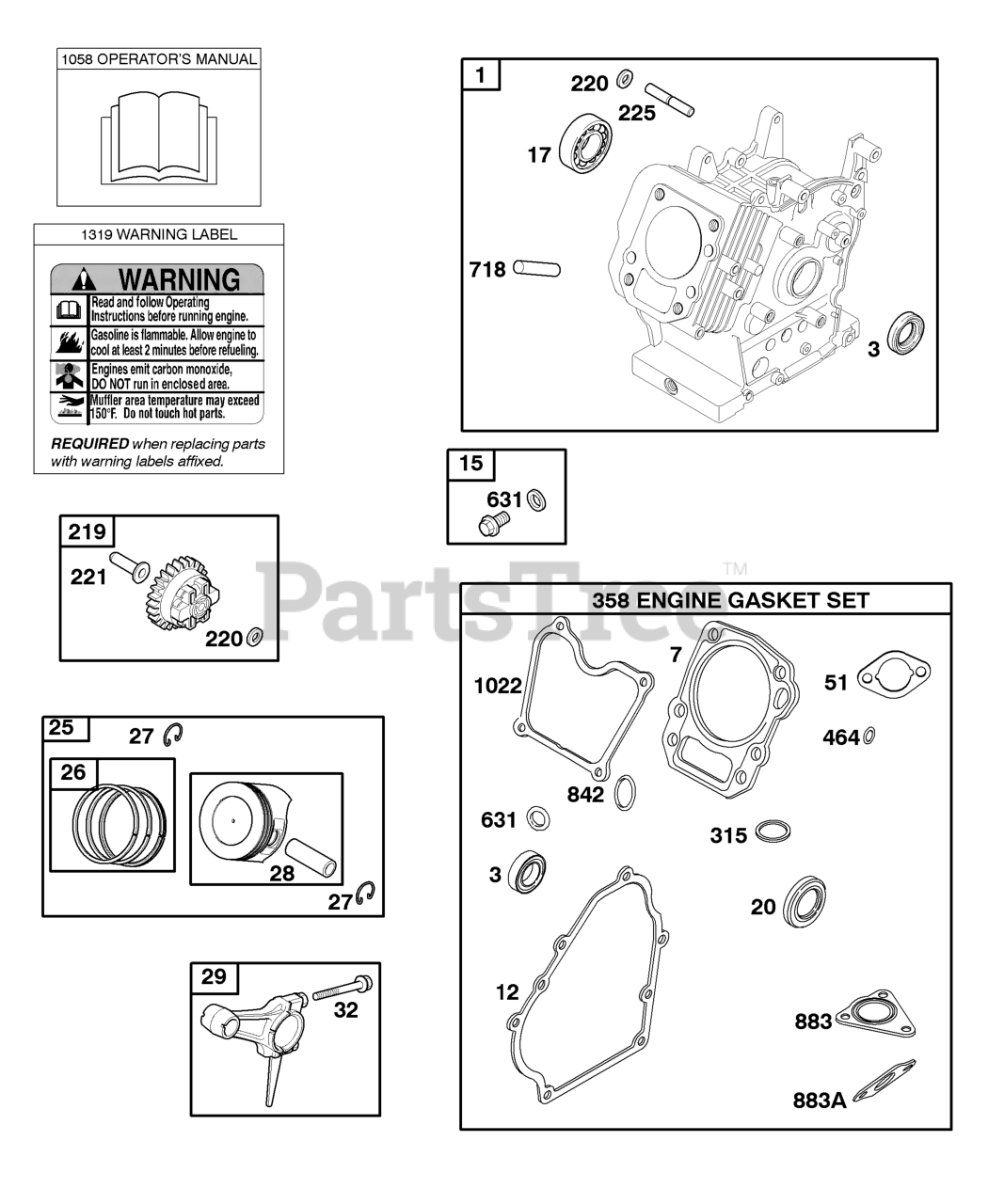

86432-0146-B1 - Briggs & Stratton Horizontal Engine Cylinder, Gasket Set-Engine, Operator's Manual, Piston, Rings, Connecting Rod, Warning Label Parts Diagram

Horizontal Engine

Cylinder, Gasket Set-Engine, Operator's Manual, Piston, Rings, Connecting Rod, Warning Label Parts Diagram

  • Title

1

Briggs & Stratton 716050

Cylinder Assembly

$372.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 710103

Seal-Oil

Note: (Magneto Side)

$8.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 711732

Gasket-Cylinder Head

$13.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 711752

Gasket-Crankcase

$9.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 715811

Plug-Oil Drain

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 711728

Bearing-Ball

$26.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 712070

Seal-Oil

Note: (PTO Side)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 716063

Piston Assembly

Note: (.020 Oversize)

$88.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 716061

Piston Assembly

Note: (Standard)

$81.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 715062

Ring Set

Note: (.020 Oversize)

$37.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 715060

Ring Set

Note: (Standard)

$40.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 711494

Lock-Piston Pin

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 711733

Pin-Piston

Note: (Standard)

$11.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 716059

Rod-Connecting

Note: (Standard)

$73.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 710041

Screw

Note: (Connecting Rod)

$6.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 710060

Gasket-Intake

$4.49

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 715679

Gear-Governor

$

$

Not available

220

Briggs & Stratton 710545

Washer

Note: (Governor Gear)

$4.99

$

In Stock, only 1 left!

0

221

Briggs & Stratton 710027

Cup-Governor
(Superseded to 710872)

$5.99

$

Usually ships in 2-12 days

0

225

Briggs & Stratton 710028

Shaft-Governor Gear

$18.99

$

Usually ships in 2-12 days

0

315

Briggs & Stratton 710072

Seal-O Ring

Note: (Filter Bowl)

$6.99

$

In Stock, only 2 left!

0

358

Briggs & Stratton 716070

Gasket Set-Engine

$44.99

$

Usually ships in 2-12 days

0

464

Briggs & Stratton 710069

Seal-O Ring

Note: (Fuel Shut-off Valve)

$

$

Not available

631

Briggs & Stratton 711188

Washer

Note: (Oil Drain Plug)

$4.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 710005

Pin-Locating

$5.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 711521

Seal-O Ring

Note: (Dipstick Tube)

$5.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 711245

Gasket-Exhaust

$6.99

$

Usually ships in 2-12 days

0

883A

Briggs & Stratton 711244

Gasket-Exhaust

$6.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 711490

Gasket-Rocker Cover

$7.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton MS3824

Operator's Manual
(Superseded to 279775WST)

$8.49

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0
