862 (590-862-100) - Cub Cadet 48" Mulch Kit att2 General Assembly Parts Diagram

48" Mulch Kit

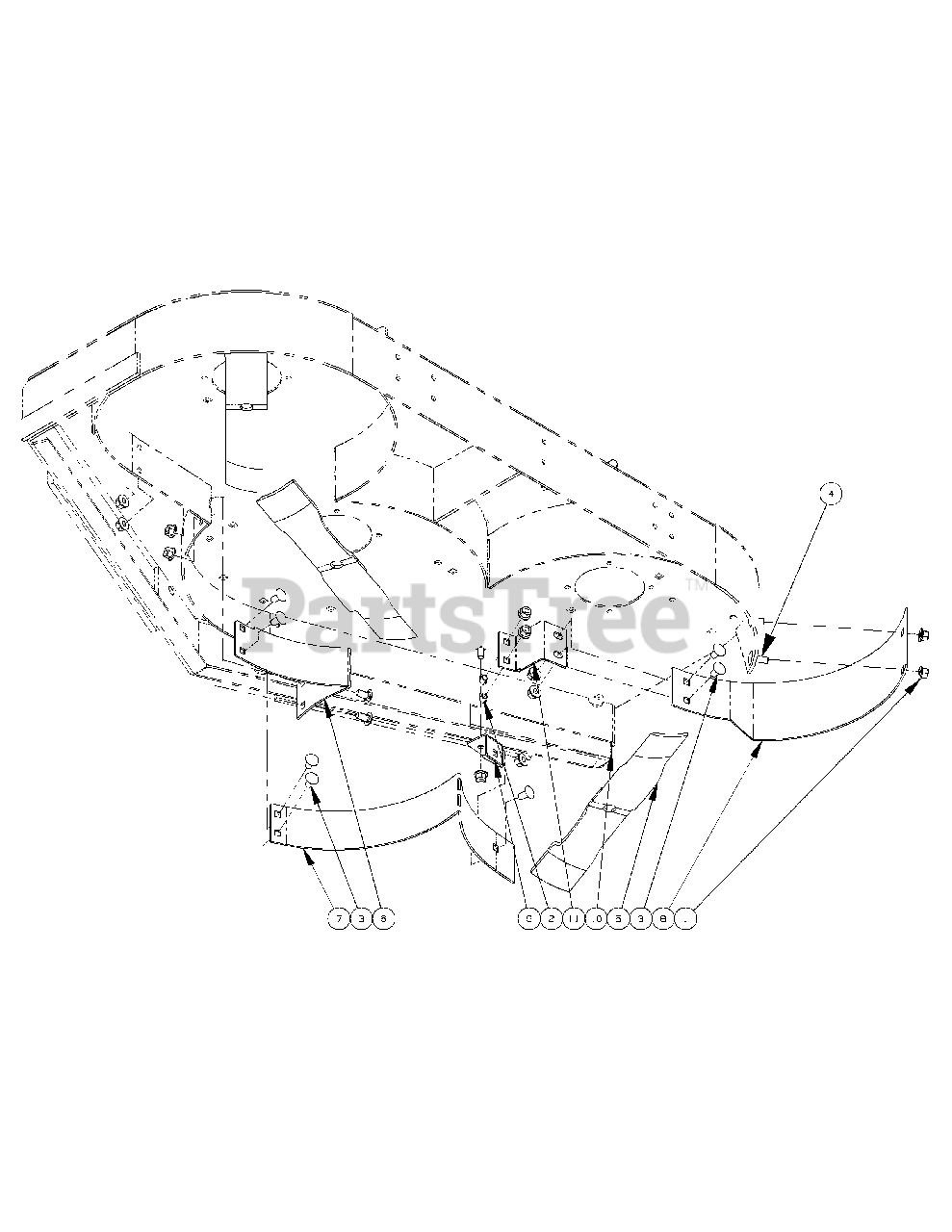

General Assembly Parts Diagram

  • Title
1

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 01000368

HHCS, 3/8-16 x .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

3

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 7

0

5

Cub Cadet 01005379

Blade, Mulch 17.0, 0.756 ID
(Superseded to 942-04278A)

$39.99

$

In Stock, Qty 6

0

6

Cub Cadet 02000882

Mulching Baffle, LH

$

$

Not available

7

Cub Cadet 02000883

Mulching Baffle, Center

$

$

Not available

8

Cub Cadet 02000881

Mulching Baffle, RH

$80.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 02000880

Mulching Bracket, Center

$33.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 02001480

Mulch Plug Baffle

$

$

Not available

11

Cub Cadet 02001615

Mulching Bracket, RH

$

$

Not available
