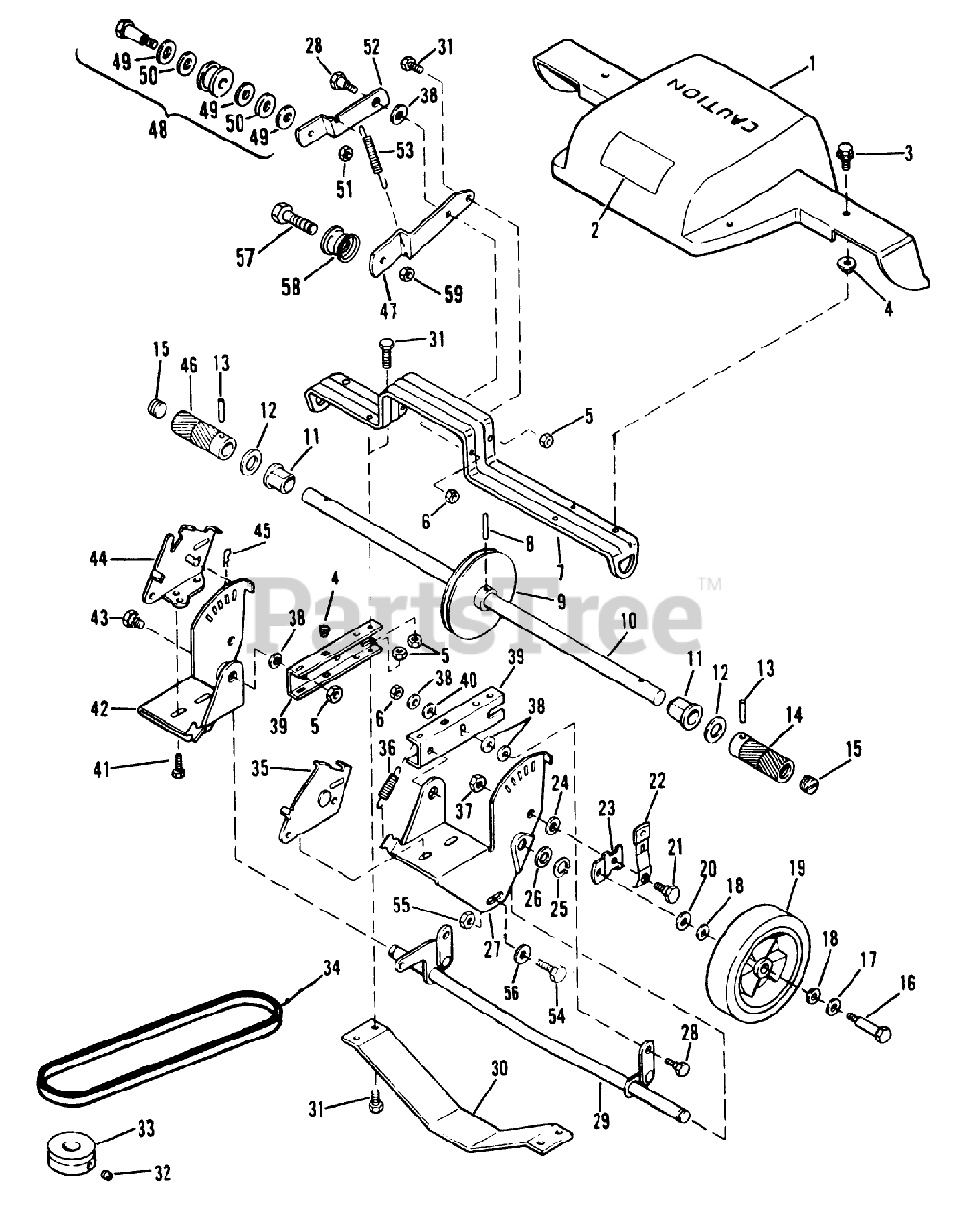

8603 - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) Drive Group Utility Model 8602 Self-Propelled Parts Diagram

Walk-Behind Mower

Drive Group Utility Model 8602 Self-Propelled Parts Diagram

  • Title

1

Lawn-Boy 681891

COVER & DECAL AY

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$157.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 145027

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 610066

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

4

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$0.99

$

In Stock, Qty 13

0

5

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 602201

STOP NUT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 610752

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

8

Lawn-Boy 311866

ROLL PIN

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 610035

PULLEY

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$173.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 610753

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

11

Lawn-Boy 681904

SLEEVE &BEARING AY

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

12

Lawn-Boy 603037

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 608013

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

14

Lawn-Boy 610051

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

15

Lawn-Boy 602926

GREASE PLUG

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$12.99

$

In Stock, Qty 6

0

16

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 678638

See Supercession: 682972
(Superseded to 682972)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$26.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 610646

BOLT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 682231

KNOB&SPRING FORMCO

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 610037

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

24

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 607676

RET RING

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.49

$

In Stock, Qty 6

0

26

Lawn-Boy 610034

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

27

Lawn-Boy 610031

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

28

Lawn-Boy 602984

BOLT RB&W

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

29

Lawn-Boy 681894

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

30

Lawn-Boy 610084

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

31

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

32

Lawn-Boy 610345

SET SCREW F

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$8.49

$

In Stock, Qty 5

0

33

Lawn-Boy 609976

PULLEY F

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$96.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 610040

V-BELT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$30.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 682192

DISCONTINUED
(Superseded to 681778)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

36

Lawn-Boy 610007

SPRING

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

37

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 603093

WASHER S

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

39

Lawn-Boy 609997

See Supercession: 611573
(Superseded to 611573)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

40

Lawn-Boy 603123

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

41

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

42

Lawn-Boy 610030

See Supercession: 611274
(Superseded to 611274)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 607665

BOLT RB&W

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 682193

See Supercession: 681779
(Superseded to 681779)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

45

Lawn-Boy 605803

HAIR PIN

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

46

Lawn-Boy 610050

R.H. DRIVE ROLLER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

47

Lawn-Boy 145150

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

48

Lawn-Boy 682374

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

49

Lawn-Boy 608030

THRUST WASHER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

50

Lawn-Boy 610719

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

51

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 610006

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

53

Lawn-Boy 610029

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

54

Lawn-Boy 610404

See Supercession: 146209
(Superseded to 146209)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 610405

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

57

Lawn-Boy 302600

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

58

Lawn-Boy 607978

PULLEY IDLER NHI

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$27.99

$

In Stock, only 1 left!

0

59

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, only 2 left!

0
