8603 - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) Deck And Handle Group Scamp Push Model 4503 Parts Diagram

Walk-Behind Mower

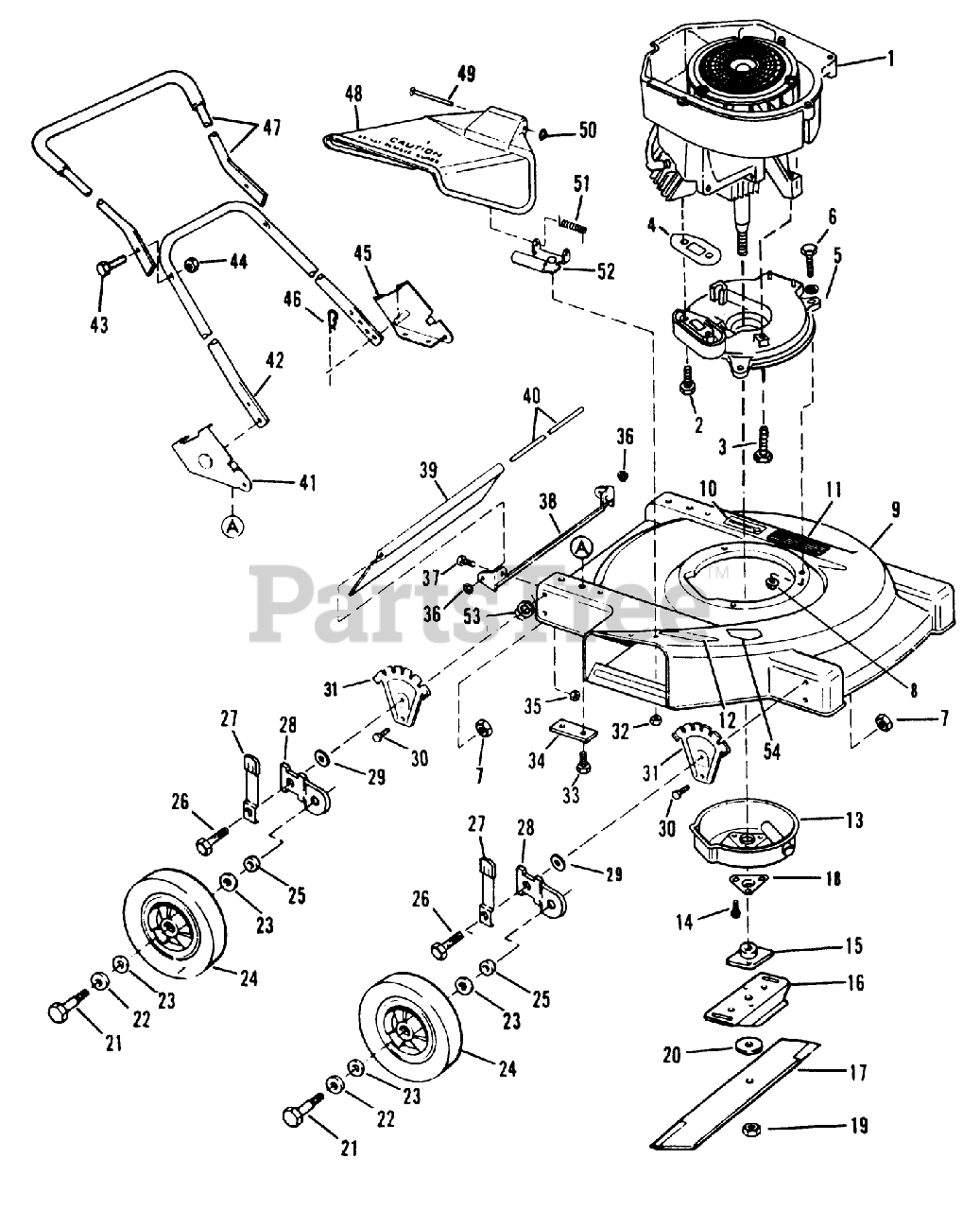

Deck And Handle Group Scamp Push Model 4503 Parts Diagram

  • Title

1

Lawn-Boy 682657

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

1

Lawn-Boy 682657

DISCONTINUED

Note: F340 engine supplied less shroud and tank assembly.

$

$

Not available

2

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 609994

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

4

Lawn-Boy 610367

See Supercession: 613755
(Superseded to 613755)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 609989

PLATE,MUFFLER F

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$161.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 8

0

8

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 681967

DISCONTINUED
(Superseded to 682792)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

10

Lawn-Boy 609993

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

11

Lawn-Boy 609961

PAD FOOT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

12

Lawn-Boy 610054

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 681902

See Supercession: 682873-03
(Superseded to 682873-03)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

14

Lawn-Boy 609471

SCREW

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, Qty 14

0

15

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 603541

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

17

Lawn-Boy 521725

BLADE EURO WHIRL

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$112.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 609980

SUPPORT F

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

19

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 605058

WASHER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.99

$

In Stock, Qty 12

0

21

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 678637

See Supercession: 131-4520
(Superseded to 131-4520)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 610646

BOLT

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 682231

KNOB&SPRING FORMCO

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 610039

See Supercession: 323-4
(Superseded to 323-4)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 609979

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

32

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

34

Lawn-Boy 609962

See Supercession: 612337
(Superseded to 612337)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

35

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

36

Lawn-Boy 609975

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

37

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

38

Lawn-Boy 610027

BRACKET (12)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

39

Lawn-Boy 610025

TRAILING SHIELD

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$99.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 610026

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

41

Lawn-Boy 682193

See Supercession: 681779
(Superseded to 681779)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

42

Lawn-Boy 611112

See Supercession: 611113
(Superseded to 611113)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 610096

SCREW - USE 137-3042

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

44

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

45

Lawn-Boy 682192

DISCONTINUED
(Superseded to 681778)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

46

Lawn-Boy 605803

HAIR PIN

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

47

Lawn-Boy 682195

DISCONTINUED
(Superseded to 608094)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

48

Lawn-Boy 681880

CHUTE DEFLECTOR AY

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$296.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 610016

PIN

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$55.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 610017

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

51

Lawn-Boy 610015

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

52

Lawn-Boy 681879

HINGE & SCREW ATA

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

53

Lawn-Boy 609923

WASHER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

54

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$6.99

$

In Stock, Qty 6

0
