8602 - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) DRIVE GROUP UTILITY MODEL 8602 SELF-PROPELLED Parts Diagram

Walk-Behind Mower

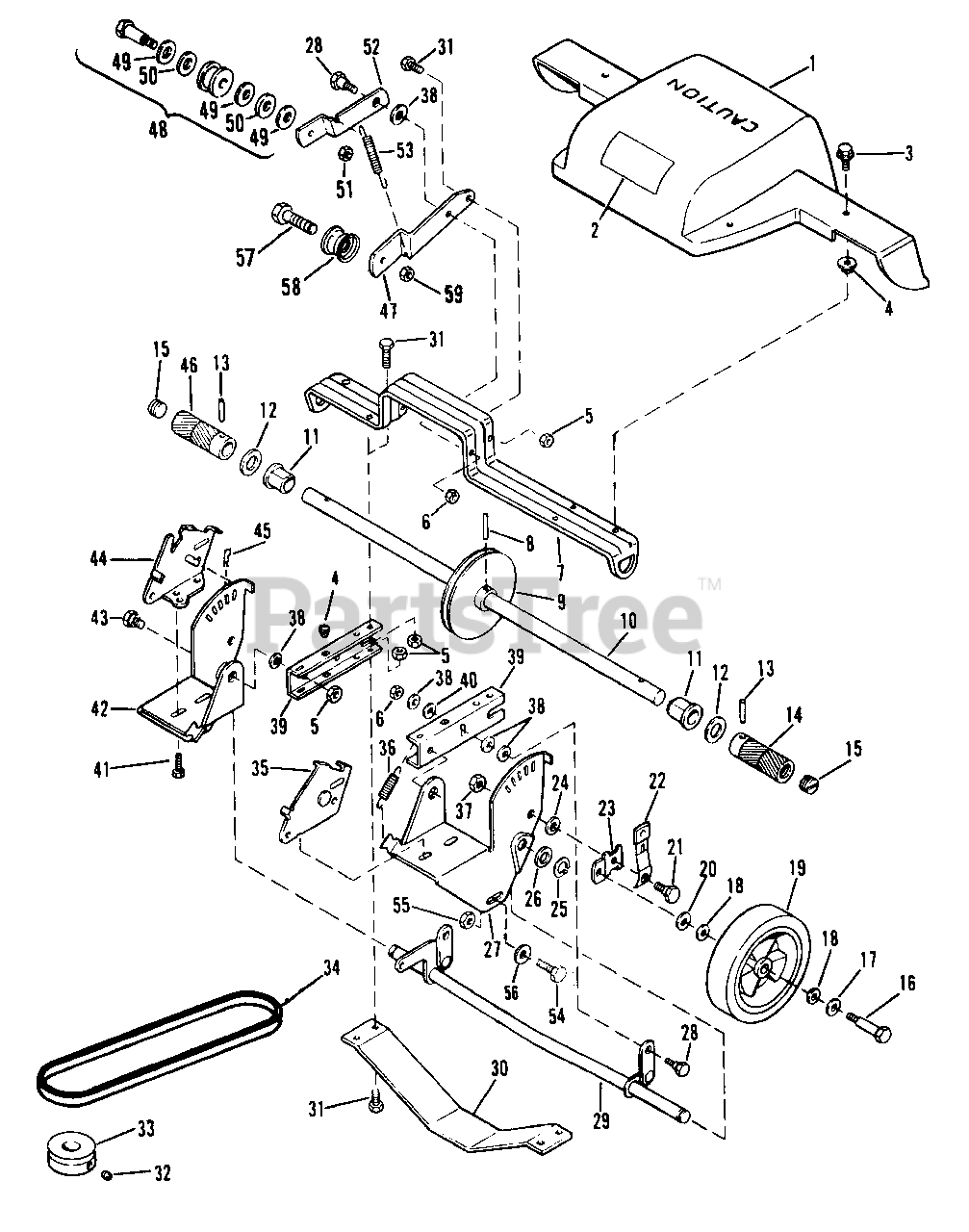

DRIVE GROUP UTILITY MODEL 8602 SELF-PROPELLED Parts Diagram

  • Title

1

Lawn-Boy 681891

Cover & Decal Ay.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$157.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 145027

Decal-Belt Inst.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 610066

Screw-Drive Cover

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

4

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$0.99

$

In Stock, Qty 13

0

5

Lawn-Boy 602315

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 602201

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 610752

Bracket-Bearing

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

8

Lawn-Boy 311866

Roll Pin

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 610035

Pulley

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$173.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 610753

Shaft

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

11

Lawn-Boy 681904

Sleeve & Bearing Ay.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

12

Lawn-Boy 603037

Washer (24)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 608013

Pin-Spring

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

14

Lawn-Boy 610051

Drive Roller-Left

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

15

Lawn-Boy 602926

Plug

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$12.99

$

In Stock, Qty 6

0

16

Lawn-Boy 603441

Bolt-Wheel

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 605256

Washer-Wheel Bolt Head

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 678638

Wheel & Tire Ay.-Rear
(Superseded to 682972)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$26.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 603620

Washer-Wheel Bolt

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 682231

Knob & Spring Ay.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 610037

Bracket-Height Adj. Rear

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

24

Lawn-Boy 608834

Washer-Rear Ht. Adj.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.49

$

In Stock, Qty 6

0

26

Lawn-Boy 610034

Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

27

Lawn-Boy 610031

Support Bracket-Left

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

28

Lawn-Boy 602984

Bolt-Shoulder

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

29

Lawn-Boy 681894

Clutch Shaft Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

30

Lawn-Boy 610084

Pulley Guard

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

31

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

32

Lawn-Boy 610345

Setscrew

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$8.49

$

In Stock, Qty 5

0

33

Lawn-Boy 609976

Pulley-Engine

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$96.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 610040

V-Belt

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$30.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 682192

Handle Bracket & Pin Ay. L.H.
(Superseded to 681778)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

36

Lawn-Boy 610007

Spring-Neutral Return

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

37

Lawn-Boy 603773

Nut-Shoulder Bolt, Height Adj.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 603093

Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

39

Lawn-Boy 609997

Arm-Pivot
(Superseded to 611573)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

40

Lawn-Boy 603123

Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

41

Lawn-Boy 607188

Screw-Hdl. Brket. to Housing

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

42

Lawn-Boy 610030

Support Bracket-Right
(Superseded to 611274)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 607665

Bolt-Shoulder

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 682193

Handle Bracket & Pin Ay. R.H.
(Superseded to 681779)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

45

Lawn-Boy 605803

Hairpin

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

46

Lawn-Boy 610050

Drive Roller-Right

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

47

Lawn-Boy 145150

Idler Arm-Fixed

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

48

Lawn-Boy 682374

Idler Service Ass'y

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

49

Lawn-Boy 608030

Washer-Thrust

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

50

Lawn-Boy 610719

Washer-Felt

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

51

Lawn-Boy 608311

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 610006

Idler Arm-Floating

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

53

Lawn-Boy 610029

Spring-Floating Idler

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

54

Lawn-Boy 610404

Screw
(Superseded to 146209)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 608311

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 610405

Washer

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

57

Lawn-Boy 302600

Screw-Idler

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

58

Lawn-Boy 607978

Pulley-Idler

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$27.99

$

In Stock, only 1 left!

0

59

Lawn-Boy 603773

Nut-Lock

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, only 2 left!

0
