8602 - Lawn-Boy Walk-Behind Mower (SN: 100000001 - 199999999) (1981) DECK AND HANDLE GROUP UTILITY MODEL 8602 SELF-PROPELLED Parts Diagram

Walk-Behind Mower

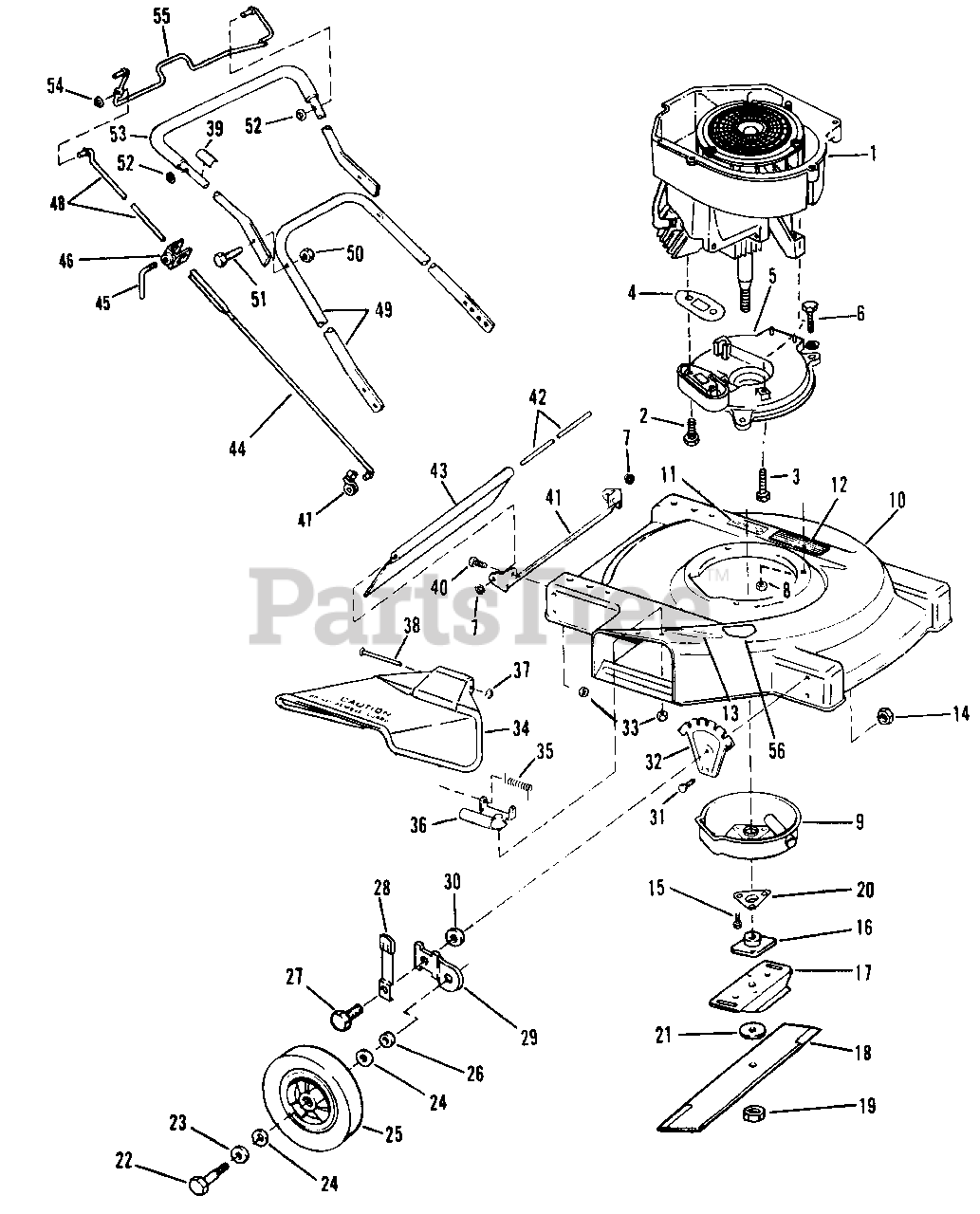

DECK AND HANDLE GROUP UTILITY MODEL 8602 SELF-PROPELLED Parts Diagram

  • Title

1

Lawn-Boy 682657

Engine-F340

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors. F340 engine supplied less shroud and tank assembly.

$

$

Not available

2

Lawn-Boy 607601

Screw-Muffler Plate to Cylinder

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 609984

Screw-Muffler Plate to Cylinder

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Currently unavailable

4

Lawn-Boy 610367

Gasket
(Superseded to 613755)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 610746

Muffler Plate

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

6

Lawn-Boy 604862

Screw-Muffler Plate to Hsg.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 609975

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

8

Lawn-Boy 608311

Locknut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 681902

Muffler Cover Ay.
(Superseded to 682873-03)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

10

Lawn-Boy 681967

Housing Assembly-20"
(Superseded to 682792)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

11

Lawn-Boy 609993

Decal-Starting Pad

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

12

Lawn-Boy 609961

Pad-Starting

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 610054

Decal-Caution Deflector

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

14

Lawn-Boy 603773

Nut-Ht. Adj. & Back-up Plate

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 8

0

15

Lawn-Boy 609471

Screw-Muffler Cover to Plate

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, Qty 14

0

16

Lawn-Boy 677525

Collar & Plate Assembly

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 603541

Stiffener-Blade

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

18

Lawn-Boy 521725

Blade-20"

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$112.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 609980

Support-Crankshaft

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

21

Lawn-Boy 605058

Washer-Blade

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.99

$

In Stock, Qty 12

0

22

Lawn-Boy 603441

Bolt-Wheel

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 605256

Washer-Wheel Bolt Head

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 678637

Wheel & Tire Ay.-Front
(Superseded to 131-4520)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 603620

Washer-Wheel Bolt

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 682231

Knob & Spring Ay.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 608833

Height Adj. Brkt.-Front
(Superseded to 608833-03)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 608834

Washer-Height Adjust

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 610039

Screw-Ht. Adj. Brkt. to Hsg.
(Superseded to 323-4)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 609979

Plate-Ht. Adj. Back-up

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

33

Lawn-Boy 602315

Nut-Chute Deflector & Trailing Shield

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 681880

Chute Deflector Ay.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$296.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 610015

Spring

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

36

Lawn-Boy 681879

Hinge & Screw Ay.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

37

Lawn-Boy 610017

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

38

Lawn-Boy 610016

Pin-Hinge

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$55.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 610544

Decal

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

40

Lawn-Boy 609891

Screw-Trailing Shield
(Superseded to 700138)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

41

Lawn-Boy 610027

Bracket-Trailing Shield

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

42

Lawn-Boy 610026

Rod-Trailing Shield

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 610025

Trailing Shield

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$99.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 682236

Control Rod Assembly
(Superseded to 681872)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

45

Lawn-Boy 603699

Lever

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

46

Lawn-Boy 602992

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

47

Lawn-Boy 610090

Clip

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

48

Lawn-Boy 610543

Control Rod

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

49

Lawn-Boy 611112

Handle Section-Bottom
(Superseded to 611113)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

50

Lawn-Boy 602315

Nut Handle

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

51

Lawn-Boy 610096

Screw-Handle

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

52

Lawn-Boy 605546

Nut
(Superseded to 32112-11)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

53

Lawn-Boy 682234

Handle & Grip Ay.

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

54

Lawn-Boy 609975

Nut

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

55

Lawn-Boy 610542

Lever-Control
(Superseded to 610755)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

56

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not be available in matching colors.

$6.99

$

In Stock, Qty 6

0
