860 SE (1691777) - Simplicity 24" Snow Thrower, 8hp Auger Drive Group Parts Diagram

24" Snow Thrower, 8hp

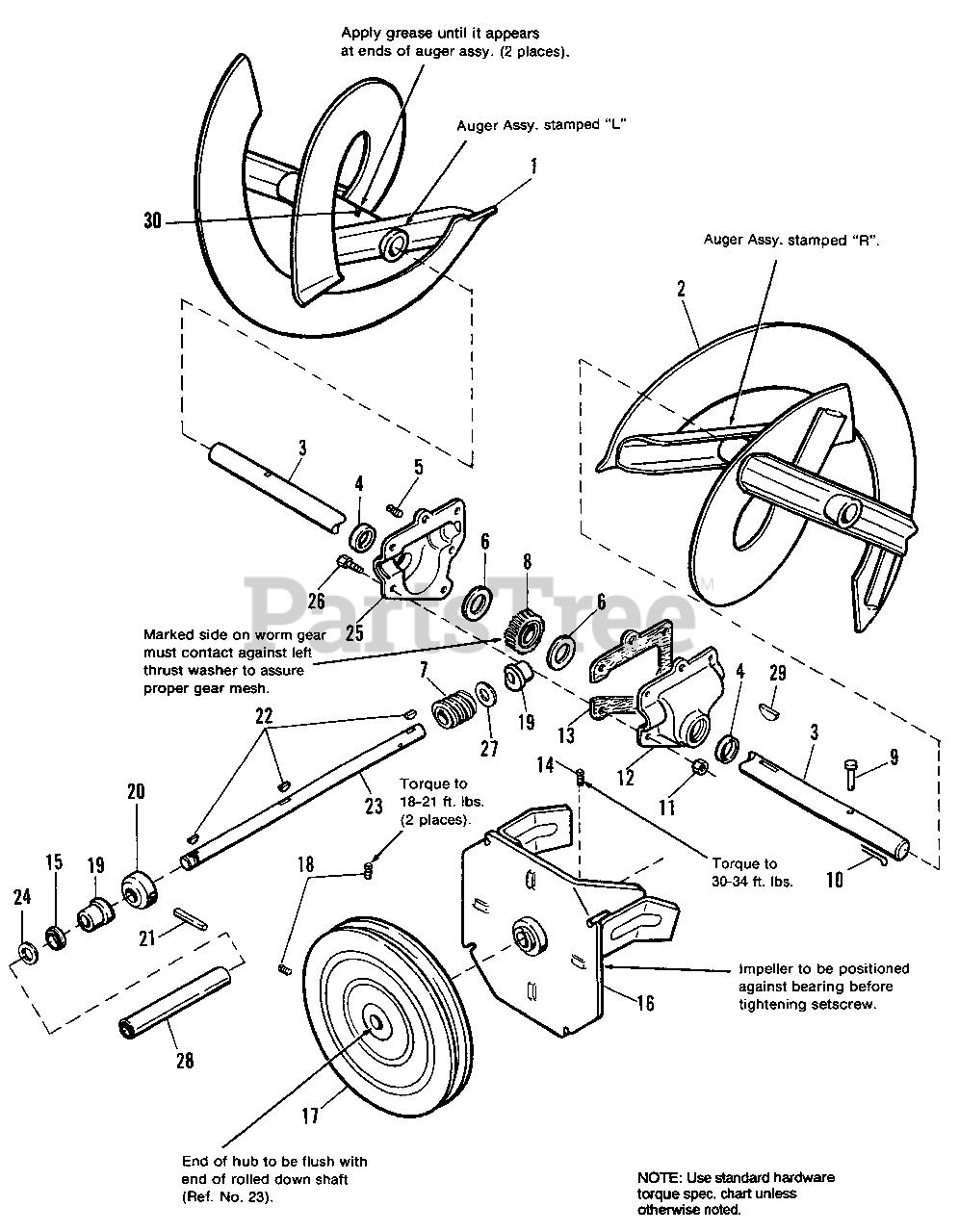

Auger Drive Group Parts Diagram

  • Title

1

Simplicity 1718782SM

AUGER ASSY., L.H., (24")
(Superseded to 1718782ASM)

$165.99

$

Usually ships in 2-12 days

0

2

Simplicity 1718783

AUGER ASSY., R.H., (24")
(Superseded to 1718783ASM)

$207.99

$

Usually ships in 2-12 days

0

3

Simplicity 1731916SM

SHAFT, Auger

$106.99

$

Usually ships in 2-12 days

0

4

Simplicity 2118118SM

SEAL

$10.99

$

In Stock, Qty 20+

0

5

Simplicity 1668971SM

PLUG, Pipe, Tapered, 1/8

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

7

Simplicity 1612142SM

GEAR, Rolled Worm
(Superseded to 706853)

$

$

Not available

8

Simplicity 1612141SM

GEAR, Worm
(Superseded to 706853)

Note: Use only Simplicity Cold Weather Special Worm Gear Oil in Worm Gear Housing. 1-8 Oz. Bottle Part #704636 Case of 12-8 Oz. Bottles, Part #1685406

$

$

Not available

9

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1612137SM

CASE, Gear, R.H.
(Superseded to 1687728)

$567.99

$

Usually ships in 2-12 days

0

13

Simplicity 1612124SM

GASKET

$17.99

$

In Stock, Qty 11

0

14

Simplicity 1960474SM

SETSCREW, Sq. Hd., 3/8-16 x 1/2

$5.99

$

In Stock, Qty 7

0

15

Simplicity 1612093SM

SEAL Oil

$10.99

$

In Stock, Qty 20+

0

16

Simplicity 1612187ASM

Impeller ASSY.
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 3 left!

0

17

Simplicity 1679293SM

PULLEY, Auger Input

$120.99

$

Usually ships in 2-12 days

0

18

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, only 3 left!

0

19

Simplicity 1612149SM

BUSHING, Flange

$51.99

$

In Stock, Qty 7

0

20

Simplicity 1612127SM

COLLAR, Thrust

$30.99

$

In Stock, only 2 left!

0

21

Simplicity 2836098SM

PIN, "Drive Lok" Type A, 3/16 x 1-1/2

$18.99

$

In Stock, Qty 6

0

22

Simplicity 2818312SM

KEY, Woodruff, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1612129SM

SHAFT, Worm

$

$

Not available

24

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1612136SM

CASE, Gear, L.H.

$68.99

$

Usually ships in 2-12 days

0

26

Simplicity 1960346SM

CAPSCREW, Hex Hd., 1/4 20 x 7/8

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 2168111SM

WASHER, Thrust

$6.99

$

Usually ships in 2-12 days

0

28

Simplicity 1612111SM

TUBE, Worm Shaft

$21.99

$

In Stock, only 4 left!

0

29

Simplicity 2830246SM

KEY, Woodruff, 1/4 x 3/4
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

30

Simplicity 2821133SM

GREASE FITTING
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0
