860 M (1693650) - Simplicity 24" Snow Thrower, 8hp Wheels & Tires Group Parts Diagram

24" Snow Thrower, 8hp

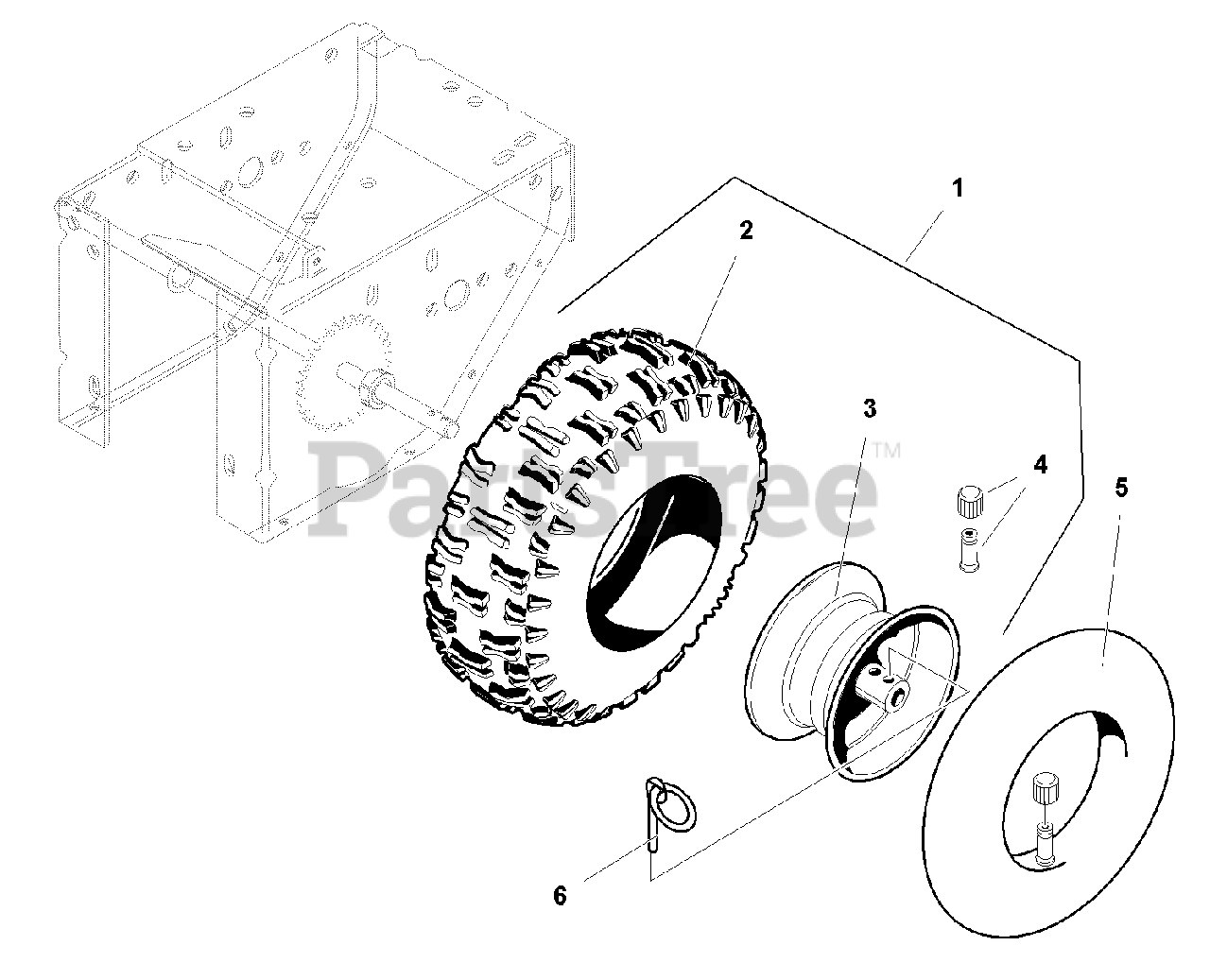

Wheels & Tires Group Parts Diagram

  • Title
1

Simplicity 1714235SM

WHEEL & TIRE ASSEMBLY (Includes Ref. Nos. 2, 3 & 4)

$

$

Not available

2

Simplicity 1612000SM

TIRE, 4.80-4.00-8

$

$

Not available

3

Simplicity 1714242SM

HUB, Wheel R.H., 3-3/4 Wide 8 Diameter 3/4 ID

$108.99

$

In Stock, only 1 left!

0

4

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

5

$35.99

$

Usually ships in 2-12 days

0

$7.49

$

Usually ships in 2-12 days

0
