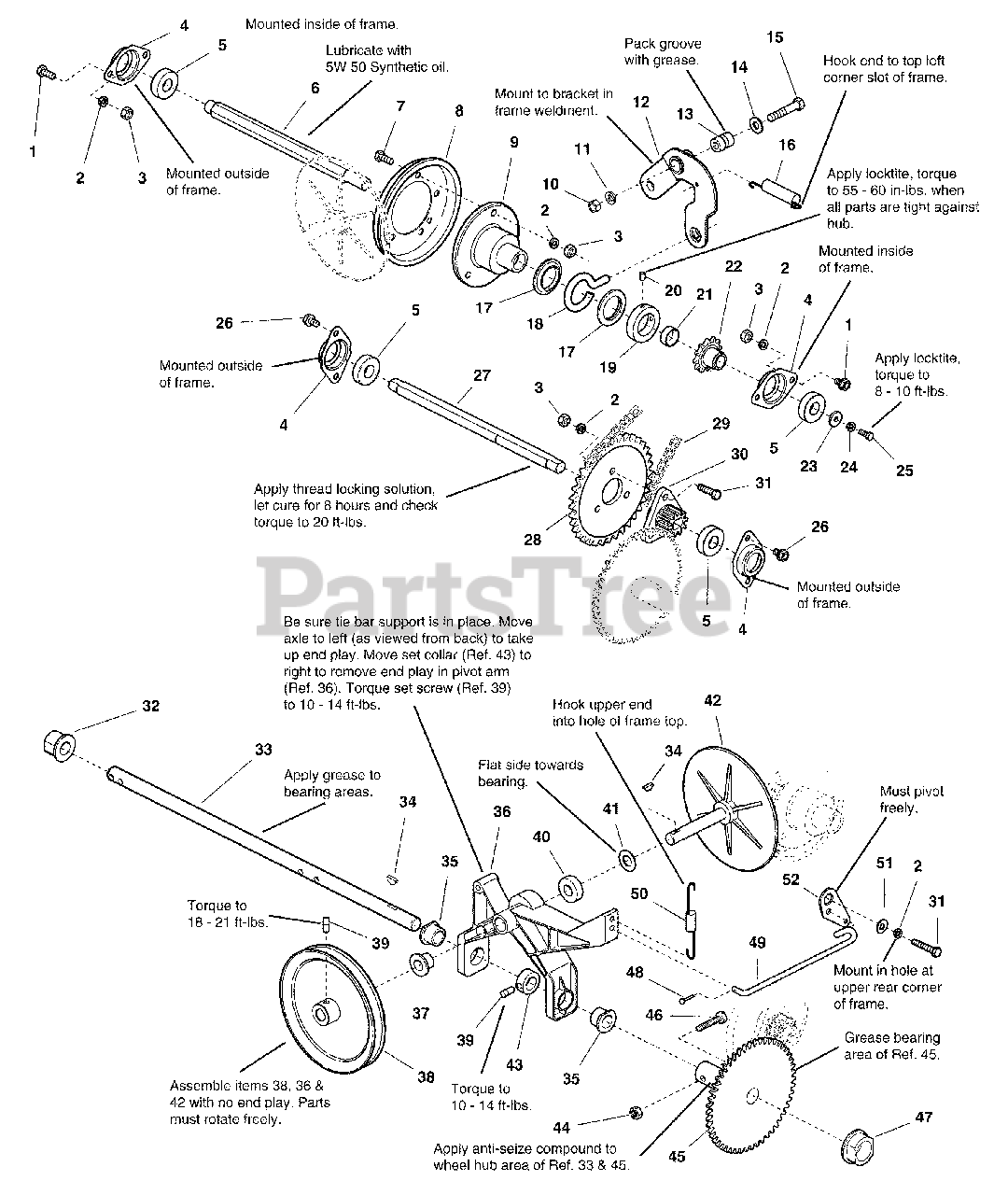

860 M (1693650) - Simplicity 24" Snow Thrower, 8hp Traction Drive Group Parts Diagram

24" Snow Thrower, 8hp

Traction Drive Group Parts Diagram

  • Title

1

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1667341SM

RETAINER, Bearing
(Superseded to 703155)

$5.99

$

In Stock, Qty 15

0

5

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

6

Simplicity 1667340SM

SHAFT, Hex

$69.99

$

Usually ships in 2-12 days

0

7

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

8

Simplicity 1725428SM

DISC, Friction

$46.99

$

In Stock, Qty 20+

0

9

Simplicity 1665995SM

HUB, Friction Disc

$97.99

$

In Stock, only 1 left!

0

10

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

12

Simplicity 1669256SM

ARM ASSEMBLY, Shift w/Bushings

$33.99

$

Usually ships in 2-12 days

0

13

Simplicity 1666114SM

BUSHING, Spacer
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

14

Simplicity 1924940SM

WASHER, Flat, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 1668255SM

SPRING
(Superseded to 703157)

$4.49

$

In Stock, Qty 10

0

17

Simplicity 1678956SM

COLLAR, Thrust

$5.49

$

In Stock, Qty 5

0

18

Simplicity 1666207SM

PIN, Slide

$12.99

$

In Stock, only 4 left!

0

19

Simplicity 1667335SM

SET COLLAR

$22.99

$

In Stock, only 3 left!

0

20

Simplicity 1724333SM

SETSCREW, Square Head, 1/4-20 x 1/2
(Superseded to 703139)

$3.49

$

In Stock, only 2 left!

0

21

Simplicity 1667501SM

SPACER

$6.99

$

Usually ships in 2-12 days

0

22

Simplicity 1667331SM

SPROCKET, 10 Tooth

$7.99

$

In Stock, only 1 left!

0

23

Simplicity 1960353SM

WASHER, Flat, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

24

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

25

Simplicity 1921959SM

CAPSCREW, Hex Head, 1 /4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

26

Simplicity 1924856SM

CAPSCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 1612160SM

JACKSHAFT

$62.99

$

In Stock, only 1 left!

0

28

Simplicity 1667330SM

SPROCKET, 36 Tooth

$29.99

$

Usually ships in 2-12 days

0

29

Simplicity 1666980SM

CHAIN, Drive, 40

$34.99

$

Usually ships in 2-12 days

0

30

Simplicity 1672775SM

GEAR & BEARING ASSEMBLY., 10 Tooth

$37.99

$

Usually ships in 2-12 days

0

31

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

32

Simplicity 1666001SM

BUSHING

$6.99

$

In Stock, only 4 left!

0

33

Simplicity 1612084SM

AXLE

$140.99

$

Usually ships in 2-12 days

0

34

Simplicity 2818312SM

KEY, Woodruff, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

35

Simplicity 1666425SM

BUSHING

$20.99

$

In Stock, Qty 20+

0

36

Simplicity 1670849SM

ARM ASSEMBLY, Pivot w/Bushings, (Includes Ref. 35, 37 & 40)
(Superseded to 1755734YP)

$231.99

$

Usually ships in 2-12 days

0

37

Simplicity 1666855SM

BUSHING

$11.99

$

In Stock, Qty 7

0

38

Simplicity 1672595A

PULLEY, Traction
(Superseded to 703147)

$50.99

$

Usually ships in 2-12 days

0

39

Simplicity 1928721SM

SETSCREW, Square Head, 5/16-18 x 1/2

$4.99

$

In Stock, only 3 left!

0

40

Simplicity 1665521SM

BEARING

$16.99

$

In Stock, only 2 left!

0

41

Simplicity 1666379SM

WASHER

$28.99

$

In Stock, only 4 left!

0

42

Simplicity 1719879SM

DRIVE DISC W/SPINDLE

$90.99

$

In Stock, Qty 6

0

43

Simplicity 1729254SM

SET COLLAR
(Superseded to 703150)

$

$

Not available

44

Simplicity 1919438SM

NUT, Hex, Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

45

Simplicity 1612086SM

GEAR & HUB ASSEMBLY, w/Bushing, 50 Tooth

$336.99

$

Usually ships in 2-12 days

0

46

Simplicity 1930570SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

47

Simplicity 1720682SM

BUSHING, Axle

$

$

Not available

48

Simplicity 1918451SM

PIN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

49

Simplicity 1726467SM

ROD, Pivot

$

$

Not available

50

Simplicity 1729619SM

SPRING

$11.99

$

In Stock, only 1 left!

0

51

Simplicity 1919326SM

WASHER, Flat, 11/32

$4.49

$

In Stock, Qty 8

0

52

Simplicity 1700473SM

BELLCRANK

$6.49

$

Usually ships in 2-12 days

0
