860 E (1694588) - Simplicity 24" Snow Thrower, 8hp Traction Drive Group (070tdg) Parts Diagram

24" Snow Thrower, 8hp

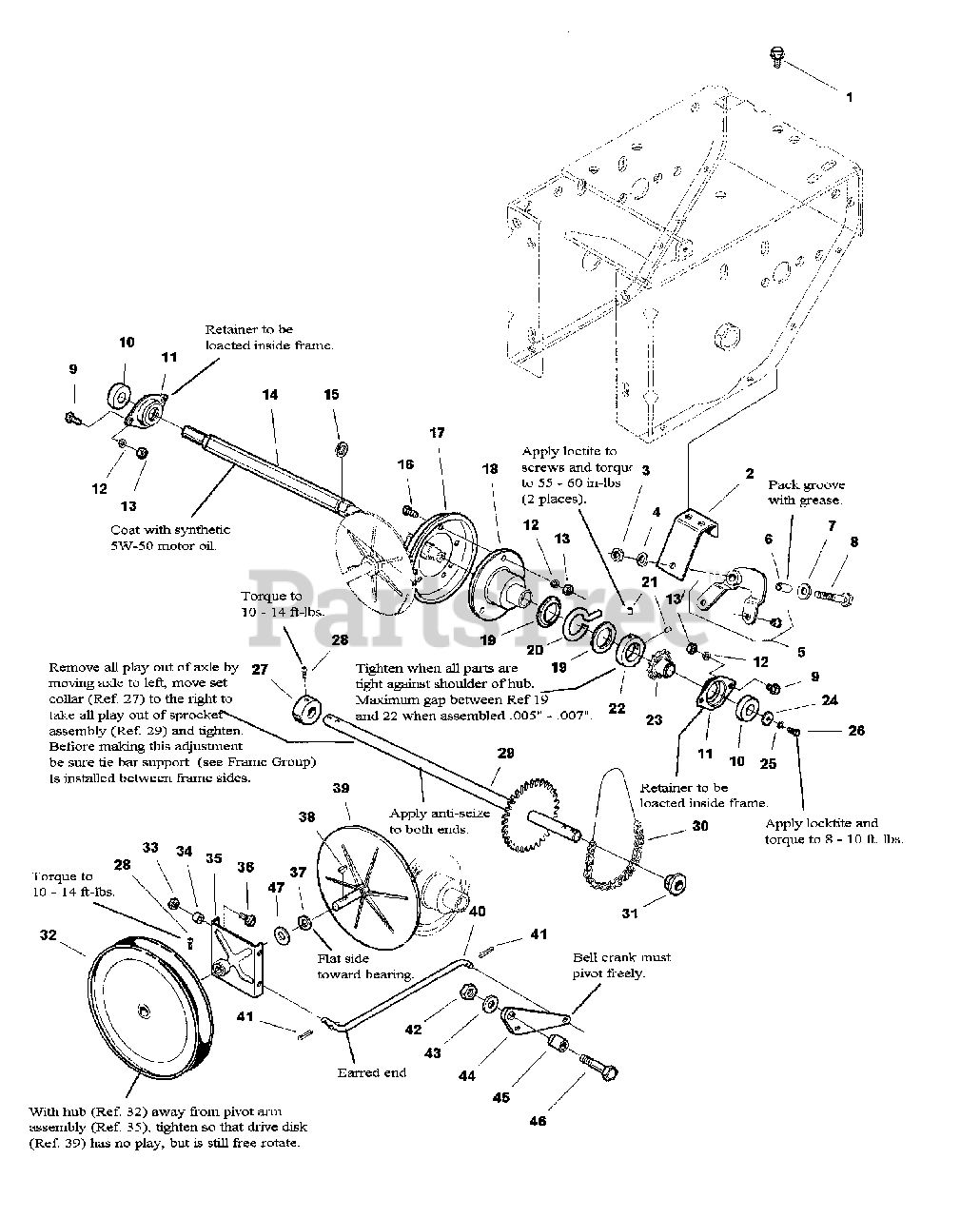

Traction Drive Group (070tdg) Parts Diagram

  • Title

1

Simplicity 1930601SM

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

2

Simplicity 1673994A

BRACKET, Bushing
(Superseded to 1673994AYP)

$16.99

$

Usually ships in 2-12 days

0

3

Simplicity 7091302SM

NUT, 3/8-16 Hex, GR 5 or B

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1916965SM

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Simplicity 1669256SM

ASSEMBLY, Shift Arm w/Bushing

$33.99

$

Usually ships in 2-12 days

0

6

Simplicity 1666114SM

BUSHING, Spacer, .380 ID x .750 OD x 1.030 Long
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 1924940SM

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1923701SM

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 1925205SM

SCREW, 5/16-18 x 5/8" Hex Head Cap, GR 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 1705897SM

BALL BEARING, .669 ID x .574 OD

$8.49

$

In Stock, Qty 20+

0

11

Simplicity 1667341SM

RETAINER, Bearing
(Superseded to 703155)

$5.99

$

In Stock, Qty 13

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16" Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917372SM

NUT, 5/16-18 Hex, GR B or 5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 7072432SM

HEX SHAFT

$62.99

$

Usually ships in 2-12 days

0

15

Simplicity 2827794SM

RING, External Retaining (for 3/4 Dia Shaft)

$3.49

$

In Stock, Qty 16

0

16

Simplicity 1921332SM

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

17

Simplicity 7010765SM

DRIVEN DISC
(Superseded to 7018782SM)

$

$

Not available

18

Simplicity 1665995SM

HUB, Friction Disc

$97.99

$

In Stock, only 1 left!

0

19

Simplicity 1678956SM

COLLAR, Thrust

$5.49

$

In Stock, only 1 left!

0

20

Simplicity 1666207SM

PIN, Slide

$12.99

$

In Stock, only 2 left!

0

21

Simplicity 1724333SM

SET SCREW, 1/4-20 x 1/2 w/Patch Lock
(Superseded to 703139)

$3.49

$

In Stock, only 2 left!

0

22

Simplicity 1667335SM

COLLAR, Set, 1.251 ID x 2.00 OD x .50 Long

$22.99

$

In Stock, only 3 left!

0

23

Simplicity 7072459SM

SPROCKET #35, 12 Tooth

$30.99

$

In Stock, only 1 left!

0

24

Simplicity 1960353SM

WASHER, 1/4 ID x 5/8 OD x .134/.109 Flat
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

25

Simplicity 1916964SM

LOCKWASHER, 1/4" Spring
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

26

Simplicity 1923341SM

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5

$4.49

$

In Stock, Qty 8

0

27

Simplicity 1729254SM

COLLAR, Set, .756 ID x 1.249 OD x .50
(Superseded to 703150)

$

$

Not available

28

Simplicity 1928721SM

SET SCREW, 5/16-18 x 1/2" Square Head Cup Point

$4.99

$

In Stock, only 2 left!

0

29

Simplicity 7072474SM

AXLE & SPROCKET ASSEMBLY

$96.99

$

Usually ships in 2-12 days

0

30

Simplicity 7072491SM

CHAIN, Roller, #35, 25.5" Long

$10.99

$

Usually ships in 2-12 days

0

31

Simplicity 1715101SM

BUSHING

$1.99

$

Usually ships in 2-12 days

0

32

Simplicity 1715253SM

PULLEY, Traction

$30.99

$

Usually ships in 2-12 days

0

33

Simplicity 1935048SM

NUT, 5/16-18 Large Head Center Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1665844SM

SPACER, .328 ID x .562 OD x .144/.149 Thick

$5.49

$

Usually ships in 2-12 days

0

35

Simplicity 1726778SM

ASSY, Pivot Plate/Hub w/Bearing

$142.99

$

Usually ships in 2-12 days

0

36

Simplicity 1925205SM

SCREW, 5/16-18 x 5/8 Hex Head Cap, GR 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

37

Simplicity 1666379SM

WASHER

$28.99

$

In Stock, only 3 left!

0

38

Simplicity 2830672SM

KEY, Hi-Pro, .188 x .62

$5.49

$

Usually ships in 2-12 days

0

39

Simplicity 1719879SM

DRIVE DISC, w/ Spindle

$90.99

$

In Stock, only 4 left!

0

40

Simplicity 1715131SM

ROD, Pivot

$8.99

$

Usually ships in 2-12 days

0

41

Simplicity 1918451SM

COTTER PIN, 1/8 x 3/4"

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 1919438SM

NUT, 5/16-18 Hex Nyloc Light
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1919326SM

WASHER, .312 (.34 ID x .75 OD)

$4.49

$

In Stock, Qty 5

0

44

Simplicity 1700473SM

BELLCRANK

$6.49

$

Usually ships in 2-12 days

0

45

Simplicity 1666106SM

BUSHING
(Superseded to 703121)

$10.99

$

In Stock, only 1 left!

0

46

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

47

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0
