860 E (1694588) - Simplicity 24" Snow Thrower, 8hp Handles & Controls Group (070uhdc) Parts Diagram

24" Snow Thrower, 8hp

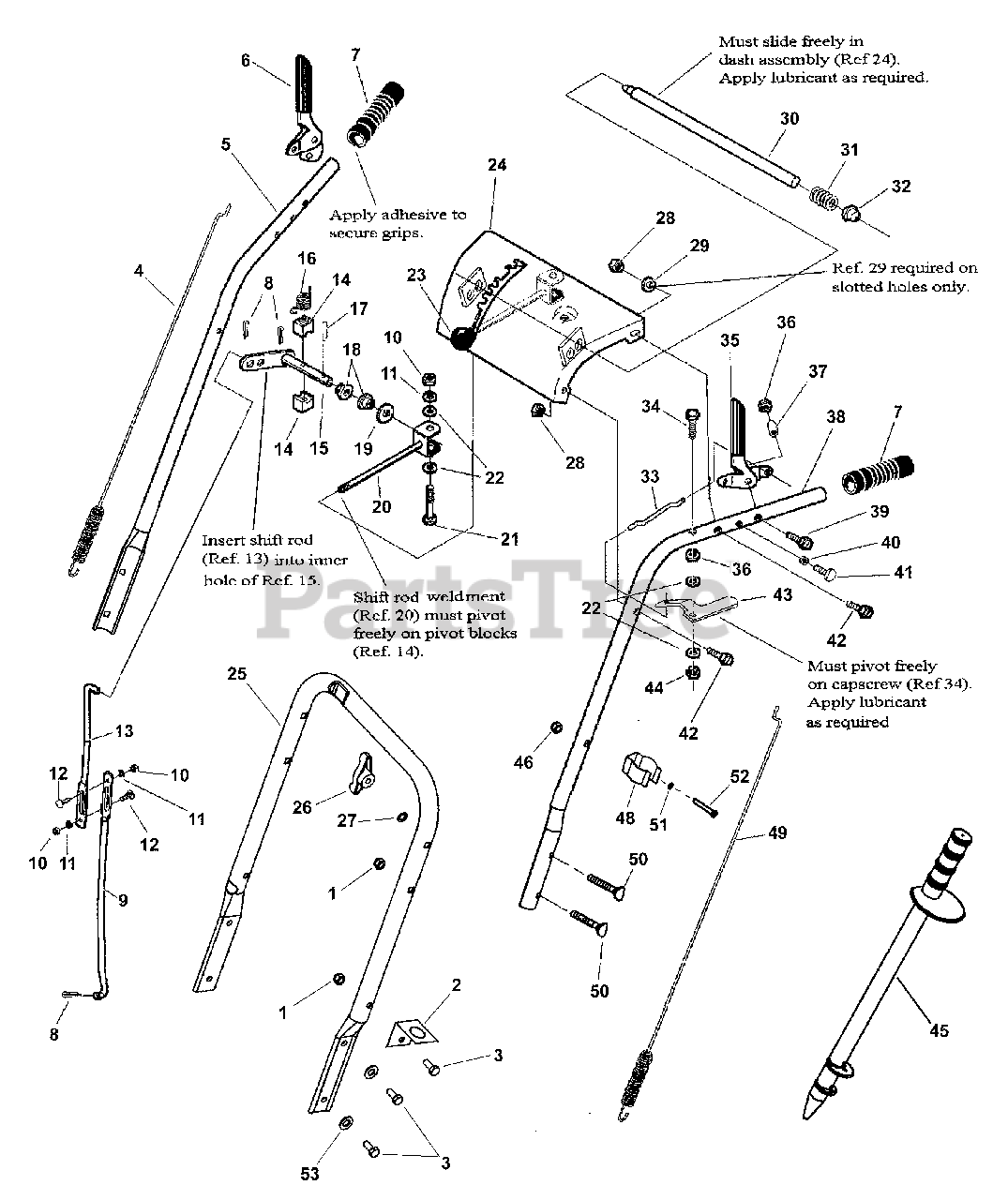

Handles & Controls Group (070uhdc) Parts Diagram

  • Title

1

Simplicity 5025057SM

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 1726727ASM

BRACKET, Snow Stick- Lower

$7.99

$

Usually ships in 2-12 days

0

3

Simplicity 1921332SM

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

4

Snapper 7027426SM

CLUTCH CABLE, Auger Drive- RH

$13.99

$

Usually ships in 2-12 days

0

5

Simplicity 1726574SM

HANDLE, Upper, Right Hand

$38.99

$

Usually ships in 2-12 days

0

6

Simplicity 1722638SM

GRIP, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

7

Simplicity 1726317SM

GRIP, Foam, Black

$8.49

$

In Stock, only 1 left!

0

8

Simplicity 1722460SM

HAIR PIN
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

9

Simplicity 1666255SM

ROD, Shift, Lower

$51.99

$

In Stock, only 4 left!

0

10

Simplicity 1916622SM

NUT, 1/4-20 2B Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1916964SM

LOCKWASHER, 1/4" Spring
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

12

Simplicity 1931317SM

BOLT, 1/4-20 x 2" Short Square Neck Carriage, GR 5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 1720238SM

ROD, Upper, Shift

$

$

Not available

14

Simplicity 1668524SM

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

15

Simplicity 1720240SM

SHIFT ROD PIVOT ASSEMBLY

$49.99

$

Usually ships in 2-12 days

0

16

Simplicity 1715123SM

SPRING, Compression

$5.49

$

Usually ships in 2-12 days

0

17

Simplicity 1918452SM

COTTER PIN, .125 x 1.00
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

18

Simplicity 1668185SM

BUSHING, .500 ID x .750 OD x .25

$5.49

$

In Stock, only 1 left!

0

19

Simplicity 1924361SM

WASHER, 1/2" Flat (.531 ID x 1.250 OD x .08 Thick)
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1668523SM

SHIFT ROD ASSEMBLY
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960705SM

SCREW, 1/4-20 x 2-1/4" Hex Flange Lock

$2.99

$

Usually ships in 2-12 days

0

22

Simplicity 1921319SM

WASHER, .250 (.27 ID x .62 OD)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1726734SM

KNOB, Tapered - 3/8-16 Internal Thread- Red

$11.99

$

In Stock, only 1 left!

0

24

Simplicity 1726983ASM

DASH ASSEMBLY

$242.99

$

Usually ships in 2-12 days

0

25

Simplicity 1726572SM

HANDLE, Lower

$95.99

$

Usually ships in 2-12 days

0

26

Simplicity 1716632SM

WING KNOB, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

27

Simplicity 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1960686SM

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1919326SM

WASHER, .312 (.34 ID x .75 OD)

$4.49

$

In Stock, Qty 6

0

30

Simplicity 1722633SM

ASSEMBLY, Rod w/Pin (Includes Ref. Nos. 31. 47, 54, 55 & 56)

$35.99

$

Usually ships in 2-12 days

0

31

Simplicity 1722690SM

SPRING, Compression

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 1960519SM

PUSH NUT
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1722630SM

ROD, Hold Down

$7.49

$

Usually ships in 2-12 days

0

34

Simplicity 1960662SM

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5

$2.99

$

Usually ships in 2-12 days

0

35

Simplicity 1722667SM

GRIP, Clutch, LH

$37.99

$

In Stock, only 1 left!

0

36

Simplicity 1923358SM

NUT, 1/4-20 Hex Centerlock
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

37

Simplicity 1715655SM

SPACER, Handle

$7.99

$

Usually ships in 2-12 days

0

38

Simplicity 1726573SM

HANDLE, Upper, Left Hand

$47.99

$

Usually ships in 2-12 days

0

39

Simplicity 1922837SM

SCREW, 1/4-20 x 1-1/2" Hex Head Cap
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

40

Simplicity 1715654SM

SPACER, .268 ID x .394 x .165

$3.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960671SM

SCREW, 1/4-20 x 3/4" Pan Head Torx Self-Tap

$4.99

$

Usually ships in 2-12 days

0

42

Simplicity 1921221SM

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

43

Simplicity 1722631ASM

LEVER, Pivot

$8.49

$

Usually ships in 2-12 days

0

44

Simplicity 1920397SM

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

45

Simplicity 7075909SM

TOOL, Clean-Out
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

46

Simplicity 7091267SM

NUT, #10-24 Hex Center Lock

$3.99

$

In Stock, Qty 6

0

47

Simplicity 1722632

ROD, Hand Control, not shown; part of item 30
(Superseded to 1722633SM)

$35.99

$

Usually ships in 2-12 days

0

48

Simplicity 1726728SM

HOLDER, Clean-Out Tool, Upper
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

49

Simplicity 7027425SM

CLUTCH CABLE, Ground Drive- LH

$23.99

$

Usually ships in 2-12 days

0

50

Simplicity 7091740SM

BOLT, 5/16-18 x 2" Curved Head Square Neck GR 2

$3.49

$

In Stock, Qty 12

0

51

Simplicity 7090011SM

WASHER, #10 Internal Tooth Lock

$3.99

$

In Stock, only 1 left!

0

52

Simplicity 7091266SM

SCREW, #10-24 x 2" Hex Washer Head Machine, GR5

$3.99

$

In Stock, only 3 left!

0

53

Simplicity 1917356SM

LOCKWASHER, Spring 5/16, not shown; part of item 30
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

54

Simplicity 1722635

BUSHING, .250 ID x .375 OD x .750, not shown; part of item 30
(Superseded to 1722633SM)

$35.99

$

Usually ships in 2-12 days

0

55

Simplicity 1722634

PIN, Clevis, not shown; part of item 30
(Superseded to 1722634SM)

$5.49

$

Usually ships in 2-12 days

0

56

Simplicity 1722613

SPRING, Compression, not shown, part of item 30
(Superseded to 1722613SM)

$3.49

$

Usually ships in 2-12 days

0
