860 E (1694588) - Simplicity 24" Snow Thrower, 8hp Auger Housing Group (070ch3pc) Parts Diagram

24" Snow Thrower, 8hp

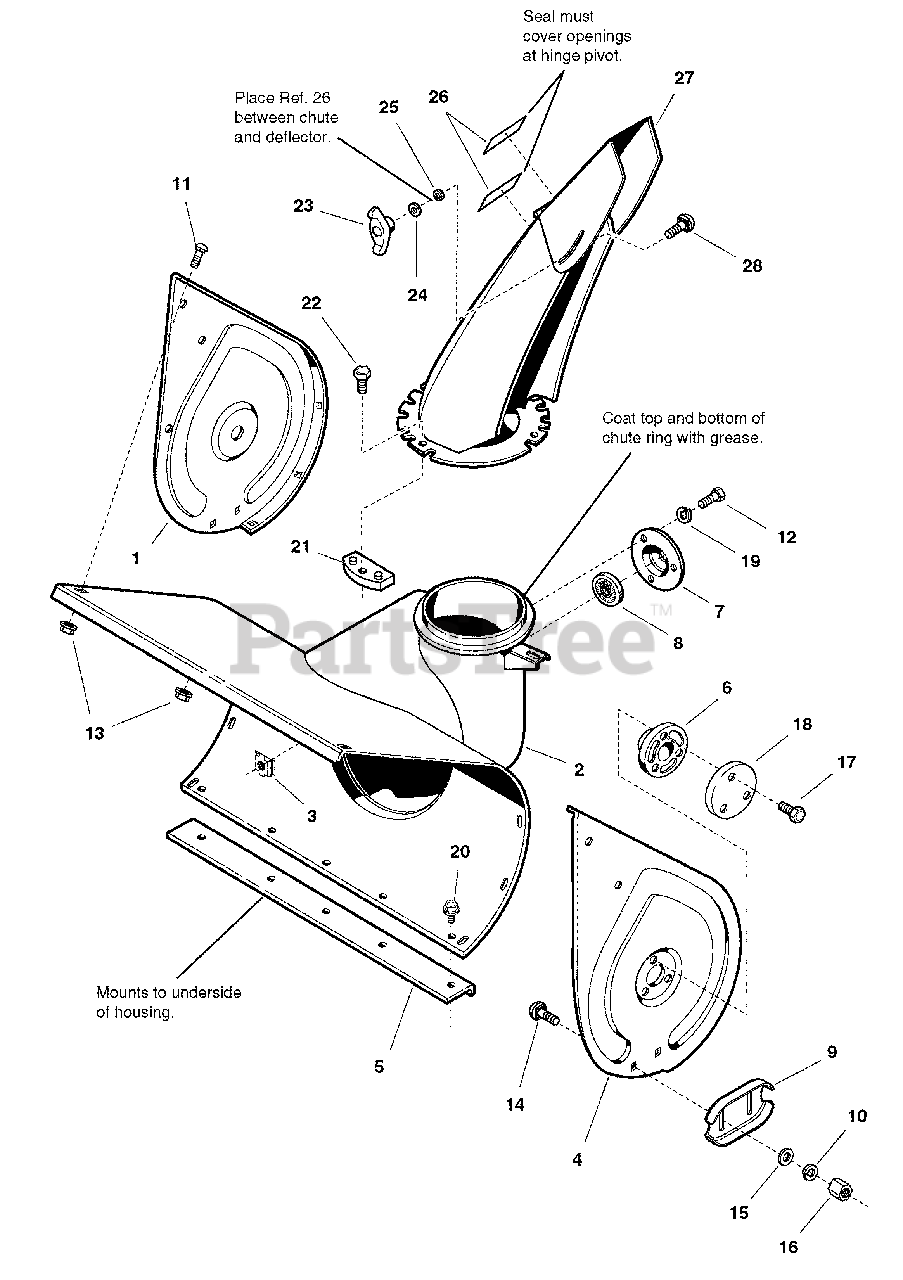

Auger Housing Group (070ch3pc) Parts Diagram

  • Title

1

Simplicity 7072543SM

END PLATE, RH- Auger Housing, Orange

$103.99

$

Usually ships in 2-12 days

0

2

Simplicity 7072548SM

AUGER HOUSING ASSEMBLY, 22" (Orange)

$524.99

$

Usually ships in 2-12 days

0

2

Simplicity 7072568SM

AUGER HOUSING ASSEMBLY, 24" (Orange)

$598.99

$

Usually ships in 2-12 days

0

3

Simplicity 1930659SM

RETAINER NUT, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 7072546SM

END PLATE, LH- Auger Housing, Orange

$101.99

$

Usually ships in 2-12 days

0

5

Simplicity 1675080A

BLADE, Scraper- 22 inch
(Superseded to 7600017SM)

$70.99

$

In Stock, Qty 7

0

5

Simplicity 1725352A

BLADE, Scraper- 24 inch

$

$

Not available

6

Simplicity 1726457SM

BEARING, Auger

$

$

Not available

7

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 2108202SM

BALL BEARING

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 1727854CSM

SKID SHOE, Reversible, Orange
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 20+

0

10

Simplicity 1916965SM

WASHER, 3/8 inch Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

11

Simplicity 1931315SM

BOLT, 1/4-20 x 1/2 Short Square Neck Carriage, GR 5
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1925205SM

SCREW, 5/16-18 x 5/8 Hex Head Cap, GR 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 1930641SM

NUT, 1/4-20 Hex Flange Lock Large
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1960711SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1924940SM

WASHER, 3/8 Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1960687SM

NUT, 3/8-16 Hex Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 7091841SM

SCREW, 5/16-18 x 1 Hex Washer Self-Tap

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 7072551SM

CAP, Bearing, Orange

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 1917356SM

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1929000SM

SCREW, 1/4-20 x 3/8 Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 7011938SM

RETAINER, Spout

$

$

Not available

22

Simplicity 7091075SM

SCREW, #10-24 x 5/8 Hex Washer Self-Tap

$4.49

$

In Stock, Qty 5

0

23

Simplicity 1716632SM

KNOB, Wing 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

24

Simplicity 7091076SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 1706085SM

DECAL, Hinge, Orange

$13.99

$

Usually ships in 2-12 days

0

27

Simplicity 7073192SM

CHUTE, Discharge

$233.99

$

Usually ships in 2-12 days

0

28

Simplicity 7090316SM

CARRIAGE BOLT, 5/16-18 x 3/4, GR5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0
