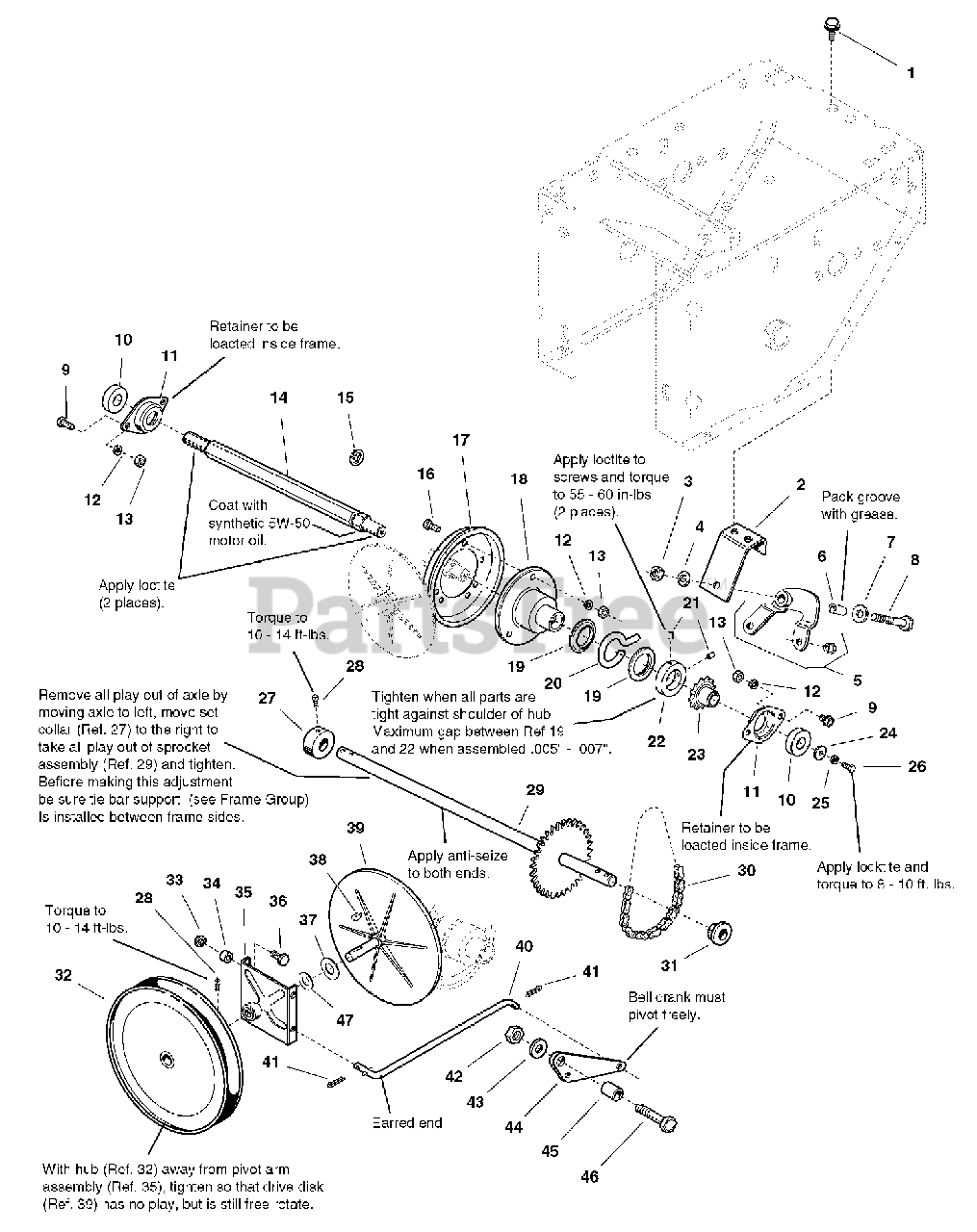

860 E (1694433) - Simplicity 24" Snow Thrower, 8hp Traction Drive Group Parts Diagram

24" Snow Thrower, 8hp

Traction Drive Group Parts Diagram

  • Title

1

Simplicity 1930601SM

CAPSCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

2

Simplicity 1673994A

BRACKET
(Superseded to 1673994AYP)

$16.99

$

Usually ships in 2-12 days

0

3

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 1669256SM

SHIFT ARM ASSEMBLY, w/Bushing

$33.99

$

Usually ships in 2-12 days

0

6

Simplicity 1666114SM

BUSHING
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

11

Simplicity 1667341SM

RETAINER, Bearing
(Superseded to 703155)

$5.99

$

In Stock, Qty 15

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1715093SM

SHAFT, Hex

$70.99

$

In Stock, only 1 left!

0

15

Simplicity 2827794SM

E-RING, Retaining

$3.49

$

In Stock, Qty 18

0

16

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

17

Simplicity 1725428SM

DISC, Friction

$46.99

$

In Stock, Qty 20+

0

18

Simplicity 1665995SM

HUB, Friction Disc

$97.99

$

In Stock, only 1 left!

0

19

Simplicity 1678956SM

COLLAR, Thrust

$5.49

$

In Stock, Qty 5

0

20

Simplicity 1666207SM

PIN, Loop

$12.99

$

In Stock, only 4 left!

0

21

Simplicity 1960348SM

SET SCREW, Hex Socket, Cup Point, 1/4-20 x 3/8

$5.49

$

Usually ships in 2-12 days

0

22

Simplicity 1667335SM

COLLAR, Set

$22.99

$

In Stock, only 3 left!

0

23

Simplicity 1715094SM

SPROCKET, 10T

$8.49

$

Usually ships in 2-12 days

0

24

Simplicity 1960353SM

WASHER
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

25

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

26

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

27

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$

$

Not available

28

Simplicity 1928721SM

SET SCREW, Square Head, Cup Point, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 5

0

29

Simplicity 1715095SM

AXLE & SPROCKET ASSEMBLY

$48.99

$

Usually ships in 2-12 days

0

30

Simplicity 1715130SM

CHAIN, Roller, #40 x 25

$18.99

$

Usually ships in 2-12 days

0

31

Simplicity 1715101SM

BUSHING

$1.99

$

Usually ships in 2-12 days

0

32

Simplicity 1715253SM

PULLEY, Traction

$30.99

$

Usually ships in 2-12 days

0

33

Simplicity 1935048SM

NUT, Centerlock, Hex Flange Head, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

34

Simplicity 1665844SM

SPACER

$5.49

$

Usually ships in 2-12 days

0

35

Simplicity 1726778SM

PIVOT ASSEMBLY

$142.99

$

Usually ships in 2-12 days

0

36

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

37

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 2830672SM

KEY, Hi-Pro

$5.49

$

Usually ships in 2-12 days

0

39

Simplicity 1719879SM

DRIVE, Disc, w/Spindle

$90.99

$

In Stock, Qty 6

0

40

Simplicity 1715131SM

PIVOT ROD

$8.99

$

Usually ships in 2-12 days

0

41

Simplicity 1918451SM

PIN, Cotter 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 1919438SM

NUT, Hex Lock, ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1919326SM

WASHER, Flat

$4.49

$

In Stock, Qty 8

0

44

Simplicity 1700473SM

BELLCRANK

$6.49

$

Usually ships in 2-12 days

0

45

Simplicity 1666106SM

BUSHING
(Superseded to 703121)

$10.99

$

In Stock, only 1 left!

0

46

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

47

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+
