860 E (1691024) - Simplicity 24" Snow Thrower, 8hp Engine & Frame Group Parts Diagram

24" Snow Thrower, 8hp

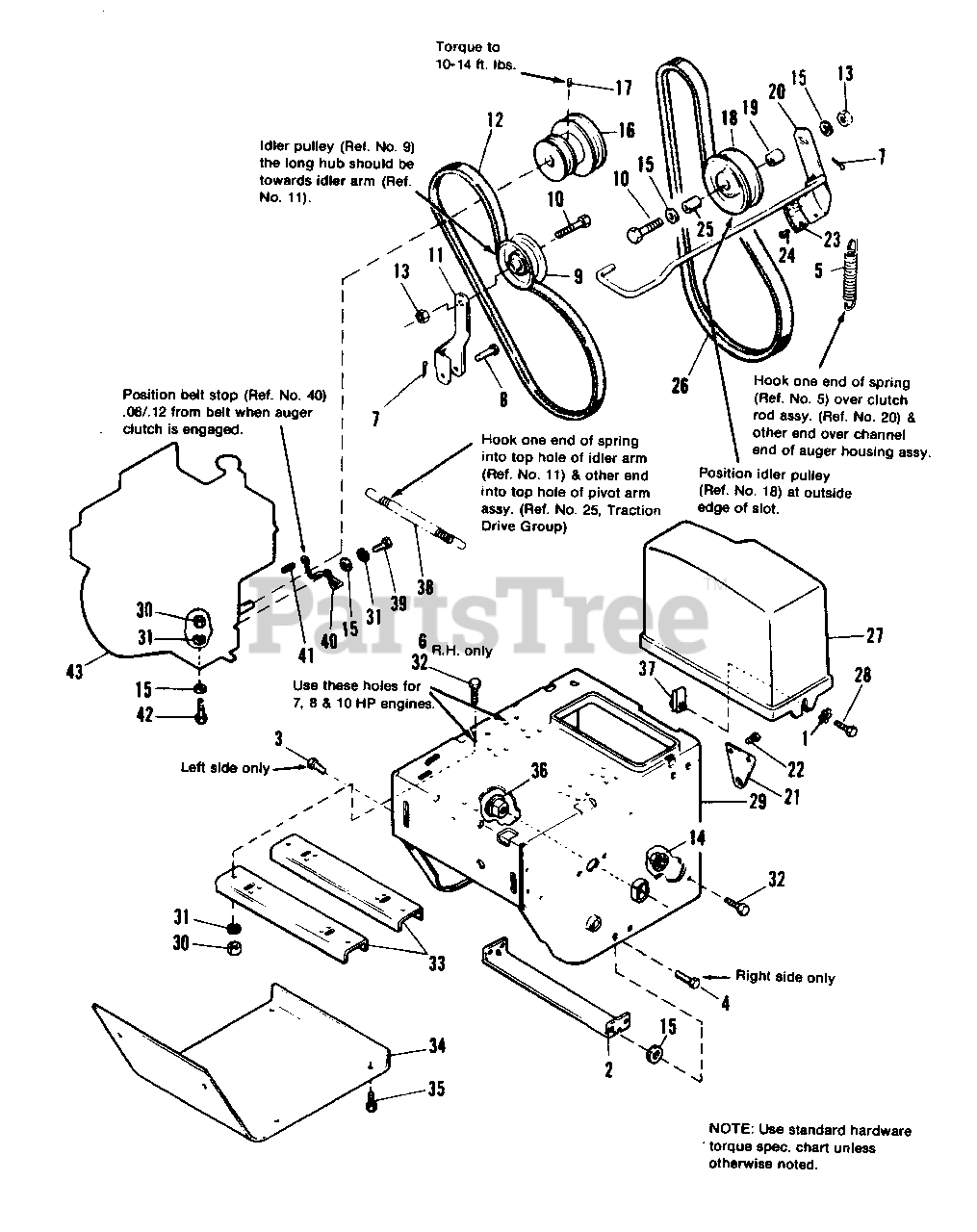

Engine & Frame Group Parts Diagram

  • Title

1

Simplicity 2820426SM

LOCKWASHER, Ext. Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 1669198ASM

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$14.99

$

Usually ships in 2-12 days

0

3

Simplicity 2828729

SCREW, Taptite, 5/16-18 x 3/8 (left side only)

$

$

Not available

4

Simplicity 2825359

SCREW, TAPTITE, 5/16-18 x 3/4 (ride side only)

$

$

Not available

5

Simplicity 1669837SM

SPRING, Brake

$

$

Not available

6

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

7

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

8

Simplicity 1665994SM

PIN
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

9

Simplicity 1668477SM

PULLEY, Idler

$23.99

$

In Stock, Qty 20+

0

10

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

11

Simplicity 1703046

ARM, Idler, Traction
(Superseded to 1703046BZYP)

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 1676461SM

BELT, Traction

$24.99

$

In Stock, only 1 left!

0

13

Simplicity 2828731

LOCKNUT, Jam, 3/8-16

$

$

Not available

14

Simplicity 2827557

NUT, Hex, Whizlock, 5/16-18

$

$

Not available

15

Simplicity 2817642

WASHER, Flat, 5/16

$

$

Not available

16

Simplicity 1676493SM

PULLEY, Engine

$95.99

$

Usually ships in 2-12 days

0

17

Simplicity 2828691

SETSCREW, Socket Hd., 5/16-18 x 5/16

$

$

Not available

18

Simplicity 2154534SM

PULLEY ASSY.

$32.99

$

In Stock, only 2 left!

0

19

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, only 4 left!

0

20

Simplicity 1727058

CLUTCH ROD ASSY. (Incl. Ref. Nos. 23 & 24)
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

21

Simplicity 1669135SM

BRACKET, Clutch Pivot

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 2825003

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

23

Simplicity 1669313SM

PAD, Brake

$14.99

$

In Stock, Qty 5

0

24

Simplicity 2825160SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

25

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 1676460SM

BELT, Auger Drive

$29.99

$

In Stock, only 2 left!

0

27

Simplicity 1725287SM

GUARD, Belt
(Superseded to 706414)

$

$

Not available

28

Simplicity 2818249

SCREW, Truss Hd., 5/16-18 x 3/4

$

$

Not available

29

Simplicity 1673993

FRAME, Main

$

$

Not available

30

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 2830591

CAPSCREW, Whizlock, 5/16-18 x 3/4

$

$

Not available

33

Simplicity 1668766

BRACKET, Engine Mounting

$

$

Not available

34

Simplicity 1666374SM

COVER, Bottom

$

$

Not available

35

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

36

Simplicity 1666001SM

BUSHING, Axle

$6.99

$

In Stock, Qty 9

0

37

Simplicity 2835255

NUT, Pal, 5/16-18

$

$

Not available

38

Simplicity 1727149SM

SPRING, Idler
(Superseded to 703146)

$

$

Not available

39

Simplicity 2821515

CAPSCREW, Hex Hd., 5/16-24 x 3/4

$

$

Not available

40

Simplicity 1676494

BELT STOP

$

$

Not available

41

Simplicity 2805856SM

KEY, 1/4 x 1/4 x 1-1/2

$3.49

$

In Stock, only 2 left!

0

42

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

43

ENGINE, Briggs & Stratton, 8 HP

$

$

Not available
