86-42BC01 - Toro 42" Dozer Blade (1978) MID-MOUNT GRADER BLADE-50 IN.(127 CM)(VEHICLE IDENTIFICATION NUMBER 87-50BM01) Parts Diagram

42" Dozer Blade

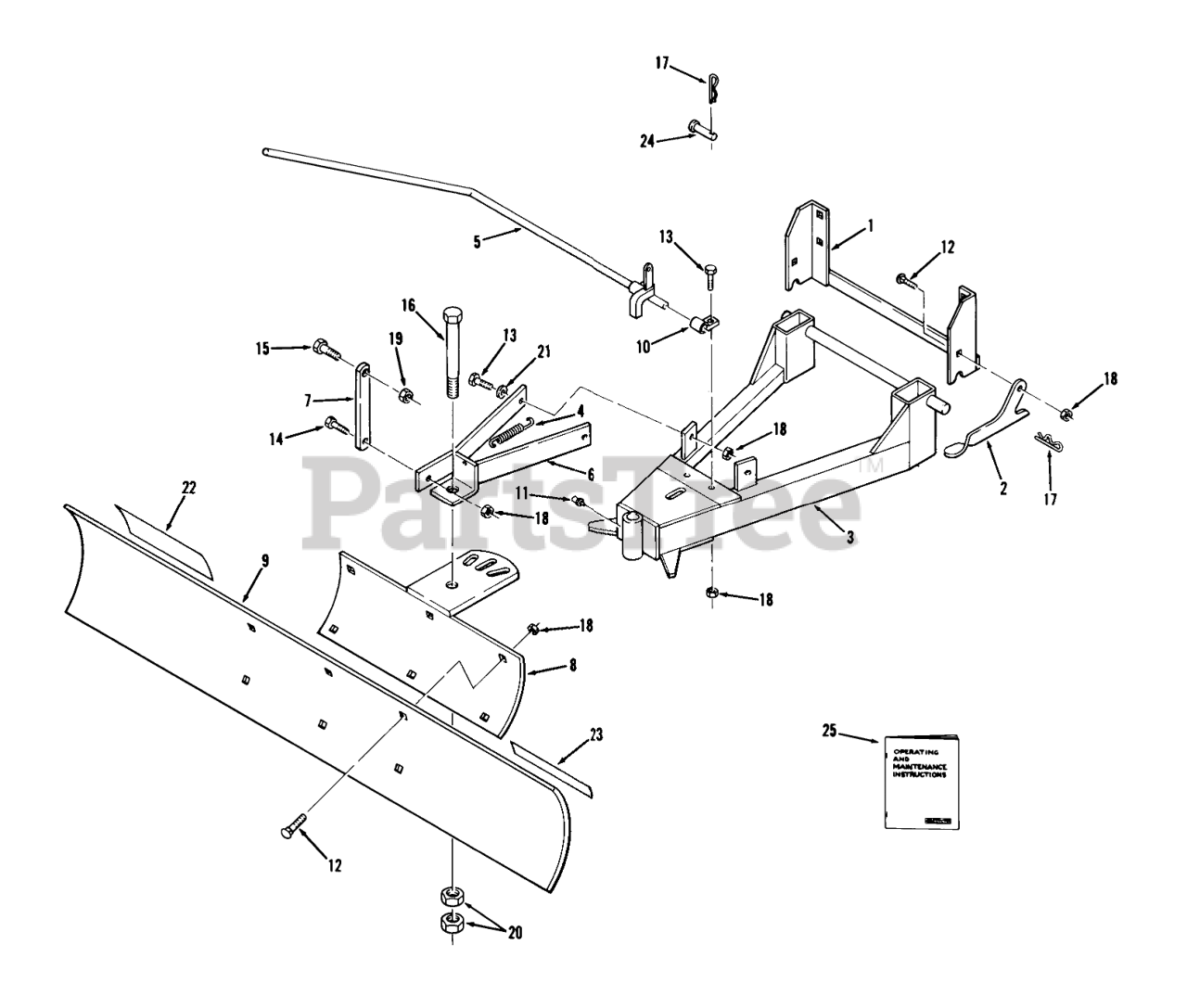

MID-MOUNT GRADER BLADE-50 IN.(127 CM)(VEHICLE IDENTIFICATION NUMBER 87-50BM01) Parts Diagram

  • Title

1

Toro 104513

Bracket

$

$

Not available

2

Toro 104657

PLATE-LATCHING

$42.99

$

Usually ships in 3-6 days

0

3

Toro 103620

"A" Frame Assembly

$

$

Currently unavailable

4

Toro 103621

Spring

$

$

Not available

5

Toro 103622

Blade Index & Lock Lever

$

$

Not available

6

Toro 103623

Key

$

$

Not available

7

Toro 103624

Key

$

$

Currently unavailable

8

Toro 103625

PIVOT&BLADE MT (A R

$

$

Not available

9

Toro 103626

Blade
(Superseded to 92-6317)

$

$

Not available

10

Toro 103627

Bushing-Index Lever

$

$

Not available

11

Toro 1030

Zerk

$

$

Not available

12

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

13

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

14

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

15

Toro 908059

Hhcs
(Superseded to 325-6)

$3.49

$

In Stock, only 4 left!

0

16

Toro 908109

BOLT 3/4-10X5

$

$

Not available

17

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

18

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

19

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

20

Toro 915241

NUT

$1.99

$

Usually ships in 3-6 days

0

21

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 15

0

22

Toro 103631

Caution Decal

$

$

Not available

23

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

24

Toro 933000

Pin

$

$

Not available

25

Toro 803731R1

Operating and Maintenance Instructions

$

$

Currently unavailable
