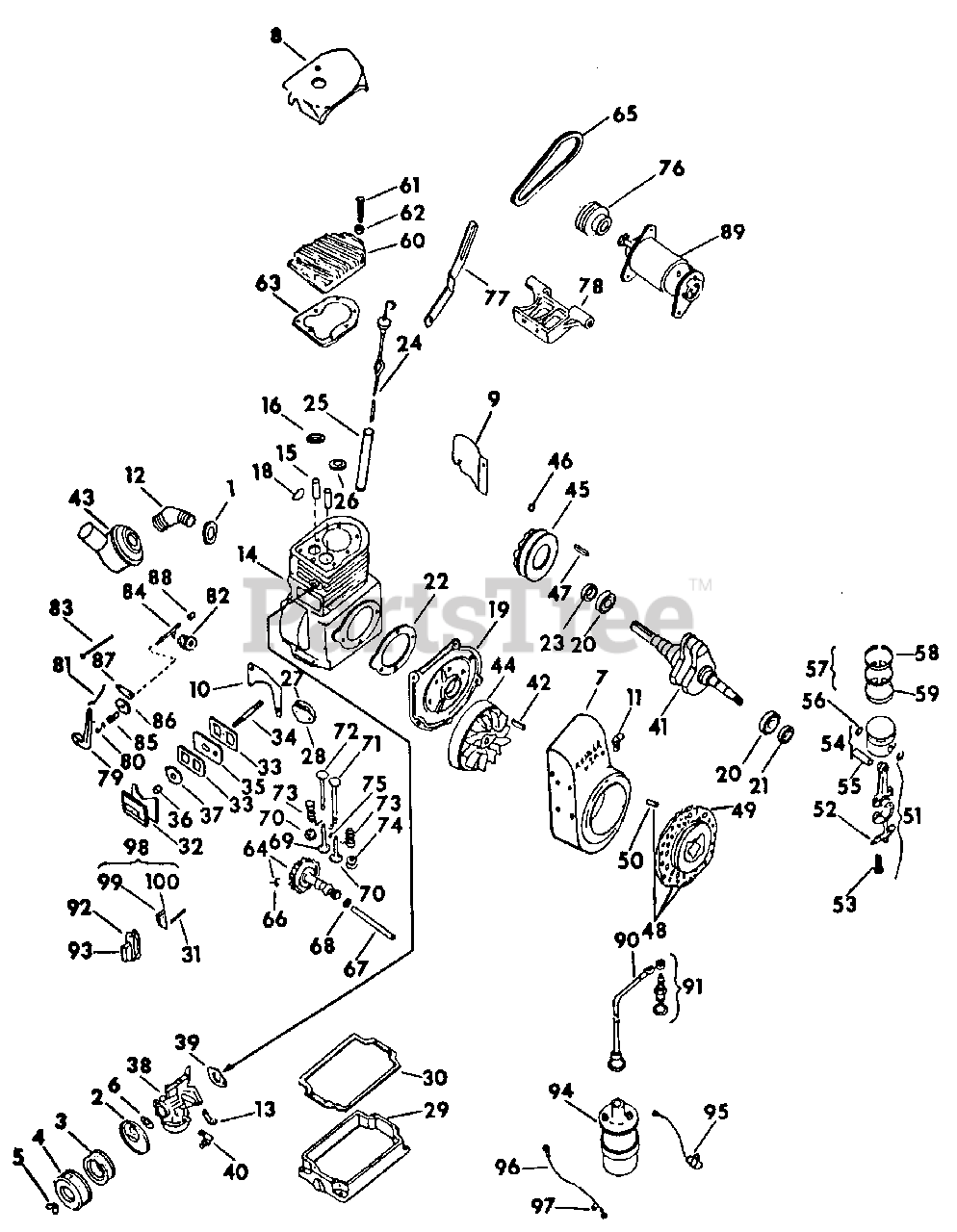

Engine-K181-8 Hp Parts Diagram

  • Title

1

Cub Cadet 712-0250

Nut, Exhaust Muffler Elbow Lock

$

$

Not available

2

~NLA

Base, Air Cleaner

$

$

Not available

Screw, 8-32 X 3/8 Znd Slt Fil Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

3

Cub Cadet KH-231847

Element, Air Cleaner Filter
(Superseded to KH-231847-S)

$18.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-231855

Cover, Air Cleaner

$

$

Not available

5

Cub Cadet KH-X-276-7

Nut, Air Cleaner Wing
(Superseded to KH-25-100-15-S)

$

$

Not available

6

Cub Cadet KH-220537

Gasket, Air Cleaner

$

$

Not available

7

~NLA

Housing Assy, Blower

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/4 C-Z Slt Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Slt Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet KH-X-25-63

Washer

$

$

Not available

8

Cub Cadet KH-234796

Baffle, Cylinder Head Air

$

$

Not available

9

~NLA

Baffle, Cylinder Air

$

$

Not available

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Hex Hd Mach

$

$

Not available

10

~NLA

Baffle, Side Air

$

$

Not available

11

Cub Cadet IH-263515-R91

Clip, Throttle Cable

$

$

Currently unavailable

12

Cub Cadet KH-231820

Elbow, Exhaust Muffler
(Superseded to KH-231820-S)

$95.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-232683

Bracket, Choke

$

$

Not available

Cub Cadet KH-235603

Clip, Speed

$

$

Not available

14

Block, Cylinder

Note: (Common Hardware, Purchase Locally) (Order short block)

$

$

Not available

Screw w/Spring Lock Washer, 5/16-18 X 1-1/2 Znp Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

15

Cub Cadet KH-230007-S

Guide, Valve

$25.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-230170

Insert, Exhaust Valve

$

$

Not available

~NLA

Shaft, Governor

$

$

Not available

18

Cub Cadet IH-172548

Plug, 1-1/8 Expansion

$

$

Currently unavailable

19

~NLA

Plate, Crankcase Bearing

$

$

Not available

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet IH-ST429

Bearing, Crankcase Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

21

Cub Cadet KH-X-583-1

Seal, Front Bearing Plate Oil

$

$

Not available

22

Cub Cadet KH-230071

Gasket, Bearing Plate

$

$

Not available

23

Cub Cadet KH-X-583-2

Seal, Crankcase Rear Oil

$

$

Not available

24

Cub Cadet KH-A-231725

Dipstick

$

$

Not available

25

Cub Cadet KH-231726

Tube, Oil Fill

$

$

Not available

26

Cub Cadet KH-230265

Insert, Intake Valve

$

$

Not available

27

Cub Cadet KH-52-041-17

Gasket, Fuel Pump Pad Cover

$

$

Not available

28

Cub Cadet KH-240282

Cover, Fuel Pump Pad

$

$

Not available

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 1/2 C-Z Hex Hd Mach

$

$

Not available

29

Cub Cadet KH-41-199-08

Base, Oil Pan

$

$

Not available

Screw w/Spring Lock Washer, 5/16-18 X 1-1/2 C-Z Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet KH-X-75-10

Plug, 3/8-18 Auto Sq-Hd, Filler & Drain
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

30

Cub Cadet KH-41-041-03

Gasket, Oil Pan Base

$

$

Not available

31

Cub Cadet KH-41-411-01

Rod, Breaker

$

$

Not available

32

~NLA

Cover w/Filter, Breather

$

$

Not available

33

Cub Cadet KH-230048

Gasket, Breather

$

$

Not available

34

~NLA

Stud, Breather Cover

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Washer, 1/4 Med Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

35

Cub Cadet KH-230066

Plate Assy, Breather

$

$

Not available

36

Cub Cadet KH-230046

Seal, Breather

$

$

Not available

37

Cub Cadet KH-231419

Filter, Breather
(Superseded to KH-231419-S)

$8.49

$

In Stock, Qty 6

0

38

Cub Cadet KH-41-853-08

Carburetor Assy

Note: (For components see list of parts under details of carburetor)

$

$

Not available

Cub Cadet KH-X-140-1

Screw w/Internal Tooth Lock Washer, 1/4-20 X 3/4 C-Z Hex Hd Cap

$

$

Not available

39

Cub Cadet KH-210223

Gasket, Carburetor

$

$

Not available

40

Cub Cadet IH-401967-R1

Elbow, Carburetor to Fuel Line

$

$

Not available

41

Cub Cadet KH-41-014-04

Crankshaft

$

$

Not available

42

Cub Cadet IH-532004-R1

Key, Crankshaft
(Superseded to KH-X-286-17)

$

$

Not available

43

Cub Cadet KH-41-068-05

Muffler, Exhaust

$

$

Not available

44

Cub Cadet KH-234877

Flywheel

$

$

Not available

45

Cub Cadet KH-231591

Pulley w/Clutch Drive Plate, Flywheel

$

$

Not available

46

Cub Cadet KH-X-60-50

Screw, Flywheel Pulley Set

$

$

Not available

47

Cub Cadet IH-452779-R1

Key, 1/4 X 7/8 Sq Parallel
(Superseded to IH-452779-R2)

$

$

Not available

48

Cub Cadet KH-41-071-03

Cup Assy, Flywheel Drive

$

$

Not available

Cub Cadet IH-125267

Nut, 5/8-18 C-Z Hex Lock

$

$

Not available

Screw, 8-32 X 1/4 Hex Hd Tap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet KH-X-25-15

Washer, 5/8

$

$

Currently unavailable

49

~NLA

Screen, Drive Cup Grass

$

$

Not available

50

Cub Cadet IH-385293-R1

Pin, Flywheel Drive Cup
(Superseded to KH-X-56-7)

$

$

Not available

51

Cub Cadet KH-41-067-10

Rod Assy, Connecting, Std

$

$

Not available

Cub Cadet KH-41-067-11

Rod Assy, Connecting, .010 U/S

$

$

Not available

52

Cub Cadet KH-230525

Lock, Connecting Rod Screw

$

$

Not available

53

Screw, Connecting Rod

Note: (Discontinued for service)

$

$

Not available

54

Cub Cadet KH-41-874-05

Piston Assy, Std

$

$

Not available

Cub Cadet KH-41-874-07

Piston Assy, .010 O/S

$

$

Not available

Cub Cadet KH-41-874-08

Piston Assy, .020 O/S

$

$

Not available

Cub Cadet KH-41-874-09

Piston Assy, .030 O/S

$

$

Not available

55

Pin, Piston, .005 O/S

$

$

Not available

Pin, Piston, .010 O/S

Note: (Order piston assy)

$

$

Not available

56

Cub Cadet KH-230004

Retainer, Piston Pin

$

$

Not available

57

Cub Cadet KH-232575

Ring Set, Piston, Std

$

$

Not available

Cub Cadet KH-232576

Ring Set, Piston, .010 O/S

$

$

Not available

Cub Cadet KH-232577

Ring Set, Piston, .020 O/S

$

$

Not available

Cub Cadet KH-232578

Ring Set, Piston, .030 O/S

$

$

Not available

58

Ring, Compression

Note: (Order ring set)

$

$

Not available

59

Ring, Oil Control

Note: (Order ring set)

$

$

Not available

60

Cub Cadet KH-41-755-25

Head, Cylinder

$

$

Not available

61

Cub Cadet IH-454871

Screw, Cylinder Head
(Superseded to KH-41-086-02)

$

$

Not available

62

Cub Cadet KH-220534

Washer, Cylinder Head

$

$

Not available

63

Cub Cadet KH-41-041-10

Gasket, Cylinder Head

$

$

Not available

64

Cub Cadet KH-A-230155-S

Camshaft Assy

$

$

Not available

65

Cub Cadet IH-401960-R1

Belt, Motor Generator Drive

$17.99

$

In Stock, only 4 left!

0

66

Cub Cadet KH-47-089-01

Spring, Camshaft Actuating

$

$

Not available

67

Cub Cadet KH-41-380-03

Pin, Camshaft

$

$

Not available

68

Cub Cadet KH-230293

Shim, Camshaft, .005

$

$

Not available

Cub Cadet KH-230294

Shim, Camshaft, .010

$

$

Not available

69

~NLA

Tappet, Exhaust Valve

$

$

Not available

70

~NLA

Tappet, Intake Valve

$

$

Not available

71

Cub Cadet KH-230008

Valve, Intake

$

$

Not available

72

Cub Cadet KH-230710

Valve, Exhaust

$

$

Not available

73

Cub Cadet KH-230010

Spring, Valve

$

$

Not available

74

Cub Cadet KH-230011

Retainer, Valve Spring

$

$

Not available

75

Cub Cadet IH-46209D

Keeper, Valve Spring

Note: (Order in sets of two)

$

$

Currently unavailable

76

Cub Cadet KH-231278

Pulley, Motor Generator Drive
(Superseded to KH-231278-S)

$72.99

$

Usually ships in 2-5 days

0

77

Cub Cadet KH-231273

Brace, Motor Generator Adjusting
(Superseded to KH-231273-S)

$63.99

$

Usually ships in 2-5 days

0

Cub Cadet 710-0376

Screw, 5/16-18 X 1 Znd Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3037

Screw, 3/8-16 X 1-3/4 Znd Hex Hd Cap
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

Washer, 5/16 Med Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-138542

Washer, 3/8 Int Tooth Lock

$

$

Not available

Cub Cadet IH-20893-R1

Washer, 11/32 X 1 X 11 Ga C-Z

$

$

Currently unavailable

Washer, 5/16 C-Z Int Tooth Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-134704-H1

Spacer

$

$

Currently unavailable

78

~NLA

Bracket, Motor Generator Mounting

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet KH-231149

Shim, Mounting Bolt

$

$

Not available

~NLA

Shim, Mounting Bolt

$

$

Not available

79

Cub Cadet KH-232614

Lever, Governor

$

$

Not available

Cub Cadet KH-X-67-46

Screw, 8-32 X 1/4 C-Z Slt Hex Hd Tap

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Screw, 1/4-20 X 1 C-Z Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0463

Washer, 9/32 X 5/8 X .065 C-Z

$4.49

$

In Stock, Qty 12

0

80

Cub Cadet KH-232617

Spring, Governor

$

$

Not available

81

Cub Cadet KH-230078

Linkage, Governor

$

$

Not available

82

Cub Cadet KH-A-235743-S

Gear Assy, Governor

$79.99

$

Usually ships in 2-5 days

0

83

Cub Cadet KH-231355

Pin, Governor Stop
(Superseded to KH-231355-S)

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 15/32 X .031, Copper

$

$

Not available

84

Cub Cadet KH-230540-S

Shaft Assy, Governor Cross

$116.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-58

Washer, 7/32 X 3/8 X .031 C-Z

Note: (Engines w/serial no. 3118734 & below)

$

$

Not available

~NLA

Washer, 17/64 X 11/32 X .031

Note: (Engines w/serial no. 3118735 & above order KH-230540-S)

$

$

Not available

85

Cub Cadet KH-230476

Bushing, Cross Shaft
(Superseded to KH-230476-S)

$

$

Not available

86

Cub Cadet KH-230149

Disc, Governor Regulating

$

$

Not available

Screw, 2 X 3/16 C-Z Rd Hd Blunt Metal Drive

Note: (Common Hardware, Purchase Locally)

$

$

Not available

87

Cub Cadet KH-230477

Bracket, Speed Control

$

$

Not available

88

Cub Cadet KH-234866

Bearing, Cross Shaft Needle

$

$

Not available

89

Motor Generator

Note: (For components see list of parts under details of motor generator)

$

$

Not available

Cub Cadet 710-0376

Screw, 5/16-18 X 1 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-23060-R1

Washer, 5/16 Znd Int Tooth Lock

$

$

Currently unavailable

90

Cub Cadet KH-238057

Kit, Hi-Tension Lead
(Superseded to KH-238057-S)

$

$

Not available

91

Cub Cadet IH-J8C

Plug, Spark (Champion)
(Superseded to 759-3339)

$3.49

$

In Stock, Qty 19

0

92

Cub Cadet KH-52-041-11

Gasket, Breaker Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

93

Cub Cadet KH-232535

Cover, Breaker
(Superseded to KH-232535-S)

$

$

Not available

Cub Cadet KH-X-131-1

Screw w/Internal Tooth Lock Washer, 10-24 X 3/8 C-Z Slt Rd Hd Mach

$

$

Not available

94

Cub Cadet KH-231281

Coil, Ignition
(Superseded to KH-41-519-21-S)

$149.99

$

In Stock, only 1 left!

0

~NLA

Clip, Ignition Coil

$

$

Not available

Screw w/Spring Lock Washer

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0173

Washer, 17/64 X 3/4 X .062 C-Z

$4.49

$

In Stock, Qty 20+

0

95

Cub Cadet IH-62188-C1

Condenser, Ignition Coil
(Superseded to KH-230722-S)

$31.99

$

Usually ships in 2-5 days

0

96

Cub Cadet KH-237625

Cable, Breaker

$

$

Not available

97

Cub Cadet KH-230249

Clip, Condenser to Breaker Cable

$

$

Not available

98

Cub Cadet KH-47-150-03

Breaker & Bracket Assy

$

$

Not available

99

Cub Cadet KH-47-150-03

Bracket, Breaker Point

$

$

Not available

100

Cub Cadet IH-62189-C1

Breaker Contact Set
(Superseded to KH-47-150-03)

$

$

Not available

Screw w/Washer, 8-32 X 1/4 Znd Slt Pan Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet KH-41-004-01

Kit, Engine Gasket Gasket, Air Horn
(Superseded to KH-41-755-06)

$

$

Not available

Cub Cadet KH-220537

Gasket, Air Cleaner

$

$

Not available

Cub Cadet KH-230071

Gasket, Bearing Plate

$

$

Not available

Cub Cadet KH-52-041-11

Gasket, Breaker Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

Cub Cadet KH-210223

Gasket, Carburetor

$

$

Not available

Cub Cadet KH-41-041-10

Gasket, Cylinder Head

$

$

Not available

Cub Cadet KH-52-041-17

Gasket, Fuel Pump Gasket, Muffler Exhaust

$

$

Not available

Cub Cadet KH-41-041-03

Gasket, Oil Pan Gasket, Sediment Bowl

$

$

Not available

Cub Cadet KH-230048

Gasket, Valve Cover

$

$

Not available

Cub Cadet KH-230046

Seal, Breather Shim

$

$

Not available
