857 (590-857-150) - Cub Cadet 72" Mulch Kit att2 General Assembly Parts Diagram

72" Mulch Kit

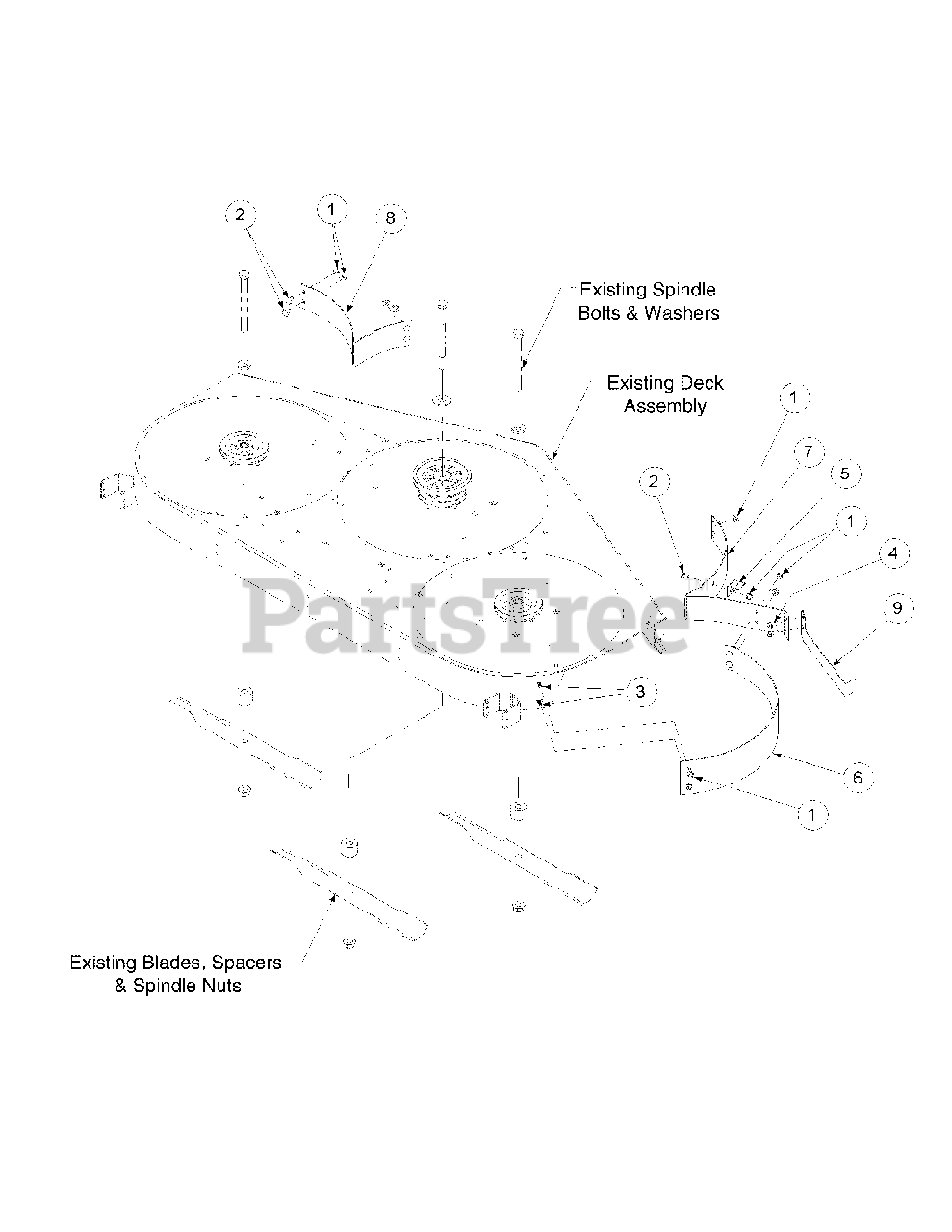

General Assembly Parts Diagram

  • Title
1

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 7

0

4

Cub Cadet 01008722

Self Tapping Screws, 3/8-16 x .875

$

$

Not available

5

Cub Cadet 02000880

Mulching Bracket Assembly

$33.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 02000938

Mulching Baffle, RH

$

$

Not available

7

Cub Cadet 02000939

Mulching Baffle, Center

$

$

Not available

8

Cub Cadet 02000942

Mulching Baffle, LH

$

$

Not available

9

Cub Cadet 02001625

Deflector Baffle

$

$

Not available
