8560 El (1694845) - Simplicity OHV 24" Snow Thrower, 8.5hp Engine, Pulleys, & Frame Group - 7-1/2 & 8-1/2 HP Briggs (4248epib) Parts Diagram

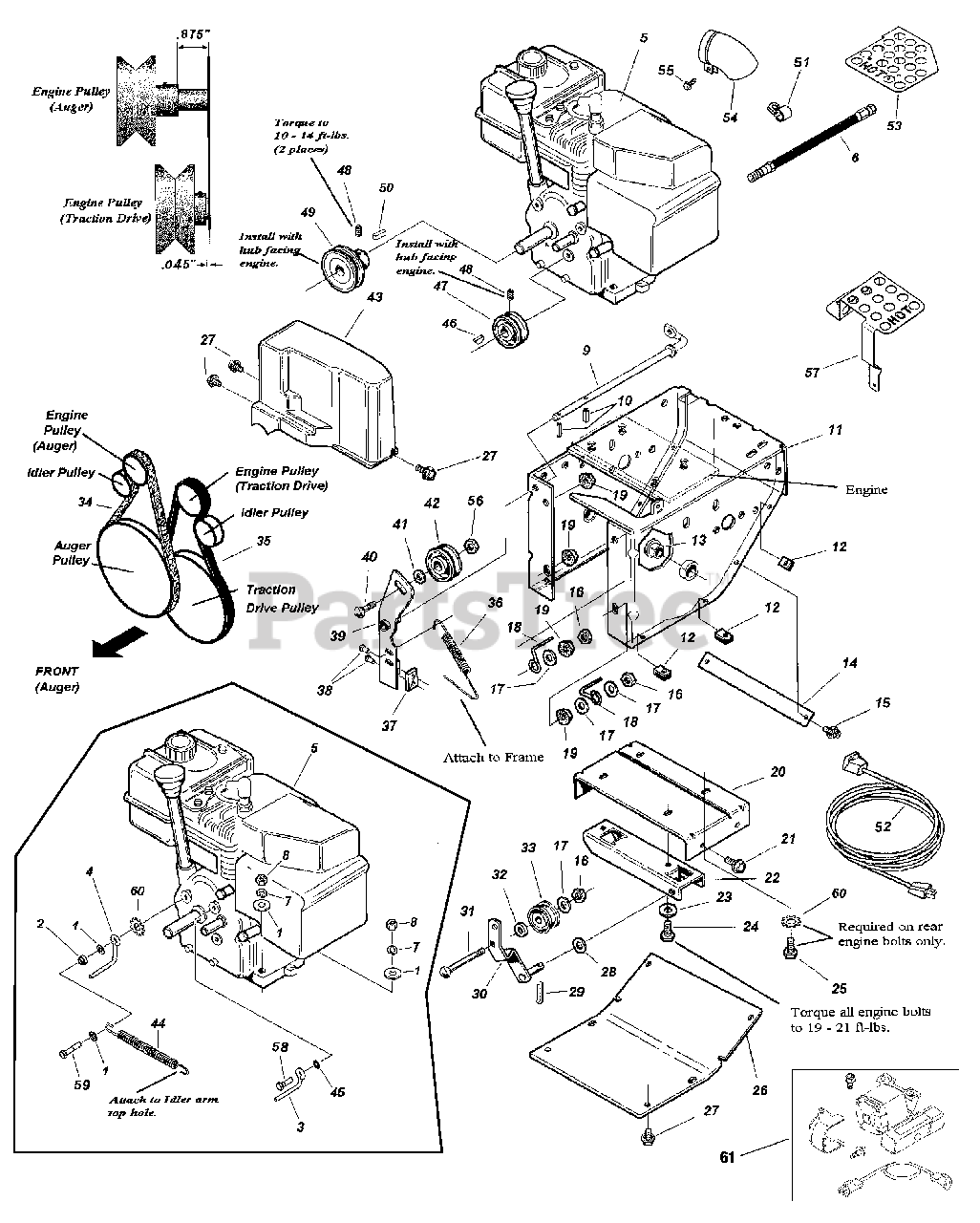

OHV 24" Snow Thrower, 8.5hp

Engine, Pulleys, & Frame Group - 7-1/2 & 8-1/2 HP Briggs (4248epib) Parts Diagram

  • Title

1

Simplicity 7090188SM

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

2

Simplicity 7012114SM

BUSHING, Differential Link

$4.99

$

In Stock, Qty 9

0

3

Simplicity 7100117SM

BELT GUIDE, LH, Traction Drive Belt

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 7100118SM

BELT GUIDE, RH, Traction Drive Belt

$13.99

$

Usually ships in 2-12 days

0

5

ENGINE, 7-1/2HP Briggs OHV

Note: (Model: 12D196, Type: 0110-E1)

$

$

Not available

5

ENGINE, 7-1/2HP Briggs OHV Euro

Note: (Model: 12D296, Type: 0113-E1)

$

$

Not available

5

ENGINE, 8-1/2HP Briggs Intek Mod 15 ES

Note: (Model: 15B194, Type: 0110-E1)

$

$

Not available

5

ENGINE, 8-1/2HP Briggs Intek Mod 15 Manual

Note: (Model: 15B196, Type: 0111-E1)

$

$

Not available

6

Simplicity 1726942SM

HOSE, Oil Drain

$28.99

$

Usually ships in 2-12 days

0

7

Simplicity 7090187SM

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 7090196

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1715092SM

ROD, Idler

$20.99

$

Usually ships in 2-12 days

0

10

Simplicity 2816169SM

ROLL PIN, 3/16 x 3/4"

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 7072566SM

WELDMENT, Intermediate Frame- Orange

$159.99

$

Usually ships in 2-12 days

0

12

Simplicity 1926018SM

SPEED NUT, 1/4-20 U-Type

$4.49

$

In Stock, Qty 12

0

13

Simplicity 1666001SM

BUSHING, 1.00 long

$6.99

$

In Stock, only 4 left!

0

14

Simplicity 1715559SM

SUPPORT, Tie Bar

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 1929477SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1960251SM

JAM NUT, 3/8-16 Hex Center Lock
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

17

Simplicity 1924940SM

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1674315SM

ROD, Belt Guide

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960687SM

NUT, 3/8-16 Hex Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1715756SM

SUPPORT, Frame

$33.99

$

Usually ships in 2-12 days

0

21

Simplicity 1924856SM

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 1715111SM

SUPPORT, Pivot

$12.99

$

Usually ships in 2-12 days

0

23

Simplicity 1919381SM

WASHER, 5/16" Flat
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 1922127SM

CAPSCREW, 5/16-18 x 1-3/4 Hex Head, G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 7027174SM

SCREW, 5/16-18 x 2" Hex Head Cap, GR 5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

26

Simplicity 7072555SM

COVER, Bottom- Orange

$74.99

$

Usually ships in 2-12 days

0

27

Simplicity 7091819SM

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

28

Simplicity 1925125SM

WASHER, 7/16" Flat

$6.49

$

In Stock, only 2 left!

0

29

Simplicity 7091598SM

COTTER PIN, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

30

Simplicity 1725369SM

WELDMENT, Idler Arm

$44.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960268SM

BOLT, 3/8-16 x 1-1/4" Short Square Neck Carriage, GR 5

$4.49

$

In Stock, Qty 10

0

32

Simplicity 2174870SM

SPACER, .377 ID x .75 OD x .312 Long

$45.99

$

Usually ships in 2-12 days

0

33

Simplicity 2118414SM

PULLEY, Idler

$26.99

$

Usually ships in 2-12 days

0

34

Simplicity 1717393SM

V-BELT,

Note: Auger Drive

$32.99

$

In Stock, only 4 left!

0

35

Simplicity 1725371SM

V-BELT,

Note: Traction Drive

$29.99

$

In Stock, Qty 5

0

36

Simplicity 1715118SM

SPRING, Extension

$8.49

$

In Stock, only 2 left!

0

37

Simplicity 1669313SM

PAD, Brake

$14.99

$

In Stock, Qty 6

0

38

Simplicity 2825160SM

RIVET, Blind

$4.49

$

In Stock, Qty 8

0

39

Simplicity 1717320SM

ASSEMBLY, Idler Arm w/Brake Pad

Note: (Includes Ref. Nos. 37 & 38)

$55.99

$

Usually ships in 2-12 days

0

40

Simplicity 7091810SM

BOLT, 3/8-16 x 1-3/4" Short Square Neck Carriage, GR 5
(Superseded to 703879)

$3.99

$

In Stock, Qty 5

0

41

Simplicity 1922755SM

WASHER, 3/8" Flat (.41 ID x 1.00 OD x .13 Thick)
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

42

Simplicity 1668477SM

PULLEY, Idler

$23.99

$

In Stock, Qty 20+

0

43

Simplicity 1725379SM

COVER, Belt

$30.99

$

In Stock, only 2 left!

0

44

Simplicity 2159106SM

SPRING, Extension, .562 O.D. x 4.250 Long
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

45

Simplicity 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

46

Simplicity 2824819SM

KEY - Hi Pro .125 x .625 HP 504 SAE1035

$3.49

$

Usually ships in 2-12 days

0

47

Simplicity 1674325SM

PULLEY, V Groove

$29.99

$

Usually ships in 2-12 days

0

48

Simplicity 1960619SM

SET SCREW, 5/16-18 x 5/16" Hex Recess, Cup Point

$3.49

$

In Stock, Qty 10

0

49

Simplicity 1720313SM

PULLEY, 2.75 OD

$34.99

$

Usually ships in 2-12 days

0

50

Simplicity 7010061SM

KEY, 3/16 Square x 1"

$4.49

$

Usually ships in 2-12 days

0

51

Simplicity 7015861SM

HARNESS CLIP

$3.49

$

Usually ships in 2-12 days

0

52

Simplicity 1724064SM

CORD, Electric Start

$40.99

$

Usually ships in 2-12 days

0

53

Simplicity 1725665SM

GUARD, Muffler

$15.99

$

Usually ships in 2-12 days

0

54

Simplicity 1727032SM

MUFFLER, Deflector- B&S

$12.99

$

Usually ships in 2-12 days

0

55

Simplicity 1727033SM

HEX SCREW, Thread Rolling M4 x 0.7

$3.49

$

Usually ships in 2-12 days

0

56

Simplicity 1930645SM

NUT, 3/8-16 Hex Flange Lock Two Way
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

57

Simplicity 7300133ASM

HEAT SHIELD, 7.5HP B&S Powerbuilt Muffler

Note: (Used on 7.5HP Models)

$43.99

$

Usually ships in 2-12 days

0

58

Simplicity 7090238SM

SCREW, 5/16-24 x 1" Hex Head Cap, GR 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

59

Simplicity 7091609SM

SCREW, 5/16-24 x 1-1/2" Hex Head Cap, GR 5

$4.99

$

Usually ships in 2-12 days

0

60

Simplicity 1920427SM

LOCKWASHER, 5/16" Exterior Tooth

$3.99

$

Usually ships in 2-12 days

0

61

Simplicity 7600016SM

KIT, Electric Start, 230 volt

$272.99

$

Usually ships in 2-12 days

0
