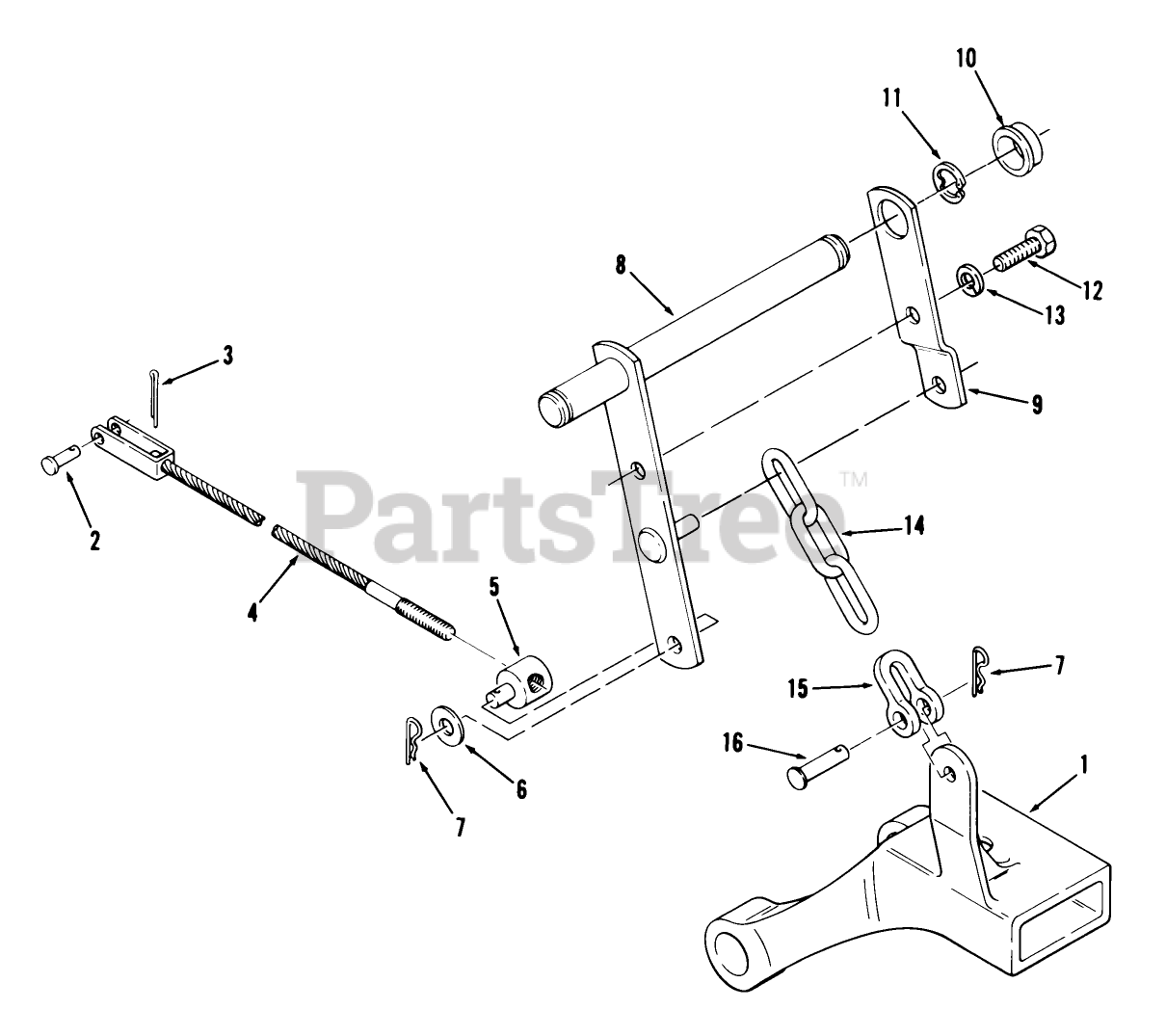

85524 - Toro Slot Hitch (1978) PARTS LIST-SLOT HITCH FACTORY ORDER NUMBER 8-5524 Parts Diagram

Slot Hitch

PARTS LIST-SLOT HITCH FACTORY ORDER NUMBER 8-5524 Parts Diagram

  • Title
1

Toro 3926

Hitch

$

$

Not available

2

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

3

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

4

Toro 105542

ASSY-LIFT CABLE

$171.99

$

Usually ships in 3-6 days

0

5

Toro 104524

TRUNNION-CLUTCH ROD

$43.99

$

Usually ships in 3-6 days

0

6

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

7

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

8

Toro 106532

Lever Assy.
(Superseded to 108517-01)

$

$

Not available

9

Toro 106619

LOCK BRACKET R

$

$

Not available

10

Toro 6254

BUSHING

$20.99

$

In Stock, only 2 left!

0

11

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

12

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

13

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

14

Toro 106526

CHAIN-LIFT

$

$

Not available

15

Toro 105820

Clevis
(Superseded to 79-2280)

$20.99

$

Usually ships in 3-6 days

0

16

Toro 105821

Clevis Pin
(Superseded to 9329584)

$

$

Not available

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0
