855 (590-855-150) - Cub Cadet 60" Induction Air MCS Kit att Blower Assembly Parts Diagram

60" Induction Air MCS Kit

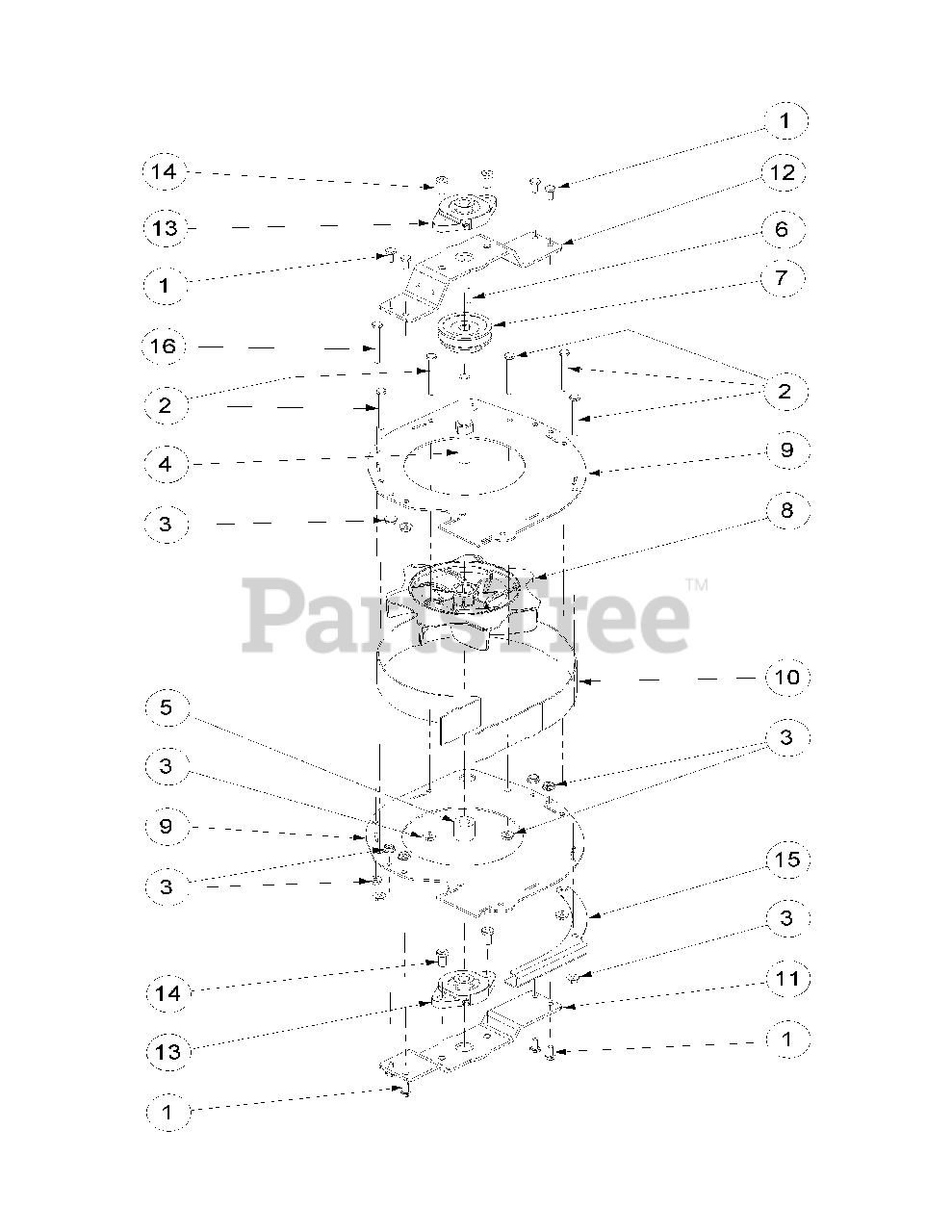

Blower Assembly Parts Diagram

  • Title

1

Cub Cadet 01000338

HHCS, 1/4-20 x 0.620
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01000898

HHCS, 1/4-20 x 2.50

$

$

Not available

3

Cub Cadet 01002766

Hex Nut Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01010191

Blower Shaft
(Superseded to 01010191P)

$

$

Not available

5

Cub Cadet 01010193

Blower Spacer

$21.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 02000036

Key, 1/8 x 1/8 x 1.00

$

$

Not available

7

Cub Cadet 02000041

Cast Pulley, .500 ID x 2.50 OD

$

$

Not available

8

Cub Cadet 02000077

Blower Impeller
(Superseded to 731-04275)

$35.99

$

In Stock, only 4 left!

0

9

Cub Cadet 02000704

Blower Housing Cover

$

$

Not available

10

Cub Cadet 02000703

Blower Housing Band

$

$

Not available

11

Cub Cadet 02000312

Bottom Bearing Mounting Plate

$

$

Not available

12

Cub Cadet 02000313

Top Bearing Mounting Plate

$

$

Not available

13

Cub Cadet 02000182

Flange Bearing

$221.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02000185

Socket Head Screw, 3/8-16 x .75

$

$

Not available

15

Cub Cadet 02000829

Guard Deflector

$

$

Not available

16

Cub Cadet 02000925

HHCS, 1/4-20 x 2.75

$

$

Not available
