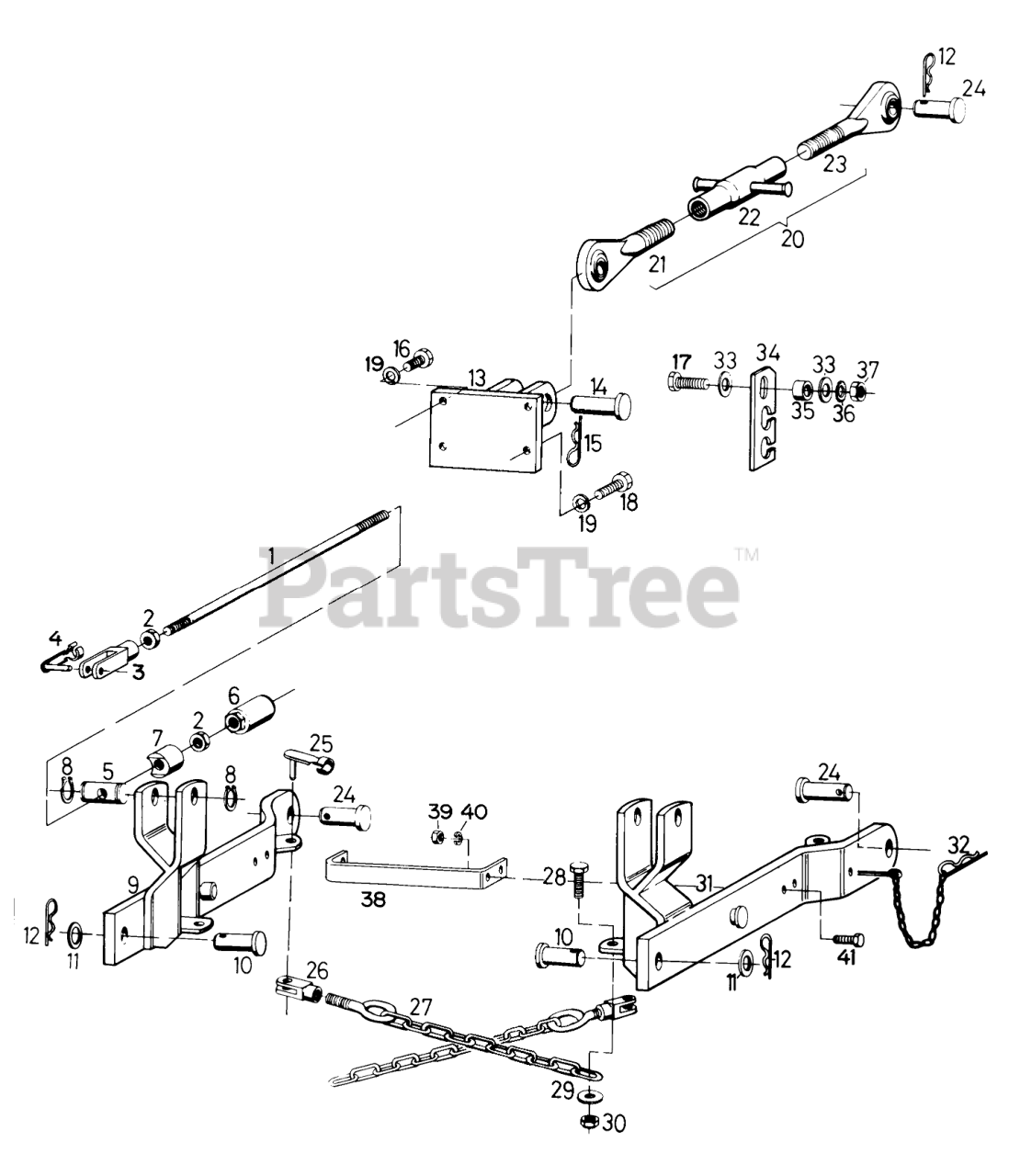

85401 - Toro 3-Point Hitch (1979) PARTS LIST FOR 3-POINT HITCH FACTORY ORDER NUMBER 8-5401 Parts Diagram

3-Point Hitch

PARTS LIST FOR 3-POINT HITCH FACTORY ORDER NUMBER 8-5401 Parts Diagram

  • Title
1

Toro 251163

Lift Rod

$

$

Not available

2

$

$

Not available

3

Toro 251230

Clevis

$

$

Not available

4

Toro 251220

Self Locking Clevis Pin

$

$

Not available

5

Toro 252239

Trunnion

$

$

Not available

6

Toro 251167

Adjuster

$

$

Not available

7

Toro 252240

Collar

$

$

Not available

8

Toro 250496

CIRCLIP

$

$

Not available

9

Toro 252242

Lift Arm (Right)

$

$

Not available

10

Toro 251216

Clevis Pin

$

$

Not available

11

Toro 250425

Washer

$

$

Not available

12

Toro 251066

Hairpin Cotter

$

$

Not available

13

Toro 251172

Upper Link Support Bracket

$

$

Not available

14

Toro 251219

Clevis Pin

$

$

Not available

15

Toro 251066

Hairpin Cotter

$

$

Not available

16

$

$

Not available

17

$

$

Not available

18

$

$

Not available

19

Toro 252062

Lockwasher

$

$

Not available

20

Toro 252246

Upper Link Assy.

$

$

Not available

21

Toro 252247

Link End R.H.

$

$

Not available

22

Toro 252248

Turnbuckle

$

$

Not available

23

Toro 252249

Link End L.H.

$

$

Not available

24

Toro 251217

Clevis Pin

$

$

Not available

25

Toro 252250

Self Locking Clevis Pin (Small)

$

$

Not available

26

Toro 252251

Clevis (Small)

$

$

Not available

27

Toro 252252

Sway Chain

$

$

Not available

28

$

$

Not available

29

Toro 251433

Washer

$

$

Not available

30

$

$

Not available

31

Toro 252254

Lift Arm (Left)

$

$

Not available

32

Toro 252255

Hairpin Cotter & Chain

$

$

Not available

33

Toro 251205

Washer

$

$

Not available

34

Toro 251164

Latch Link

$

$

Not available

35

Toro 251165

Spacer

$

$

Not available

36

Toro 252244

Lockwasher

$

$

Not available

37

$

$

Not available

38

Toro 251334

Stabilizer

$

$

Not available

39

$

$

Not available

40

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

41

$

$

Not available
