853 - BCS America Two-Wheeled Tractor Clutch (SN: 779511 & Above) Parts Diagram

Two-Wheeled Tractor

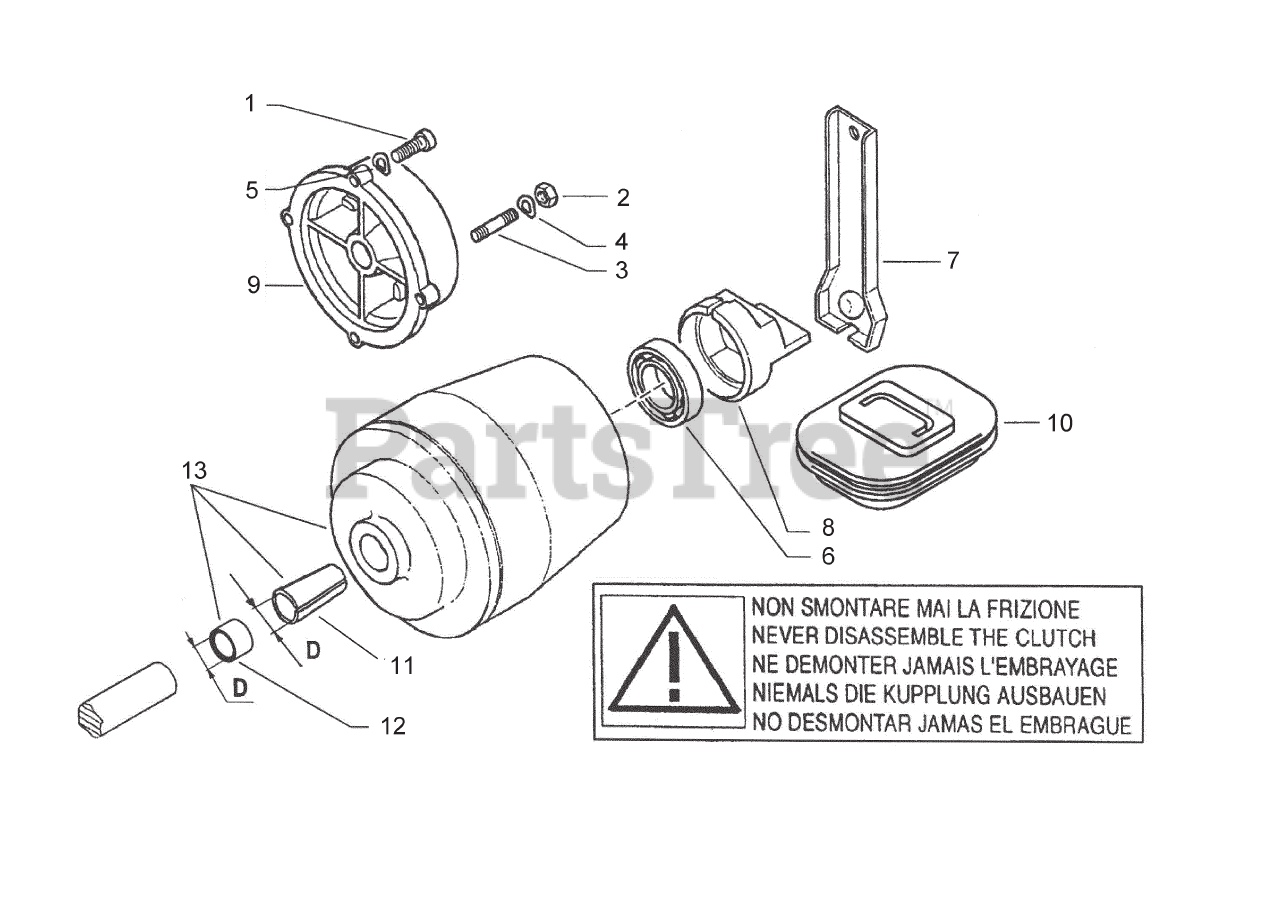

Clutch (SN: 779511 & Above) Parts Diagram

  • Title
1

BCS America 311.00015

SCREW, 3/8X1"

Note:

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 312.11080

NUT, M8

Note:

$0.99

$

In Stock, only 3 left!

0

3

BCS America 313.12088

STUD, M8X40X14X14

Note:

$8.49

$

In Stock, only 2 left!

0

4

BCS America 314.23084

WASHER, WAVE

Note:

$0.99

$

In Stock, Qty 10

0

5

BCS America 314.23105

WASHER, WAVE

Note:

$1.49

$

In Stock, Qty 5

0

6

BCS America 371.12173

BEARING, M17X40X12

Note:

$10.99

$

In Stock, only 3 left!

0

7

BCS America 509.56262

LEVER, RECOIL START

Note:

$58.99

$

In Stock, only 1 left!

0

8

BCS America 524.47896

PUSHER CONE

Note:

$

$

Not available

9

BCS America 531.56150

FLANGE

Note:

$199.99

$

Usually ships in 5-8 days

0

10

$32.99

$

Usually ships in 5-8 days

0

11

BCS America 561.56281

SPACER

Note:

$41.99

$

Usually ships in 5-8 days

0

12

BCS America 561.56285

SPACER

Note:

$23.99

$

Usually ships in 5-8 days

0

13

BCS America 592.C1011

CLUTCH (INCLUDES 6 & 8), HONDA GX240 - GX270

Note:

$428.99

$

In Stock, only 1 left!

0
