853 (590-853-150) - Cub Cadet 48" Induction Air MCS Kit att General Assembly Parts Diagram

48" Induction Air MCS Kit

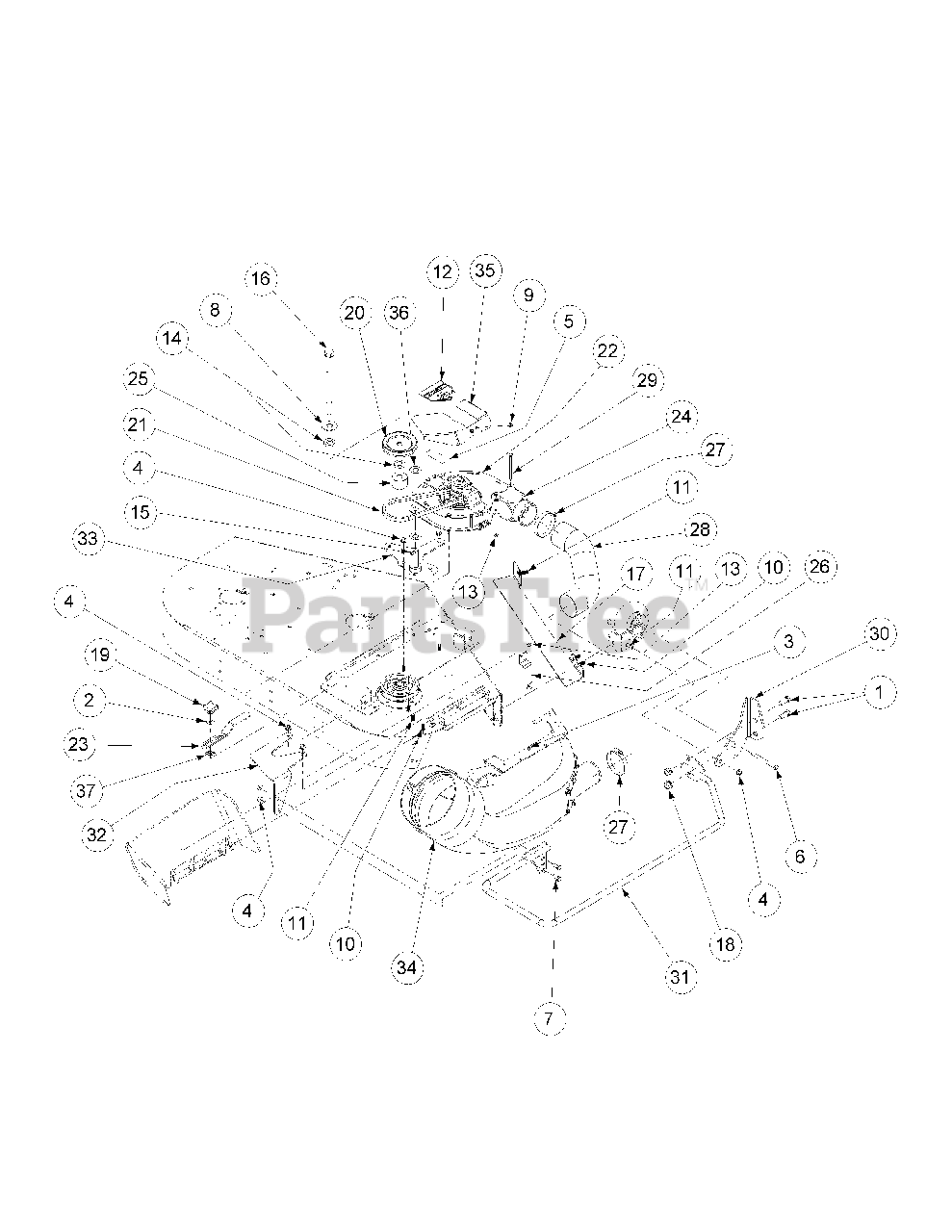

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00002924

HHCS, 1/2-13 x 1.25

$

$

Not available

2

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 777S32328

Decal, Warning Shield Missing

$5.49

$

In Stock, only 3 left!

0

6

Cub Cadet 01002539

HHCS, 3/8-16 x 4.50
(Superseded to 710-0944)

$10.99

$

In Stock, Qty 14

0

7

Cub Cadet 01000368

HHCS, 3/8-16 x .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

8

Cub Cadet 01000392

Flat Washer, .781 ID x 2.00 OD x .105
(Superseded to 736-3014)

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 01000628

Screw, TT, 1/4-20, 0.5, Hex Index Washer
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

11

Cub Cadet 01002010

Carriage Screw, 3/8-16 x 1.25
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet 01002166

Decal, Danger Hands & Feet

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01002766

Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01003123

Spacer, .812 ID x .268 Lg.
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01003537

Cotter Pin, .148 x 3.00

$

$

Not available

16

Cub Cadet 01006679

Hex Cap Screw, 3/4-16, 8.50

$40.99

$

In Stock, only 1 left!

0

17

Cub Cadet 02000791

Baffle Bracket

$

$

Not available

18

Cub Cadet 01010119

Nut, 1/2-13, Flange Lock

$7.49

$

In Stock, only 2 left!

0

19

Cub Cadet 02000040

Plastic Knob

$20.99

$

In Stock, only 2 left!

0

20

Cub Cadet 756-3089

Pulley, V-Type .4.5 Dia.

$36.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02000106

V-Belt

$

$

Not available

22

N/A

Blower Assembly

$

$

Not available

23

Cub Cadet 02000315

Tension Assembly

$

$

Not available

24

Cub Cadet 02000316

Adaptor Tube

$

$

Not available

25

Cub Cadet 02000454

Spacer, .76 OD x 2.00 OD x 1.28

$52.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02000712

Chute Stop Deflector Bracket

$

$

Not available

27

Cub Cadet 02000717

Hose Clamp, 3.00 Dia.

$

$

Not available

28

Cub Cadet 02001312

Hose Duct

$

$

Not available

29

Cub Cadet 02000730

HHCS, 1/4-20 x 3.50

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02000745

MCS Guard Plate

$

$

Not available

31

Cub Cadet 02000743

MCS Guard Weldment

$

$

Not available

32

Cub Cadet 02000747

MCS Guard Support Plate

$

$

Not available

33

Cub Cadet 02000740

Pivot Weldment

$

$

Not available

34

Cub Cadet 02000835

Chute Elbow Assembly

$311.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02000411

Deck Blower Deflector Cover

$

$

Not available

36

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 01008225

Push Retainer
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0
