8526 (31AS6GN3766) - Troy-Bilt Storm 26" Snow Thrower (2006) Handle Assembly Parts Diagram

Storm 26" Snow Thrower

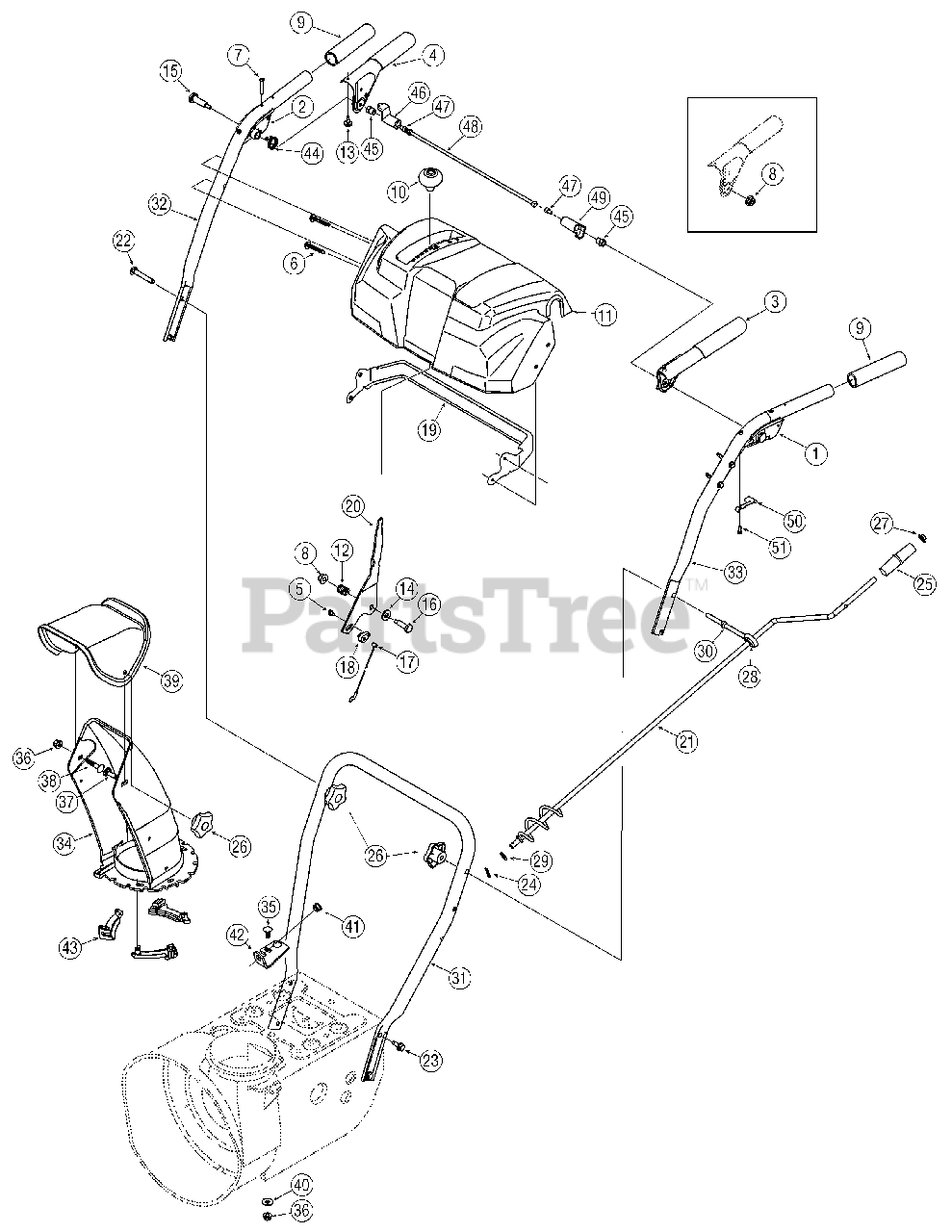

Handle Assembly Parts Diagram

  • Title

1

Troy-Bilt 631-04133

Handle Assembly, Lock, LH
(Superseded to 631-04133A)

$15.99

$

In Stock, Qty 8

0

2

Troy-Bilt 631-04134A

Handle Assembly, Lock, RH
(Superseded to 631-04134B)

$15.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 684-04105A

Handle Ass’ y, Engagement LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 684-04106A

Handle Ass’y, Engagement, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0224

Screw, #10-16, 0.500
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-04586

Screw, 1/4-20, 1.625

$6.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-1233

Screw, Machine, #10-24, 1.375

$4.99

$

In Stock, Qty 11

0

8

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 720-0274

Grip, 1.0 ID x 5.0

$11.99

$

In Stock, Qty 11

0

10

Troy-Bilt 720-04039

Knob, Shift

$10.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 731-05334

Handle Panel, N-Style
(Superseded to 731P05334C)

$72.99

$

In Stock, Qty 5

0

12

Troy-Bilt 732-0193

Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

13

Troy-Bilt 735-0199A

Bumper, Rubber, .62 OD x .22

$7.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 736-0267

Washer, Flat, 385 x .87 x .06

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 738-04122

Screw, Shoulder, .43 x 1.34, 1/4-20
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 738-04125

Screw, Shoulder, .374 Dia. x 1.05

$4.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 746-04227A

Cable, Speed Selector

$22.99

$

In Stock, Qty 15

0

18

Troy-Bilt 746-0605

Barrel Holder, Cable, LH
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 790-00248

Bracket, Panel
(Superseded to 790-00248E-0637)

Variations

Troy-Bilt 790-00248-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 5

0

$24.99

$

In Stock, Qty 5

0

20

Troy-Bilt 790-00203

Lever, Shift
(Superseded to 790-00203-0637)

Variations

Troy-Bilt 790-00203-0637

Shift Lever - POWDER BLACK (0637)

$

$

Not available

$

$

21

Troy-Bilt 684-04104

Crank Assembly, Chute
(Superseded to 684-04104-0637)

Variations

Troy-Bilt 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-0449

Screw, Carriage, 5/16-18, 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-1260A

Screw, 5/16-18, 0.75, Gr5

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 714-0104

Pin, Cotter, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 720-0201A

Crank Knob, 1.0 Dia. x 3.2, Black

$10.99

$

In Stock, Qty 5

0

26

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 726-0100

Cap, Push, 3/8 Rod

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 735-0234

Grommet, .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 736-0185

Washer, Flat, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 747-04263

Eye Bolt, Chute Crank

$9.49

$

In Stock, only 2 left!

0

31

Troy-Bilt 749-04138

Handle, Lower
(Superseded to 749-04138A)

Variations

Troy-Bilt 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 749-04141

Handle, Upper, RH

Variations

Troy-Bilt 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 749-04142

Handle, Upper, LH
(Superseded to 749-04191A)

Variations

Troy-Bilt 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 731-04912A

Chute, Lower, 5.0 Diameter
(Superseded to 731-04912B)

$38.99

$

In Stock, Qty 11

0

35

Troy-Bilt 710-0276

Bolt, Carriage, 5/16-18, 1.0

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 710-04071

Bolt, Carriage, 5/16-18, 1.0

$4.49

$

In Stock, Qty 13

0

38

Troy-Bilt 710-0451

Bolt, Carriage, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-04426A

Chute, Upper, w/ Label
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

40

Troy-Bilt 736-0159

Washer.349 ID x .879 OD x .063

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 741-0475

Bushing, Plastic, .380
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 784-5647

Bracket, Chute Crank
(Superseded to 784-5647-0637)

Variations

Troy-Bilt 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

43

Troy-Bilt 731-04869

Flange Keeper, Chute
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 732-04238

Torsion Spring
(Superseded to 732-04238B)

Note: Available on units equipped with clutch lock feature.

$5.49

$

In Stock, Qty 11

0

45

Troy-Bilt 712-04081A

Nut, Hex, 1/4-20

Note: Available on units equipped with clutch lock feature.

$7.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 731-04894B

Lock Plate
(Superseded to 731-04894D)

Note: Available on units equipped with clutch lock feature.

$5.49

$

In Stock, Qty 11

0

47

Troy-Bilt 710-04354

Cap Screw 1/4-20 x .375

Note: Available on units equipped with clutch lock feature.

$3.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 711-04287

Pivot Rod
(Superseded to 753-04882C)

Note: Available on units equipped with clutch lock feature.

$42.99

$

In Stock, only 2 left!

0

49

Troy-Bilt 731-04896A

Clutch Lock Cam
(Superseded to 731-04896C)

Note: Available on units equipped with clutch lock feature.

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 732-04219A

Clutch Lock Spring
(Superseded to 732-04219C)

Note: Available on units equipped with clutch lock feature.

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 710-04326

Screw #8-16 x .50

Note: Available on units equipped with clutch lock feature.

$3.99

$

In Stock, only 2 left!

0
