8526 (31AE6GQ3766) - Troy-Bilt Storm 26" Snow Thrower (2005) Drive Parts Diagram

Storm 26" Snow Thrower

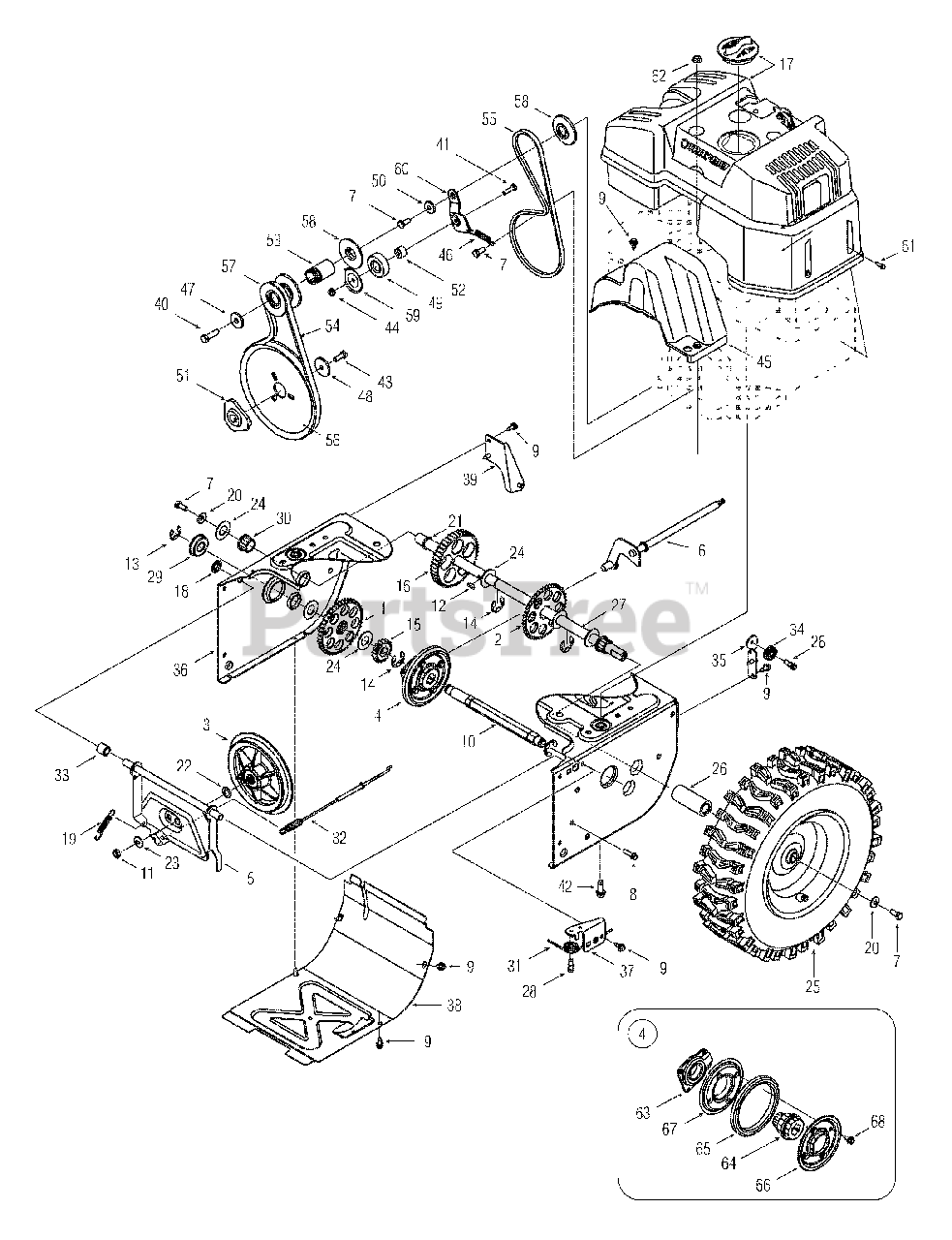

Drive Parts Diagram

  • Title

1

Troy-Bilt 617-04026

Gear Assembly, 16/4 4T
(Superseded to 917-04026A)

$125.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 617-04025

Gear Assembly, 16/4 4T
(Superseded to 917-04025A)

$107.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 656-04024

Disc Assembly , Friction Wheel .375 x 6.75

$75.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 684-04066

Wheel Assembly, Friction, 4.9 OD
(Superseded to 984-04066)

$108.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 684-04045-0637

Support Bracket Ass'y, Friction Wheel

$

$

Not available

6

Troy-Bilt 684-04139

Shift Assembly, Rod

$57.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-0627

Screw, 5/16-24 x .7 50, Gr5

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0788

Screw, 1/4-20x 1.000

$7.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-1652

Screw, 1/4-20x .625

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 711-04246A

Hex Shaft, Drive, .75
(Superseded to 753-05173A)

$

$

Not available

11

Troy-Bilt 712-0711

Nut, Jam, 3/8-24, Gr2

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 714-0161

Key, Hi-pro 3/16x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 716-0231

Ring, E Type, .750

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 716-0136

Ring, E-Type, .875

$8.99

$

In Stock, Qty 18

0

15

717-04129a

Pinion, 16T

$

$

Not available

16

717-04137a

Gear, 44T

$

$

Not available

17

Troy-Bilt 684-04014A

Shroud Assembly, Troy-Bilt
(Superseded to 984-04014A)

$

$

Not available

18

Troy-Bilt 726-0221

Nut, Speed, .500

$6.49

$

In Stock, only 2 left!

0

19

Troy-Bilt 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-04161

Washer, Flat, .75 x 1.00 x .060

$6.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 736-0105

Washer, Bell, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0287

Washer, Flat, .793 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 634-04147A

Wheel, Complete, 15 x 5 x 6, LH

Variations

Troy-Bilt 634-04147A-0911

WHEEL COMP-LH - Carlisle Gray (0911)

$194.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-04147A-0931

Wheel Assembly, LH - Carlisle Beige (0931)

$239.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04147A-0921

WHEEL COMP-LH - Carlisle White (0921)

$239.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04147A-0941

WHEEL COMP-LH - Carlisle Yellow (0941)

$194.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04147A-0961

WHL COMP-LH - Carlisle Gray (0961)

$222.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04147A-4028

WHL COMP-LH - SEARS YELLOW (4028)

$194.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-04147A-0951

WHEEL COMP-LH - Carlisle Yellow (0951)

$

$

Not available

$193.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 634-04148A

Wheel, Complete, 15 x 5 x 6, RH

Variations

Troy-Bilt 634-04148A-0911

WHEEL COMP-RH - Carlisle Gray (0911)

$232.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04148A-0941

WHEEL COMP-RH - Carlisle Yellow (0941)

$216.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04148A-0921

WHEEL COMP-RH - Carlisle White (0921)

$232.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04148A-0961

WHL COMP-RH - Carlisle Gray (0961)

$216.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04148A-4028

WHL COMP-RH - SEARS YELLOW (4028)

$232.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04148A-0931

WHEEL COMP-RH - Carlisle Beige (0931)

$

$

Not available

Troy-Bilt 634-04148A-0951

WHEEL COMP-RH - Carlisle Yellow (0951)

$

$

Not available

$189.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 731-04873

Spacer, 1.25 OD x .75 ID x 3.00

$10.99

$

In Stock, Qty 7

0

27

Troy-Bilt 738-04095A

Axle, .75 x 22

$139.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 738-0924

Screw, 1/4-28 x .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

29

Troy-Bilt 741-0563

Bearing, Ball, 17 x 40 x 12
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

30

Troy-Bilt 741-0245

Bearing, Hex Flange x .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 746-0897

Cable, Auger, 44.75
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 746-04086

Cable, Drive, 41.75
(Superseded to 946-04086)

$40.99

$

In Stock, only 4 left!

0

33

Troy-Bilt 748-0190

Spacer, .508 ID x .75 OD x .68

$6.49

$

In Stock, Qty 11

0

34

Troy-Bilt 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

35

Troy-Bilt 784-5687A

Guide Bracket, Auger Cable
(Superseded to 784-5687A-0637)

Variations

Troy-Bilt 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

36

Troy-Bilt 790-00072-0638

Frame

$

$

Not available

37

Troy-Bilt 790-00096-0637

Guide Bracket, Front, Auger Cable
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 2 left!

0

38

Troy-Bilt 790-00054-0638

Cover, Frame
(Superseded to 790-00054-0691)

$

$

Not available

39

Troy-Bilt 790-00055-0637

Roller Bracket, Drive Cable

$

$

Not available

40

Troy-Bilt 710-0191

Screw, 3/8-24x 1.25, Gr8

$4.99

$

In Stock, Qty 9

0

41

Troy-Bilt 710-0597

Screw, 1/4-20x 1.00, Gr5

$3.99

$

In Stock, Qty 13

0

42

Troy-Bilt 710-0654A

Screw, Sems, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 710-1245B

Screw, 5/16-24 x .875, Gr8

$8.49

$

In Stock, only 4 left!

0

44

Troy-Bilt 712-04064

Nut, Flange Lock, Nylon, 1/4-20, Gr F

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 731-04792

Cover, Belt
(Superseded to 731Z04792F)

$24.99

$

In Stock, only 4 left!

0

46

Troy-Bilt 732-0710

Spring, Extension, .3 8 OD x 2.68
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 16

0

47

Troy-Bilt 736-0247

Washer, Flat, .406 x 1.25 x.157

$9.49

$

In Stock, Qty 12

0

48

Troy-Bilt 736-0505

Washer, Flat, .34 x 1.50 x .1 50

$6.49

$

In Stock, Qty 11

0

49

Troy-Bilt 741-0919

Bearing, Ball, 20 x 47 x 14
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 748-04053

Pulley, Adapter, .75 Dia.
(Superseded to 748-04053A)

$22.99

$

In Stock, only 3 left!

0

52

Troy-Bilt 750-04230

Spacer, .777 OD x .2 60 ID x.550
(Superseded to 750-04230A)

$5.49

$

In Stock, only 1 left!

0

53

Troy-Bilt 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 4 left!

0

54

Troy-Bilt 754-04050

V-Belt, 1/2"
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 754-0456

V-Belt, 3/8"
(Superseded to 954-0456)

$29.99

$

In Stock, only 4 left!

0

56

Troy-Bilt 756-04109

Pulley, Auger, 8.1 x .50

$54.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 756-04113

Pulley, Half, 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, only 2 left!

0

58

Troy-Bilt 756-04114

Pulley, Half, 2.2 OD

$13.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 790-00062

Washer, Bearing, 2.12 OD x .255 ID
(Superseded to 990-00062)

$8.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt 790-00082-0637

Idler, Bracket, Drive

$

$

Not available

61

Troy-Bilt 710-04082

Screw, #10-16 x .75

$

$

Not available

62

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 618-04169

Bearing Assembly , Friction Wheel

$

$

Currently unavailable

64

Troy-Bilt 718-04070

Hub, Friction Wheel

$

$

Currently unavailable

65

Troy-Bilt 735-0243B

Friction Wheel Rubber, 4.875 OD
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 790-00010

Plate, Friction, 12 Pt 4.60 Dia

$13.99

$

In Stock, only 1 left!

0

67

Troy-Bilt 790-00011

Plate, Friction, Extrs, 12 Pt 4.60 Dia

$13.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 710-0896

Screw, Self-tapping, 1/4-14 x 0.625

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 734-04012

Tire Only
(Superseded to 734-04012-0901)

Variations

Troy-Bilt 734-04012-0901

TIRE - Carlisle (0901)

$100.99

$

Usually ships in 3-6 days

0

$100.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
