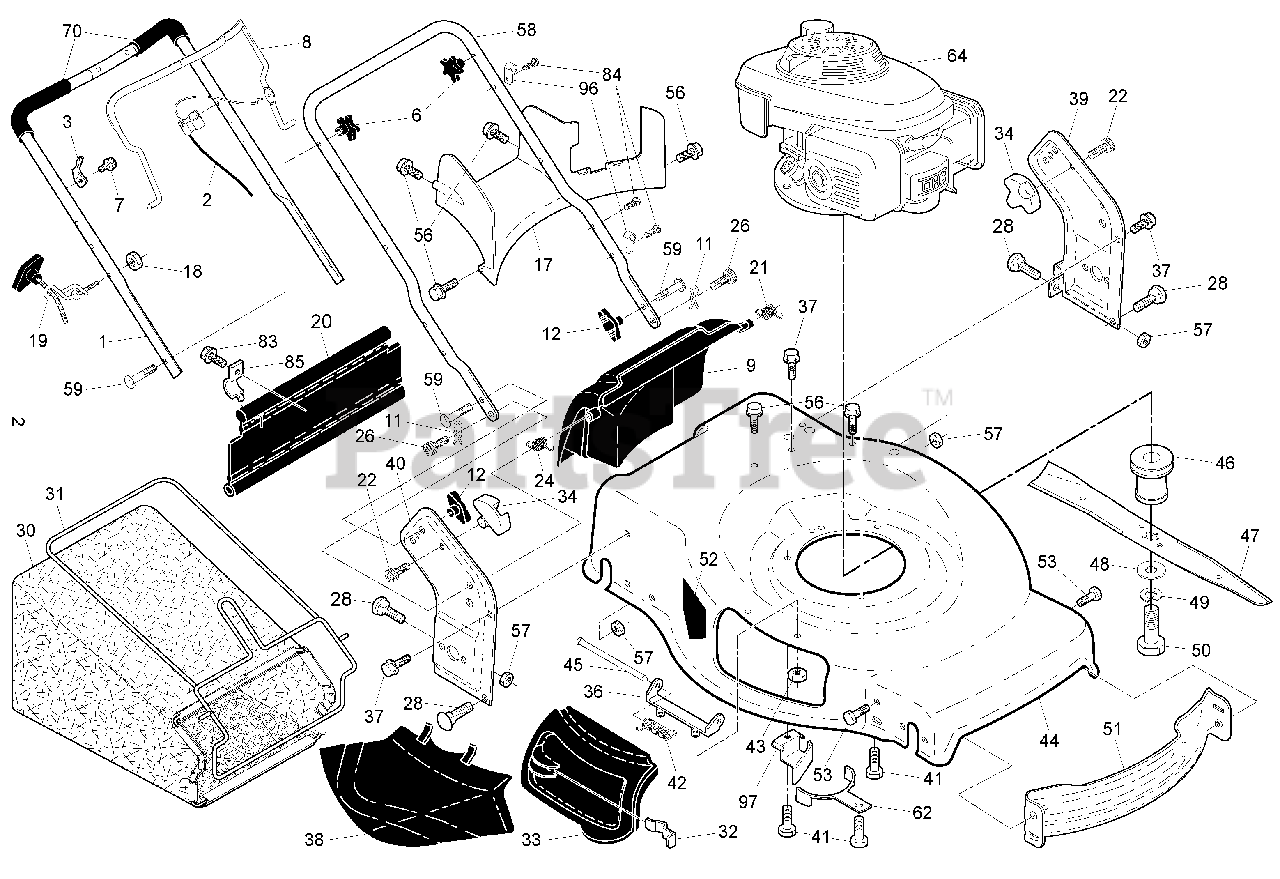

8522 RLS (961430065-00) - Husqvarna 22" Walk-Behind Mower (2010-02) Frame Parts Diagram

22" Walk-Behind Mower

Frame Parts Diagram

  • Title

1

Husqvarna 532186296

Upper Handle Assembly

Note: (Includes Foam Grip)

$54.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532424037

Cable, Engine Zone Control
(Superseded to 532440386)

$20.99

$

In Stock, Qty 5

0

3

Husqvarna 532430034

Bracket, Upstop

$6.99

$

In Stock, only 3 left!

0

6

Husqvarna 532182398

Handle Knob, Star

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532750634

Screw #10-24 x 1/2

$6.49

$

In Stock, Qty 5

0

8

Husqvarna 532426812

Control Bar

$

$

Not available

9

Husqvarna 532431390

Rear Door Assembly
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532425575

Hairpin, Door/Handle Pivot

$6.49

$

In Stock, Qty 18

0

12

Husqvarna 532191938

Handle Knob, Standard
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

17

Husqvarna 532431238

Rear Baffle
(Superseded to 581782101)

$47.99

$

In Stock, Qty 6

0

18

Husqvarna 532132004

Keps Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Husqvarna 532429157

Rear Skirt

$17.99

$

In Stock, only 1 left!

0

21

Husqvarna 532419949

Spring, Rear Door, LH, Black

$6.49

$

In Stock, Qty 9

0

22

Husqvarna 532141841

Screw, Panhead, Torx #20

$7.49

$

In Stock, only 2 left!

0

24

Husqvarna 532419948

Spring, Rear Door, RH, Grey

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 532419945

Screw, Rear Door/Handle Pivot

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 872250505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 532429017

Grassbag

$

$

Currently unavailable

31

Husqvarna 532419951

Frame, Grass Catcher
(Superseded to 585054702)

$34.99

$

In Stock, Qty 7

0

32

Husqvarna 532419944

Latch, Mulcher Door

$

$

Not available

33

Husqvarna 532423357

Mulcher Door
(Superseded to 594942002)

$10.99

$

In Stock, Qty 13

0

34

Husqvarna 532426064

Bracket, Grassbag

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532175735

Hinge Bracket Assembly

$

$

Not available

37

Husqvarna 532428867

Screw

$6.49

$

In Stock, Qty 15

0

38

Husqvarna 532426129

Discharge Deflector

$11.99

$

In Stock, Qty 8

0

39

Husqvarna 532430039

Handle Bracket, LH
(Superseded to 581353703)

$22.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532430033

Handle Bracket, RH
(Superseded to 581353603)

$27.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

Screw, Dogpoint 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532193000

Spring, Torsion

$7.49

$

In Stock, only 4 left!

0

43

Husqvarna 532191730

Nut, Hex, Nylock

$7.49

$

In Stock, Qty 5

0

44

Husqvarna 532432263

Kit, Lawn Mower Housing

$

$

Not available

45

Husqvarna 532175650

Rod, Hinge

$7.49

$

In Stock, Qty 11

0

46

Husqvarna 532421782

Blade Adapter / Pulley
(Superseded to 581473301)

$17.99

$

In Stock, Qty 13

0

47

Husqvarna 532420463

Blade, 22"

$22.99

$

In Stock, only 2 left!

0

48

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, only 3 left!

0

49

Husqvarna 532850263

Washer, Helical
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532430599

Front Baffle

$

$

Not available

52

Husqvarna 532404763

Decal, Danger
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817000510

Screw

$7.49

$

In Stock, Qty 12

0

56

Husqvarna 817411312

Screw, Hex Washer Head #13 x 3/4

$7.49

$

In Stock, Qty 20+

0

57

Husqvarna 532155377

Nut, Hex

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532426072

Lower Handle
(Superseded to 501263201)

$28.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532191574

Handle Bolt

$6.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532425711

Belt Retainer

$

$

Not available

64

Engine, Honda, Model Number GCV160-LAS3A

Note: (For engine service and replacement parts, call Honda Engines at 1-800-426-7701)

$

$

Not available

70

Husqvarna 532182748

Grip, Foam

$

$

Not available

83

Husqvarna 532750097

Screw, Hex Washer Head
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

84

Husqvarna 532428124

Fastener, Push

$6.49

$

In Stock, only 2 left!

0

85

Husqvarna 532434530

Mounting Bracket, Rear Skirt

$6.49

$

In Stock, Qty 13

0

96

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

97

Husqvarna 532434893

Belt Keeper
(Superseded to 580606902)

$

$

Not available

Husqvarna 532432262

Operator's Manual, English / French

$

$

Currently unavailable
