8522 RLS (961430065-00) - Husqvarna 22" Walk-Behind Mower (2010-02) Drive Parts Diagram

22" Walk-Behind Mower

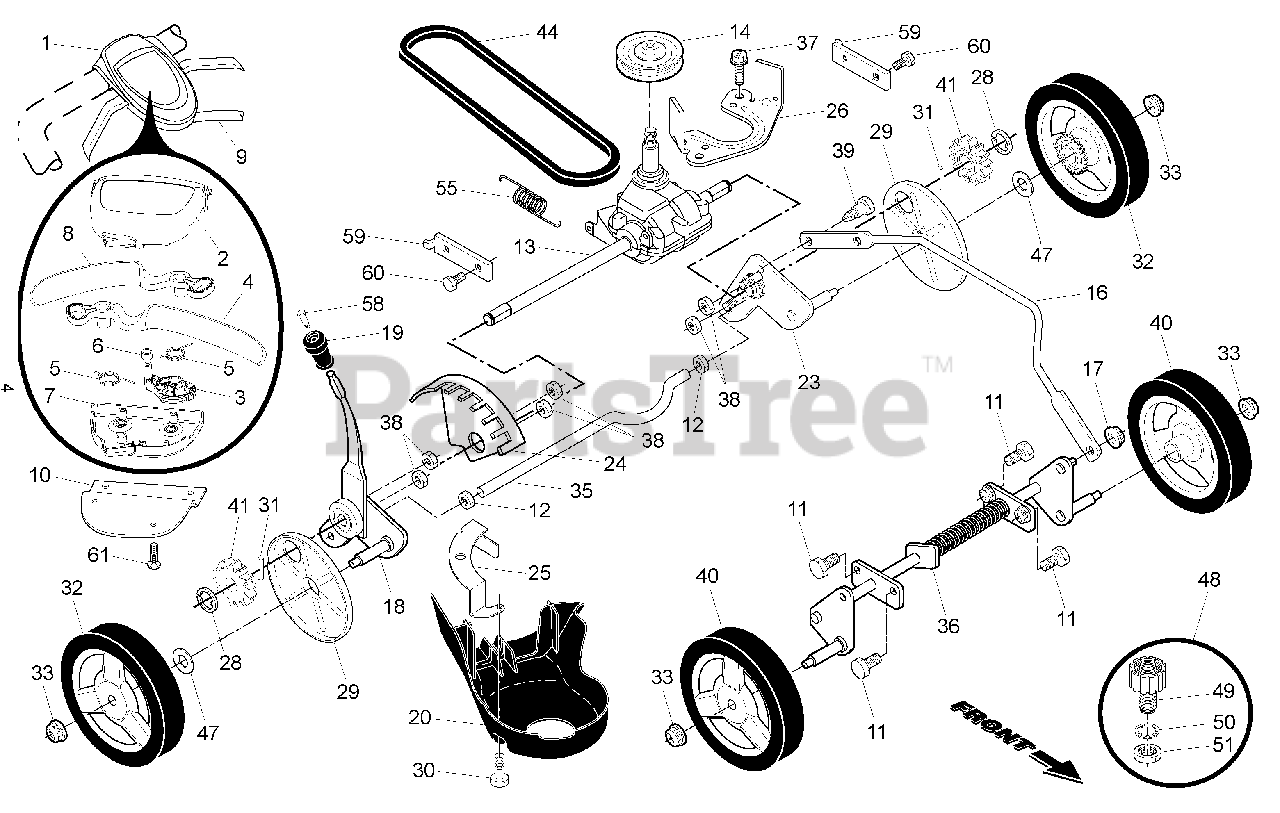

Drive Parts Diagram

  • Title

1

Husqvarna 532430995

Drive Control Assembly
(Superseded to 589818808)

Note: (Includes Cable)

$47.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532431638

Cover, Top

$

$

Not available

3

Husqvarna 532432286

Cam

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532433087

Lever, Drive Control, LH

$

$

Not available

5

Husqvarna 532420381

Spring, Return

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532432273

Bushing

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532433057

Cover, Bottom

$

$

Not available

8

Husqvarna 532432977

Lever, Drive Control, RH

$

$

Not available

9

Husqvarna 532431650

Cable, Drive

$43.99

$

In Stock, Qty 8

0

10

Husqvarna 532432790

Mounting Bracket, Drive Control

$

$

Not available

11

Husqvarna 817060408

Screw

$5.99

$

In Stock, only 2 left!

0

12

Husqvarna 532426103

Nut, Hex

$

$

Currently unavailable

13

Husqvarna 532432738

Gear Case Assembly, Complete
(Superseded to 532430787)

$109.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532194128

Pulley, Drive

$20.99

$

In Stock, Qty 10

0

16

Husqvarna 532430030

Rod, Connecting

$20.99

$

In Stock, only 1 left!

0

17

Husqvarna 532751153

Nut, Hex

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 532432431

Selector Assembly
(Superseded to 583509001)

$60.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532433996

Knob, Wheel Adjuster

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532427308

Debris Shield
(Superseded to 580806901)

$31.99

$

In Stock, only 1 left!

0

23

Husqvarna 532432432

Wheel Axle Assembly, LH

$

$

Currently unavailable

24

Husqvarna 532433511

Bracket, Height Adjustment

$15.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532426065

Mounting Bracket, Debris Shield

$

$

Not available

26

Husqvarna 532426066

Belt Keeper
(Superseded to 589318302)

$

$

Not available

28

Husqvarna 812000058

E-Ring 7/16

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532189403

Cover, Dust, Wheel
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 532428867

Bolt

$6.49

$

In Stock, only 2 left!

0

31

Husqvarna 532404845

Pawl, Drive

$5.99

$

In Stock, only 3 left!

0

32

Husqvarna 532413105

Wheel & Tire Assembly, Rear
(Superseded to 581685101)

$28.99

$

In Stock, only 2 left!

0

33

Husqvarna 532409148

Nut, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532430598

Axle, Rear

$45.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532426208

Axle, Front
(Superseded to 532441541)

$

$

Not available

37

Husqvarna 532163409

Screw, Hi-Lo Thread, 12 x 5/8

$7.49

$

In Stock, Qty 8

0

38

Husqvarna 532191730

Nut, Hex

$7.49

$

In Stock, Qty 5

0

39

Husqvarna 532407059

Bolt

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 532410831

Wheel & Tire Assembly, Front
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

41

Husqvarna 532404835

Pinion

$6.99

$

In Stock, Qty 7

0

44

Husqvarna 532421527

Belt, Drive

$26.99

$

In Stock, only 1 left!

0

47

Husqvarna 532067725

Washer, Flat

$7.49

$

In Stock, Qty 20+

0

48

Husqvarna 532421114

Kit, Water Washout Assembly

$24.99

$

In Stock, only 2 left!

0

49

Husqvarna 532419735

Fitting, Water Washout
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

50

Husqvarna 532415585

Washer, Lock, Internal Tooth

$4.99

$

In Stock, only 2 left!

0

51

Husqvarna 532415586

Locknut, Hex, with O-Ring

$6.49

$

In Stock, only 4 left!

0

55

Husqvarna 532406558

Spring, Tension

$8.99

$

In Stock, Qty 7

0

58

Husqvarna 532428867

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

59

Husqvarna 532434460

Support Bracket

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532428867

Bolt, Hex Head

$6.49

$

In Stock, only 2 left!

0

61

Husqvarna 532181698

Screw

$7.49

$

In Stock, Qty 6

0
