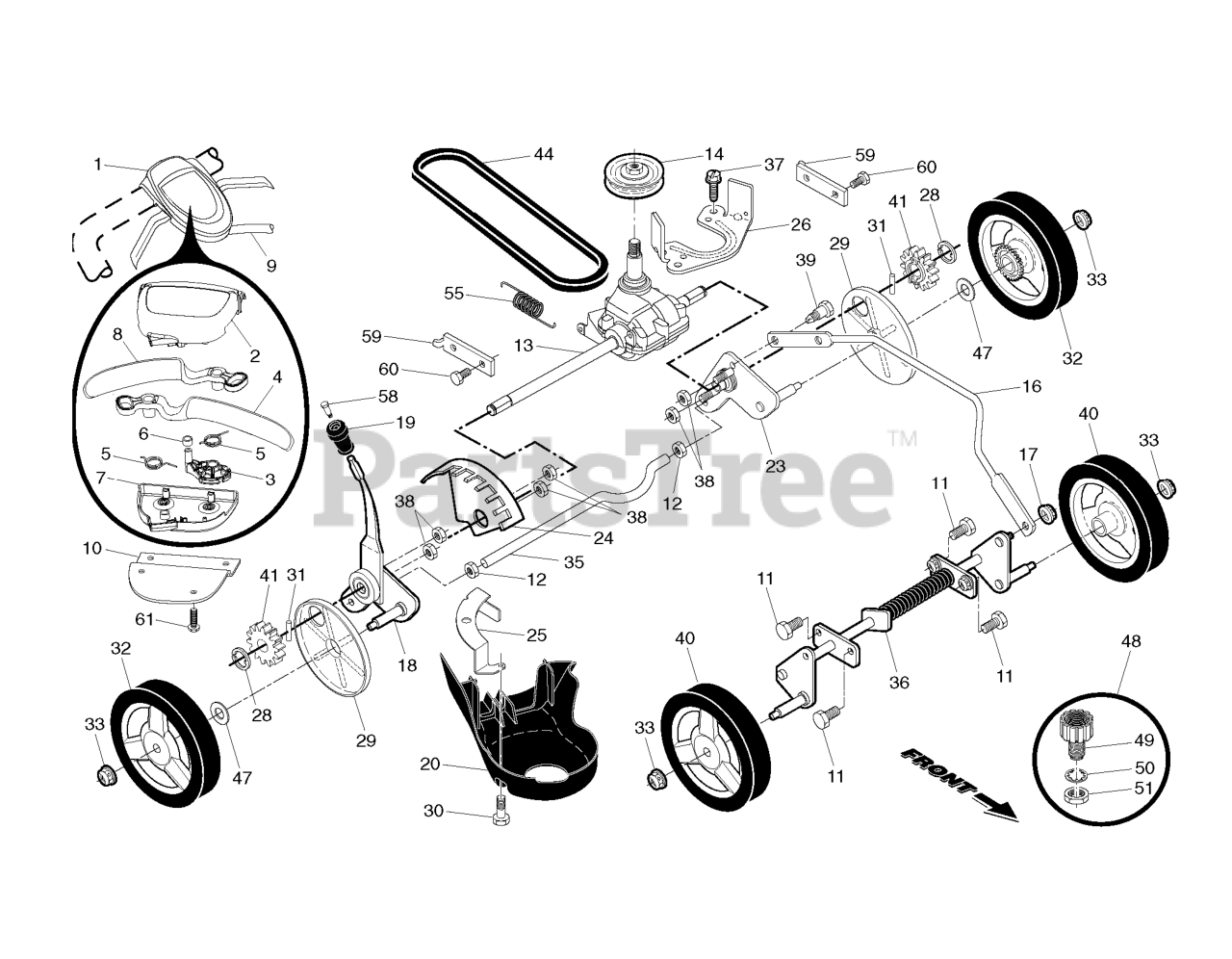

8522 RLS (961430065-00) - Husqvarna 22" Walk-Behind Mower (2010-01) DRIVE Parts Diagram

22" Walk-Behind Mower

DRIVE Parts Diagram

  • Title

58

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

18

Husqvarna 532432431

SELECTOR.ASM.22+.RT.SPT LW RGD
(Superseded to 583509001)

$60.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

$

$

Not available

4

Husqvarna 532433087

LEVER.CONTROL.LH.22+.CURVE.BLA

Note: LH

$

$

Not available

36

Husqvarna 532426208

AXLE.ASM.FRONT.RGD.BZP
(Superseded to 532441541)

$

$

Not available

44

Husqvarna 532421527

BELT.DRIVE.RGD.PLUS

$26.99

$

In Stock, only 1 left!

0

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 532432273

BUSHING.CONTROL.CAM

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

23

Husqvarna 532432432

Wheel Axle Assembly, LH

Note: LH

$

$

Currently unavailable

25

Husqvarna 532426065

BRACKET.DRIVE.COVER.RGD.BZP

$

$

Not available

12

Husqvarna 532426103

Nut, Hex

$

$

Currently unavailable

19

Husqvarna 532433996

KNOB.SEL.SPRING.22+.SP.RIB.BLK

$6.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

48

Husqvarna 532421114

KIT.WASH-OUT.PORT

$24.99

$

In Stock, only 2 left!

0

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

3

Husqvarna 532432286

CAM.GEN2.DUAL.TRIGGER

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 532420381

SPRING, DRIVE CONTROL

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

13

Husqvarna 532432738

TRANMISSION.22+.RGD.AW
(Superseded to 532430787)

$109.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532194128

PULLEY

$20.99

$

In Stock, Qty 10

0

17

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 532430030

ROD.CONNECTING.RGD.22+.HW.BLAC

$20.99

$

In Stock, only 1 left!

0

24

Husqvarna 532433511

BRACKET.WHL.ADJ.9.POS.W/PAD

$15.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

29

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

8

Husqvarna 532432977

LEVER.CONTROL.RH.22+.CURV.BLAC

Note: RH

$

$

Not available

60

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

1

Husqvarna 532430995

RB CTRL.AW2.22+RGD.BS.GRY/BLK
(Superseded to 589818808)

$47.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532413105

WHEEL & TIRE ASSY, REAR
(Superseded to 581685101)

$28.99

$

In Stock, only 2 left!

0

11

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

47

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

41

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532431638

RP CASE.CONT.ROL.TOP.HUSQV.

$

$

Not available

20

Husqvarna 532427308

COVER.BELT.22.RGD
(Superseded to 580806901)

$31.99

$

In Stock, only 1 left!

0

59

Husqvarna 532434460

BRACKET.SUPPORT.22+.RWGD.BZP

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532433057

COVER.DR.CONTROL.LOWER.GRAY

$

$

Not available

9

Husqvarna 532431650

CABLE.CONTROL.22RGD.GEN2

$43.99

$

In Stock, Qty 8

0

35

Husqvarna 532430598

AXLE.REAR.RGD

$45.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

37

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0
